Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Genesis MjÖlnir Seamless Double-Butted Cromoly
Suspension Fork
Carbon Road Disc w/ 1-1/2" - 1-1/8" Tapered Steerer w/ 12mm TA
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700 / SS cage
Front Derailleur
Shimano Tiagra FC-4700 / 52-36T / XS, 170mm / S-M, 172.5mm / L-XL, 175mm
Shift Levers
Shimano Tiagra ST-4700 / 2x10 speed
Cassette
Shimano CS-HG500-10 / 12-28T
Crank
Shimano Tiagra FC-4700 / 52-36T / XS, 170mm / S-M, 172.5mm / L-XL, 175mm
Bottom Bracket
Shimano BB-RS500
Chain
KMC x10
Wheels
Front Hub
Formula RX-812/RX-300 28h / front 12mm TA / rear 12mm TA / 6-bolt
Rear Hub
Formula RX-812/RX-300 28h / front 12mm TA / rear 12mm TA / 6-bolt
Rims
Genesis SR220 / 28h
Spokes
Stainless steel 14g
Tires
Clement Strada LGG 700x28c 60TPI
Brakes
Brakes
TRP Spyre-C 2-piston mechanical disc brake w/160/140mm TR160 rotors
Brake Levers
Shimano Tiagra ST-4700
Cockpit
Stem
Genesis Code 7 / -7deg / XS, 90mm / S-M, 100mm / L-XL, 110mm
Handlebar
Genesis AL-194 / 125mm drop x 80mm reach / XS, 400mm / S-M, 420mm / L-XL, 440mm
Headset
Prestine PT-1806-616 1-1/8" - 1-1/2" tapered
Seat
Saddle
Genesis Road Comfort
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.52 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 581 mm | 591 mm | 594 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 66 mm | 57 mm | 57 mm | 57 mm |
| Stack | 537 mm | 551 mm | 576 mm | 591 mm | 610 mm |
| Reach | 357 mm | 367 mm | 378 mm | 387 mm | 397 mm |
| Top Tube Length | 514 mm | 532 mm | 551 mm | 570 mm | 592 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 73 ° | 72 ° | 72 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 992 mm | 995 mm | 1011 mm | 1027 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 741 mm | 765 mm | 807 mm | 818 mm | 891 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

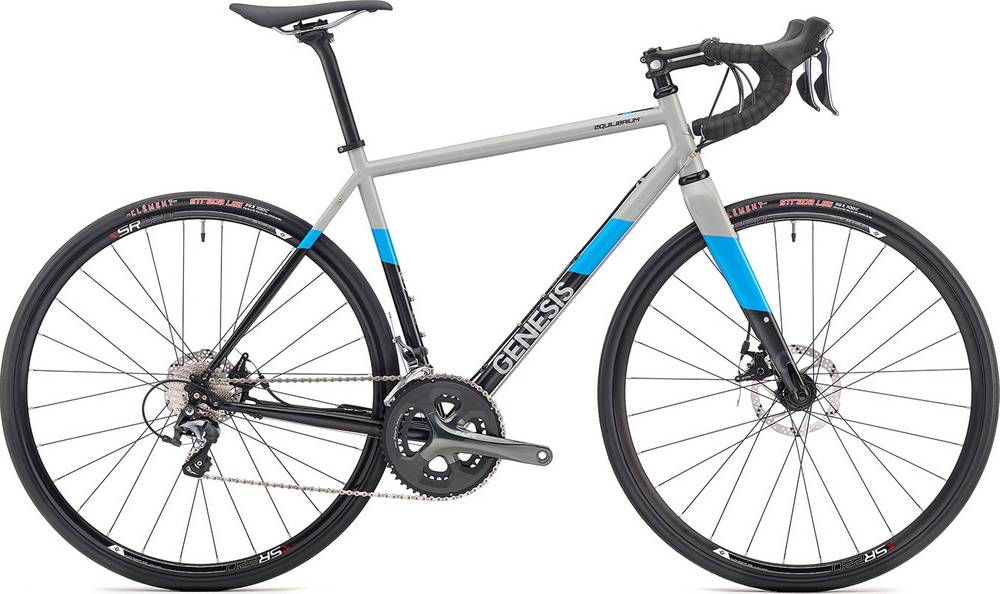

Equilibrium Disc 10 is a Genesis Equilibrium model. 29 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Genesis Equilibrium 2018 is the most affordable bike of this model and has a price of 1702$. On the other hand, Genesis Equilibrium Disc 20 2018, is the most expensive and costs 2432$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Genesis Equilibrium Disc 10 price was 1823$. Comparing this to the average Endurance bike price, we see that the price is 28.69% lower.
Equilibrium Disc 10 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Genesis Equilibrium Disc 10 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Equilibrium Disc 10 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
