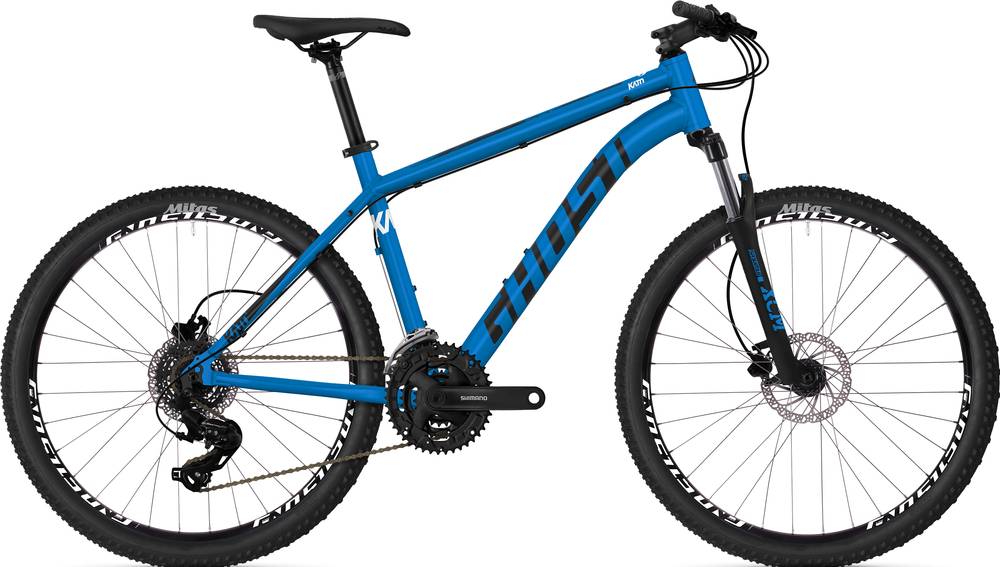

Ghost KATO 1.6 AL U 2020
2020 Mountain
Estimate price |
549$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO AL
Suspension Fork
SR Suntour SF15 XCM HLO DS 100 mm
Rear Shock
-
Drivetrain
Rear Derailleur
Shimano Tourney TX RD-TX800 8-S
Front Derailleur
Shimano Tourney FD-TY700-TS6
Cassette
Sunrace CSM400 12-32
Crank
Shimano FC-TY301 42-34-24
Wheels
Front Hub
Shimano HB-TX505 QR
Rear Hub
Shimano FH-TX505 QR
Rims
Rodi Excalibur XC 559x19 mm 32H
Tires
Mitas Ocelot 26 x 2.10
Brakes
Brakes
Shimano BR-MT200 2/2 Piston 160 mm Disc
Cockpit
Stem
XLC MTB Dia. 31.8 mm
Handlebar
XLC 700 mm Rise 15 mm Dia. 31.8 mm
Headset
14106
Seat
Saddle
DDK 2373A
Seatpost
GHOST SP-DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.481 mm | 1.469 mm | 1.434 mm | 1.477 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 617 mm | 627 mm | 637 mm | 647 mm | 657 mm |
| Rake | 1113 mm | 781 mm | 168 mm | -128 mm | -1054 mm |
| Trail | 1309 mm | 706 mm | -197 mm | -1317 mm | 2327 mm |
| Stack | 575 mm | 585 mm | 595 mm | 595 mm | 613 mm |
| Reach | 390 mm | 395 mm | 405 mm | 415 mm | 415 mm |
| Top Tube Length | 560 mm | 570 mm | 580 mm | 595 mm | 603 mm |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 135 mm | 135 mm |
| Wheelbase | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 340 mm | 380 mm | 420 mm | 460 mm | 500 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model
KATO 1.6 AL U belongs to the Ghost Kato model. Ghost released 96 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Ghost KATO 2.0 AL U 2020 is the most affordable bike of this model and has a price of 371$. On the other hand, Ghost Kato FS 3.7 AL U 2020, is the most expensive and costs 1698$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 509$. Doing a quick comparison, we notice that KATO 1.6 AL U price is 274.26% smaller than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.1 kg (33.29 lbs), the KATO 1.6 AL U model is much heavier than average. In conclusion, the average Crosscountry bike weighs 21.77% less than KATO 1.6 AL U.
Overview of components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the KATO 1.6 AL U model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KATO 1.6 AL U comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
