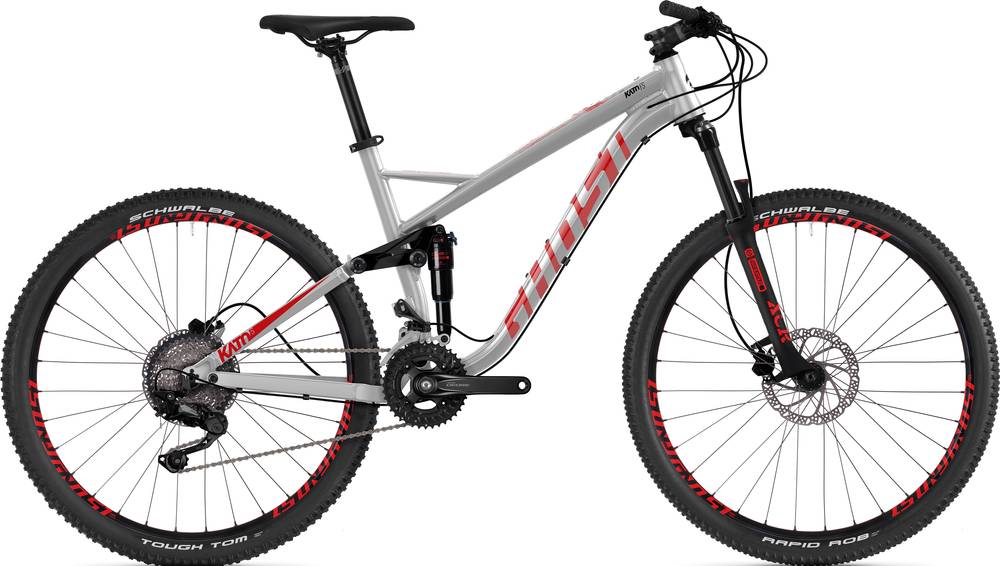

Ghost Kato FS 2.7 AL U 2020
2020 Mountain
Estimate price |
1,511$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KATO FS AL
Suspension Fork
SR Suntour XCR 34 LOR 130 mm
Rear Shock
SR Suntour DUAIR 130 mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000 Shadow Plus 10-S
Front Derailleur
Shimano Deore FD-M6020 Side Swing
Cassette
Shimano CS-HG500-10 11-42
Crank
Shimano Deore FC-M6000 Hollowtech II 34-24
Wheels
Front Hub
Formula DC-511 15 x 110 mm
Rear Hub
Formula DC 22 QR
Rims
Rodi Excalibur XC 584x19 mm 32H
Tires
Schwalbe Tough Tom K-Guard 27.5 x 2.25
Brakes
Brakes
Tektro HD-M285 2/2 Piston 180 mm Disc
Cockpit
Stem
GHOST MTB Dia. 31.8 mm
Handlebar
GHOST Low Rizer MTB 760 mm Rise 15 mm Dia. 31.8 mm
Headset
16012
Seat
Saddle
Selle Italia X-Base
Seatpost
GHOST SP-DC1 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.29 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 684 mm | 711 mm | 736 mm | 752 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 590 mm | 600 mm | 609 mm | 618 mm |
| Reach | 421 mm | 443 mm | 465 mm | 478 mm |
| Top Tube Length | 578 mm | 603 mm | 628 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1117 mm | 1144 mm | 1169 mm | 1185 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 703 mm | 748 mm | 758 mm | 788 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Kato FS 2.7 AL U is part of the Ghost Kato model. There are 96 bikes that carry this model name. Take a sneak peek at all Ghost Kato bikes models from 2020, by clicking here.
Model range prices
Ghost KATO 2.0 AL U 2020 is the most economical model, with a starting price of 371$. Ghost Kato FS 3.7 AL U 2020 on the other hand costs 1698$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 1379$. If we compare this with the average Trail bike cost we notice that the price is 100.29% smaller.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.6 kg (32.19 lbs), Ghost bike is considerably heavier than average. In conclusion, the average Trail bike weighs 12.48% less than Kato FS 2.7 AL U.
Overview of components
Fork
This bike has the SunTour XCR 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Kato FS 2.7 AL U has a rear shock with a travel of 130mm. The model SR Suntour DUAIR 130 mm is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Kato FS 2.7 AL U model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kato FS 2.7 AL U has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
