Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" / 650b -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XXS
152cm - 158cm
XS
156cm - 163cm
SM
161cm - 171cm
MD
169cm - 176cm
LG
174cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum
Suspension Fork
SR Suntour XCE 26/27.5, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41, 3x7
Cassette
Shimano TZ500, 14-34, 7-Speed
Crank
ProWheel forged, 24/34/42
Bottom Bracket
cartridge
Chain
KMC Z51
Pedals
N/A
Wheels
Front Hub
Joytech S01 alloy thread type, sealed ball bearing, 32H
Rear Hub
Joytech S01 alloy thread type, sealed ball bearing, 32H
Rims
Giant CH17 26/27.5, 6061 aluminum
Spokes
stainless, 14G
Tires
Giant Quickcross 27.5x2.1/26x2.1
Brakes
Brakes
MTB alloy linear pull
Brake Levers
Shimano EF41
Cockpit
Stem
Giant Sport alloy, 15-degree
Handlebar
Giant Sport, 25.4, alloy
Seat
Saddle
Giant Connect (upright)
Seatpost
Giant Sport, 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.44 mm | 1.46 mm | 1.5 mm | 1.51 mm |
| Front Center | 647 mm | 658 mm | 650 | 661 mm | 684 mm | 706 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 557 mm | 566 mm | 582 mm | 596 mm | 629 mm | 652 mm |
| Reach | 391 mm | 399 mm | 404 mm | 409 mm | 419 mm | 432 mm |
| Top Tube Length | 556 mm | 566 mm | 576 mm | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 385 mm | 420 mm | 455 mm | 505 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 95 mm | 110 mm | 145 mm | 170 mm |
| Chainstay Length | 421 mm | 421 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1066 mm | 1077 mm | 1081 mm | 1092 mm | 1115 mm | 1137 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 689 mm | 711 mm | 722 mm | 748 mm | 790 mm | 815 mm |
| Wheels | 26" | 26" | 650 | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 156 cm | 161 cm | 169 cm | 174 cm | 184 cm |
| Rider Max Height | 158 cm | 163 cm | 171 cm | 176 cm | 186 cm | 193 cm |

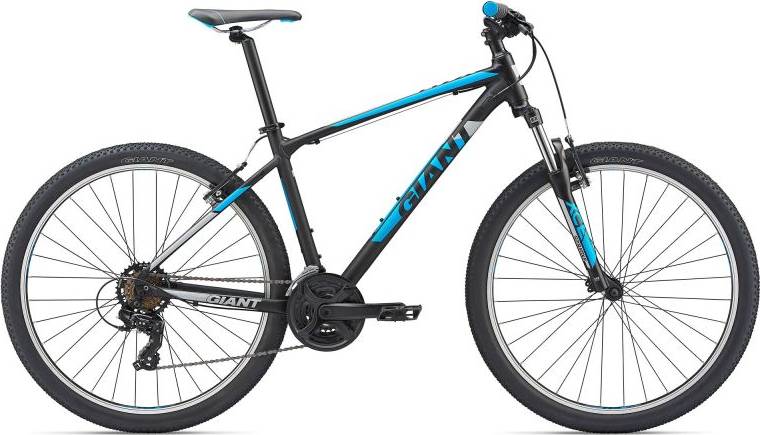

About this model
ATX 3 belongs to the Giant Atx model. Giant released 16 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Giant ATX 3 2019 has a starting price of 410$. Giant ATX 2 2019 on the other hand is the most expensive at 475$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2019, its price was 410$. Doing a quick comparison, we notice that ATX 3 price is 85.85% smaller than the average cost of a Commuter bike.
ATX 3 components
Fork
Giant ATX 3 2019 bike is equipped with the SunTour fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The ATX 3 2019 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant ATX 3 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 193 cm (4.99 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
