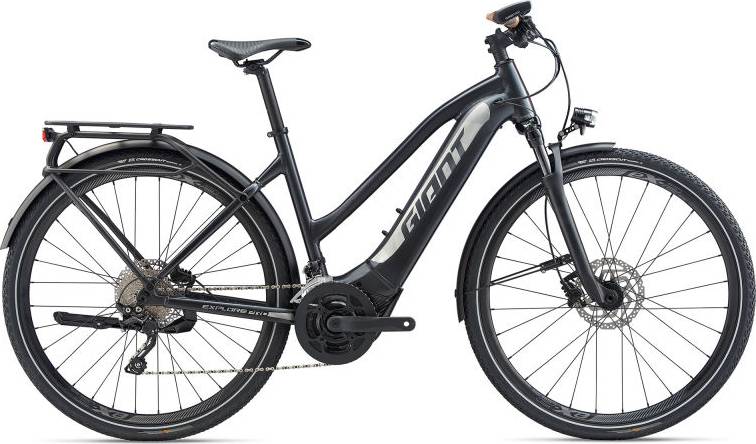

Giant Explore E+ 1 Pro Stagger Frame Electric Bike 2020
2020 E-bike
Estimate price |
4,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 80Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST VIVAir E, 700c x15, 60mm travel, tappered steerer, hydraulic lockout, 15x100 axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10, 11-36T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 36/48T
Bottom Bracket
N/A
Chain
KMC e.10 Sport, e-bike optimized
Pedals
N/A
Wheels
Front Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Rear Hub
Giant eTracker, sealed cartridge bearings [F] 15mm Thru-Axle [R] 142x12 Thru-axle
Spokes
Sapim E-Lite [r] Race [f], e-bike optimized
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
Brakes
Brakes
Shimano BR-MT500, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT500, i-spec II
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo GTS/WMN
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
Battery
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
Remote
Giant RideControl EVO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.57 mm |
| Front Center | 664 mm | 673 mm |
| Rake | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm |
| Stack | 592 mm | 606 mm |
| Reach | 381 mm | 386 mm |
| Top Tube Length | 571 mm | 591 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 683 mm | 677 mm |
| Wheels | 700 | 700 |
Model Overview
Explore E+ 1 Pro Stagger Frame Electric Bike is part of the Giant E Explore model. There are 72 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Giant Explore E+ 4 Electric Bike 2020 has a starting price of 2432$. Giant Explore E+ 1 Pro Stagger Frame Electric Bike 2020 on the other hand is the most expensive at 3891$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Explore E+ 1 Pro Stagger Frame Electric Bike price was 3891$. Doing a quick comparison, we notice that Explore E+ 1 Pro Stagger Frame Electric Bike price is 56.9% more expensive than the average cost of a Hybrid e-bike.
Explore E+ 1 Pro Stagger Frame Electric Bike components
Fork
This e-bike has the RST fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Explore E+ 1 Pro Stagger Frame Electric Bike are the 700c type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
