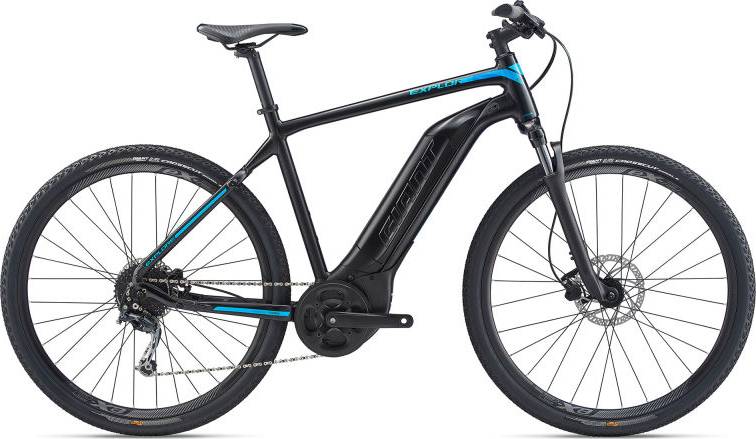

Giant Explore E+ 4 Electric Bike 2020
2020 E-bike
Estimate price |
2,675$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Yamaha 70Nm hub-drive -
Battery Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum, Overdrive 1½ - 1?" head tube, integrated KS18 kickstand mount
Suspension Fork
RST Volant T coil, 60mm travel, tappered steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
-
Shift Levers
Shimano SL-M2000
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
N/A
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rims
Giant eX 2, Tubeless Ready, 700c aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready W/O Reflex
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 160/180mm
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect XC Riser 31.8x690mm
Seat
Saddle
Selle Royal Vivo GTS/WMN
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, automatic support, 5-mode, 50-350% tunable support, 70Nm, powered by YAMAHA
Battery
Giant EnergyPak 400, 36V 11.3Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.55 mm | 1.52 mm | 1.5 mm |
| Front Center | 664 mm | 673 mm | 694 mm | 714 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 91.3 mm | 91.3 mm | 91.3 mm | 91.3 mm |
| Stack | 611 mm | 620 mm | 634 mm | 649 mm |
| Reach | 396 mm | 401 mm | 417 mm | 433 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 776 mm | 809 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Explore E+ 4 Electric Bike is part of the Giant E Explore model. There are 72 e-bikes that carry this model name. Take a sneak peek at all Giant E Explore e-bikes models from 2020, by clicking here.
Model range prices
Giant Explore E+ 4 Electric Bike 2020 is the most affordable e-bike of this model and has a price of 2432$. On the other hand, Giant Explore E+ 1 Pro Stagger Frame Electric Bike 2020, is the most expensive and costs 3891$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2020 and its price was 2432$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Explore E+ 4 Electric Bike price is 1.97% smaller.
Explore E+ 4 Electric Bike components
Fork
The fork installed on this bike is the RST model. The travel on this model is 60mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Explore E+ 4 Electric Bike e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Explore E+ 4 Electric Bike has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
