Giant Explore E+, 2 STA 2023
2023 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery EnergyPak Smart 625, Energy Pak Plus 250 range extender compatible -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Suspension Fork
SR Suntour XCM34, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Alivio, 9-speed
Front Derailleur
n/a
Shift Levers
Shimano Altus
Cassette
Shimano CS-HG200, 11-36T, 9-speed
Crank
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Bottom Bracket
n/a
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 110x15 [R] 142x12
Rear Hub
Giant eTracker, [F] 110x15 [R] 142x12
Rims
eX25, Tubeless Ready, 622x25 Aluminium
Spokes
Stainless steel
Tires
Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 180mm
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contact (S/M: 80mm L/XL/XXL 100mm)
Handlebar
Giant Connect Riser 31.8x690mm
Grips
Giant Contact
Seat
Saddle
Selle Royal Vivo Ergo Moderate
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor

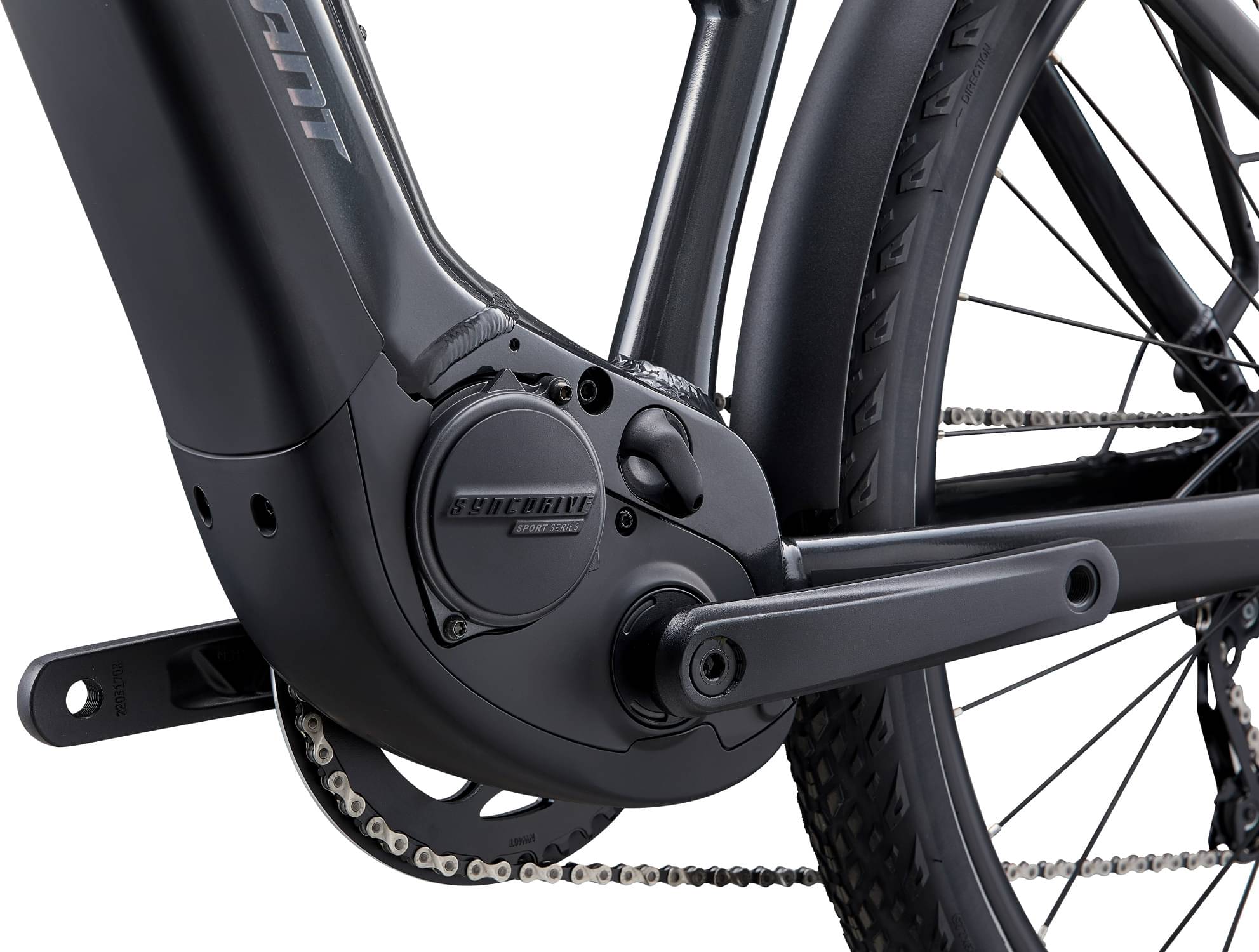

SyncDrive Sport 2, 75Nm, powered by Yamaha
Battery
EnergyPak Smart 625, Energy Pak Plus 250 range extender compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.73 mm | 1.77 mm | 1.73 mm |
| Front Center | 699 mm | 687 mm | 692 mm | 713 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 84 mm | 84 mm | 84 mm |
| Stack | 658 mm | 675 mm | 689 mm | 703 mm |
| Reach | 387 mm | 391 mm | 390 mm | 406 mm |
| Top Tube Length | 578 mm | 593 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 435 mm | 490 mm | 545 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 448 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1140 mm | 1144 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 675 mm | 663 mm | 643 mm | 642 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
About this model
Explore E+, 2 STA is a Giant E Explore model. There are 72 e-bikes that carry this model name. Take a sneak peek at all Giant E Explore e-bikes models from 2023, by clicking here.
Model range prices
Giant Explore E+, 3 STA 2023 is the most affordable e-bike of this model and has a price of 2819$. On the other hand, Giant Explore E+, Pro 0 STA 2023, is the most expensive and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 3503$. In conclusion, this e-bike price is 41.25% higher than the price of the average Hybrid e-bike.
Explore E+, 2 STA components
Fork

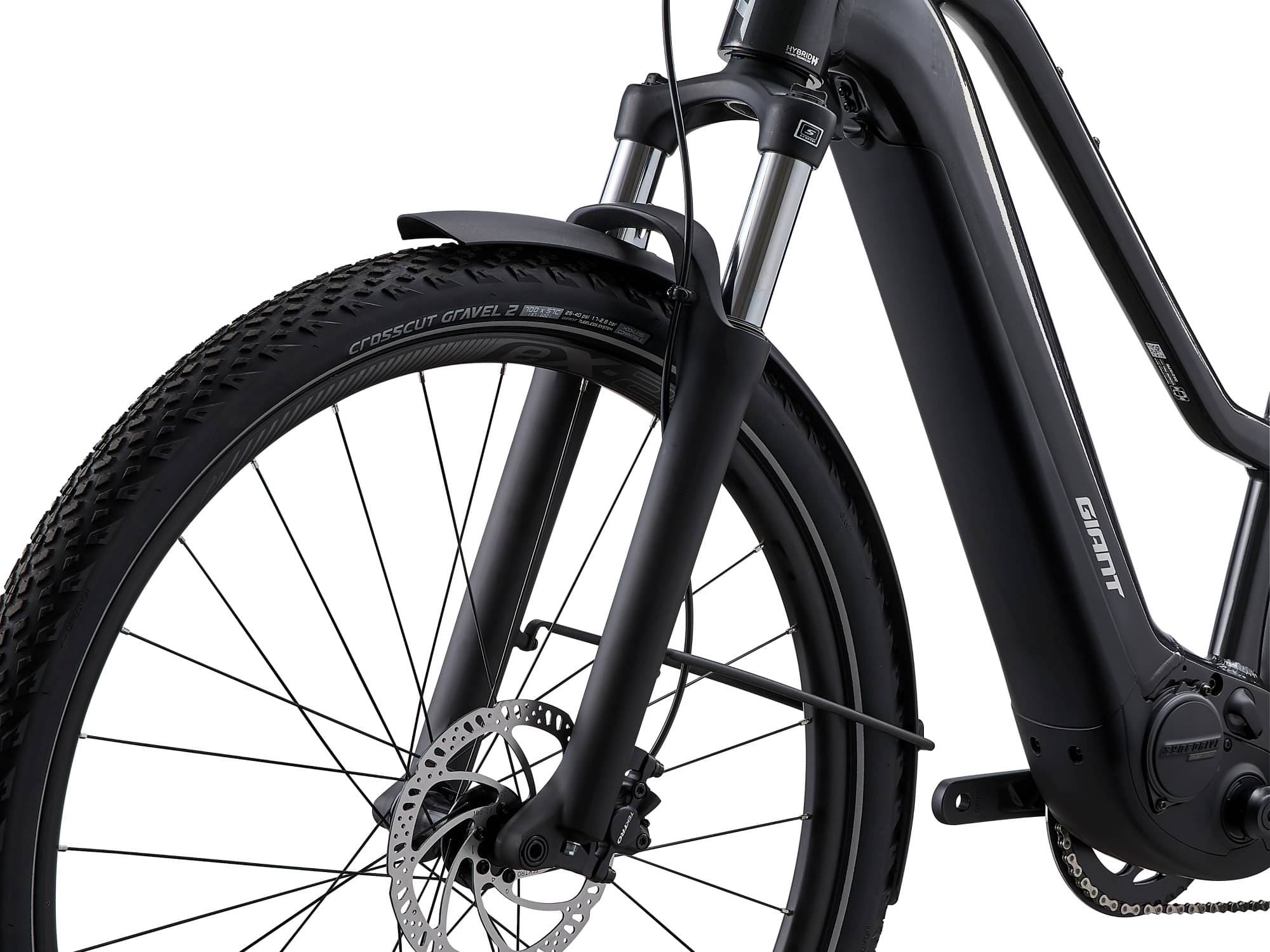

The Explore E+, 2 STA comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Explore E+, 2 STA 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Explore E+, 2 STA comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Explore E+, 2 STA comes in 4 sizes, that range from 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
