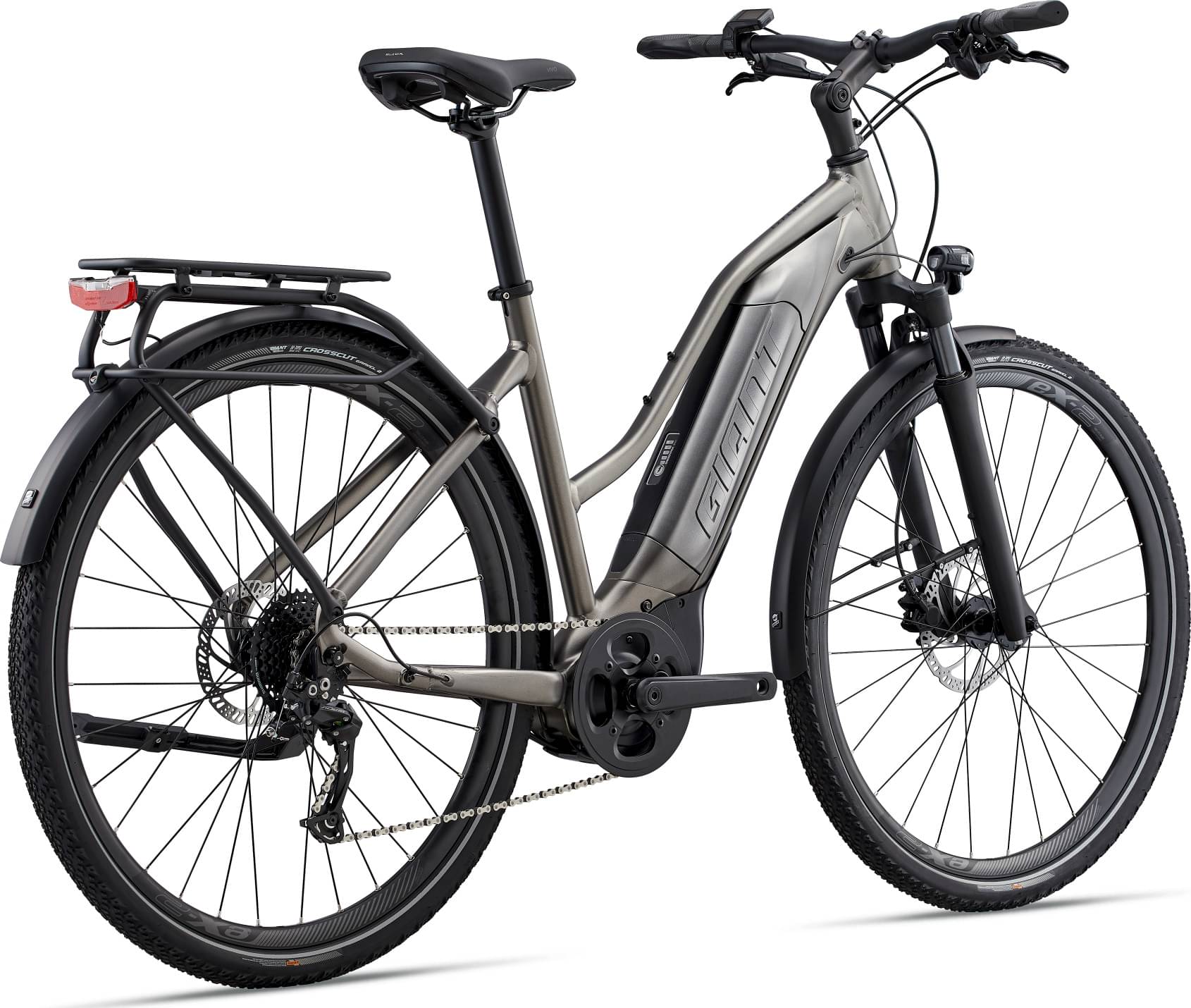

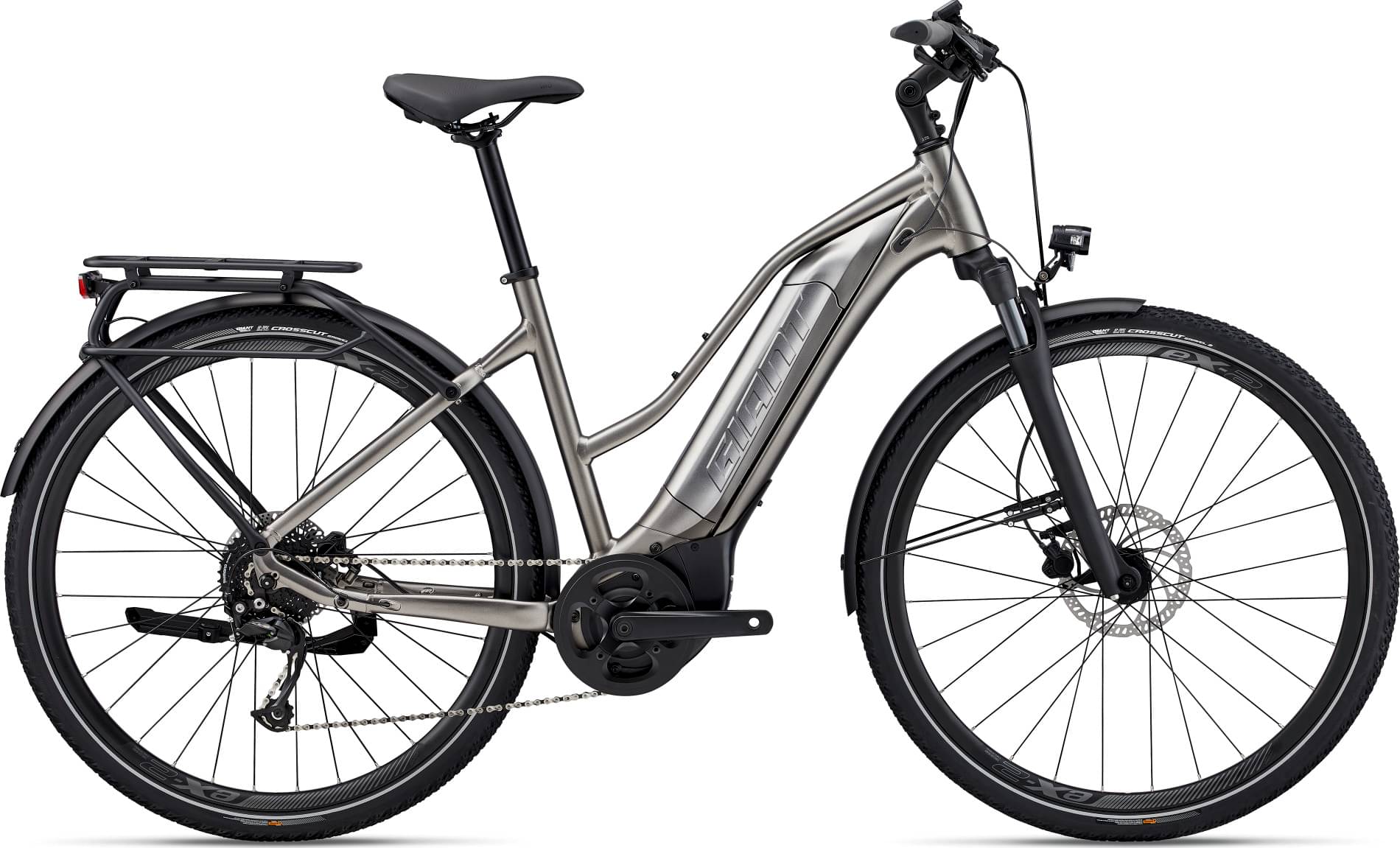

Giant Explore E+ 3, Step-Thru 2023
2023 E-bike
Estimate price |
2,787$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Altus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery EnergyPak 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1½ - 1?" head tube, integrated KS18A kickstand mount
Suspension Fork
SR Suntour NEX DS 63mm travel
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Alivio, 9-speed
Front Derailleur
n/a
Shift Levers
Shimano Altus
Cassette
Shimano CS-HG200, 11-36T, 9-Speed
Crank
Forged Alloy minimal Q-factor, 42T
Bottom Bracket
n/a
Chain
KMC e.9 Sport, e-bike optimized
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rear Hub
Giant eTracker, [F] 100x9mm QR [R] 135mm QR
Rims
Giant eX 2, Tubeless Ready, 622x21 aluminium
Spokes
Stainless steel
Tires
Giant Crosscut Gravel 2, 700x50c, Tubeless Ready
Brakes
Brakes
Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R]
Brake Levers
Tektro HD-M275
Cockpit
Stem
Giant Contour TDS 816-8FOV (S/M:80mm L/XL/XXL 100mm)
Handlebar
Giant Connect Riser 31.8x690mm
Grips
Giant Contact
Seat
Saddle
Selle Royal Vivo Ergo Moderate
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
SyncDrive Sport, 70Nm, powered by Yamaha
Battery
EnergyPak 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.54 mm | 1.52 mm |
| Front Center | 664 mm | 673 mm | 694 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 610 mm | 619 mm | 634 mm |
| Reach | 384 mm | 402 mm | 417 mm |
| Top Tube Length | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1113 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 612 mm | 597 mm | 570 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 176 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm |
Model Overview
Explore E+ 3, Step-Thru completes the Giant E Explore model. Giant launched 72 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Giant Explore E+, 3 STA 2023 has a starting price of 2819$. Giant Explore E+, Pro 0 STA 2023 on the other hand is the most expensive at 5308$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 2819$. Doing a quick comparison, we notice that Explore E+ 3, Step-Thru price is 13.67% more expensive than the average cost of a Hybrid e-bike.
Explore E+ 3, Step-Thru components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Giant Explore E+ 3, Step-Thru 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Giant Explore E+ 3, Step-Thru e-bike has 3 sizes, in the range of 162 cm – 186 cm (5.31 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
