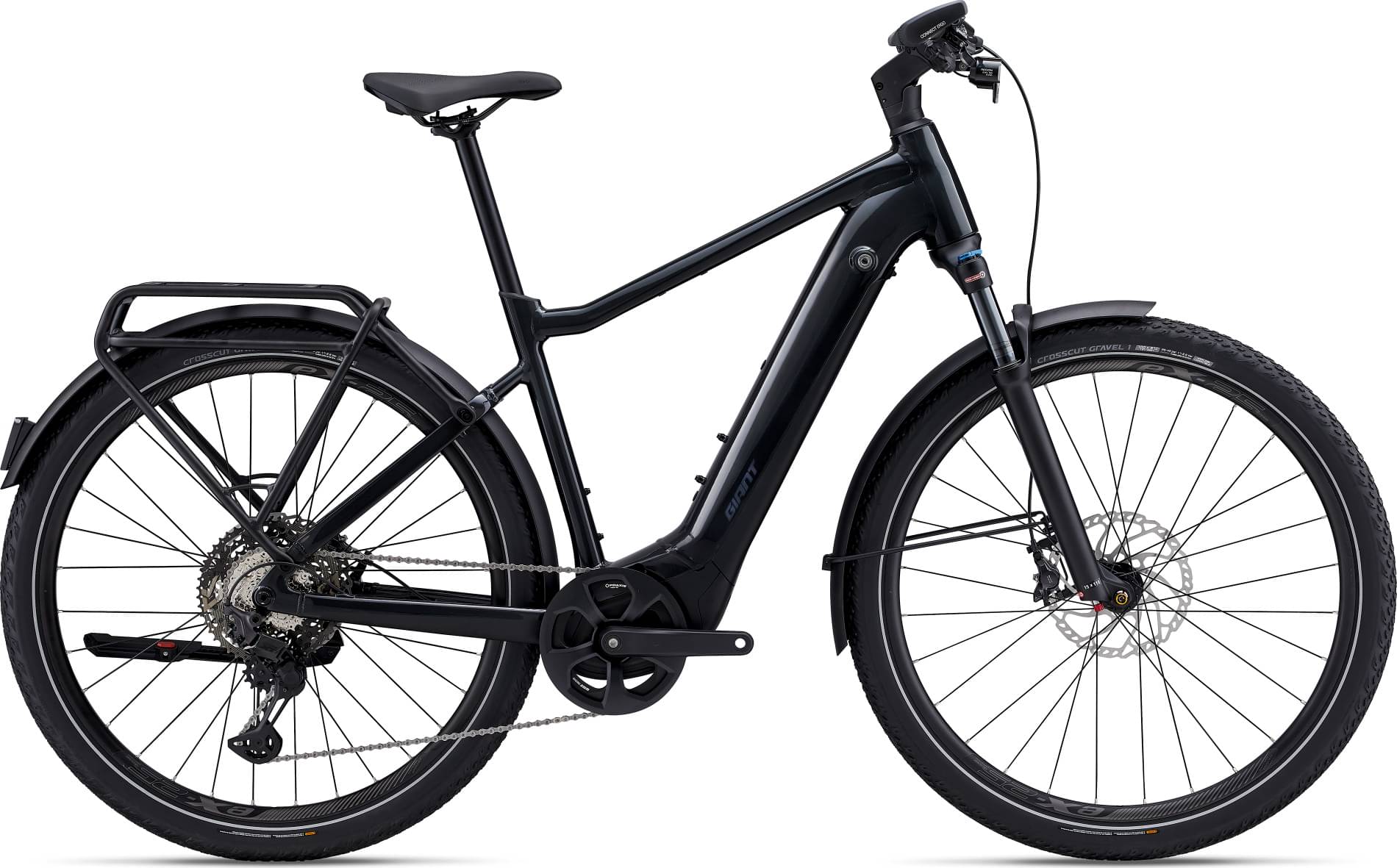

Giant Explore E+ Pro 0, GTS 2023
2023 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), Giant EnergyPak Plus 250 range extender compatible -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
XXL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

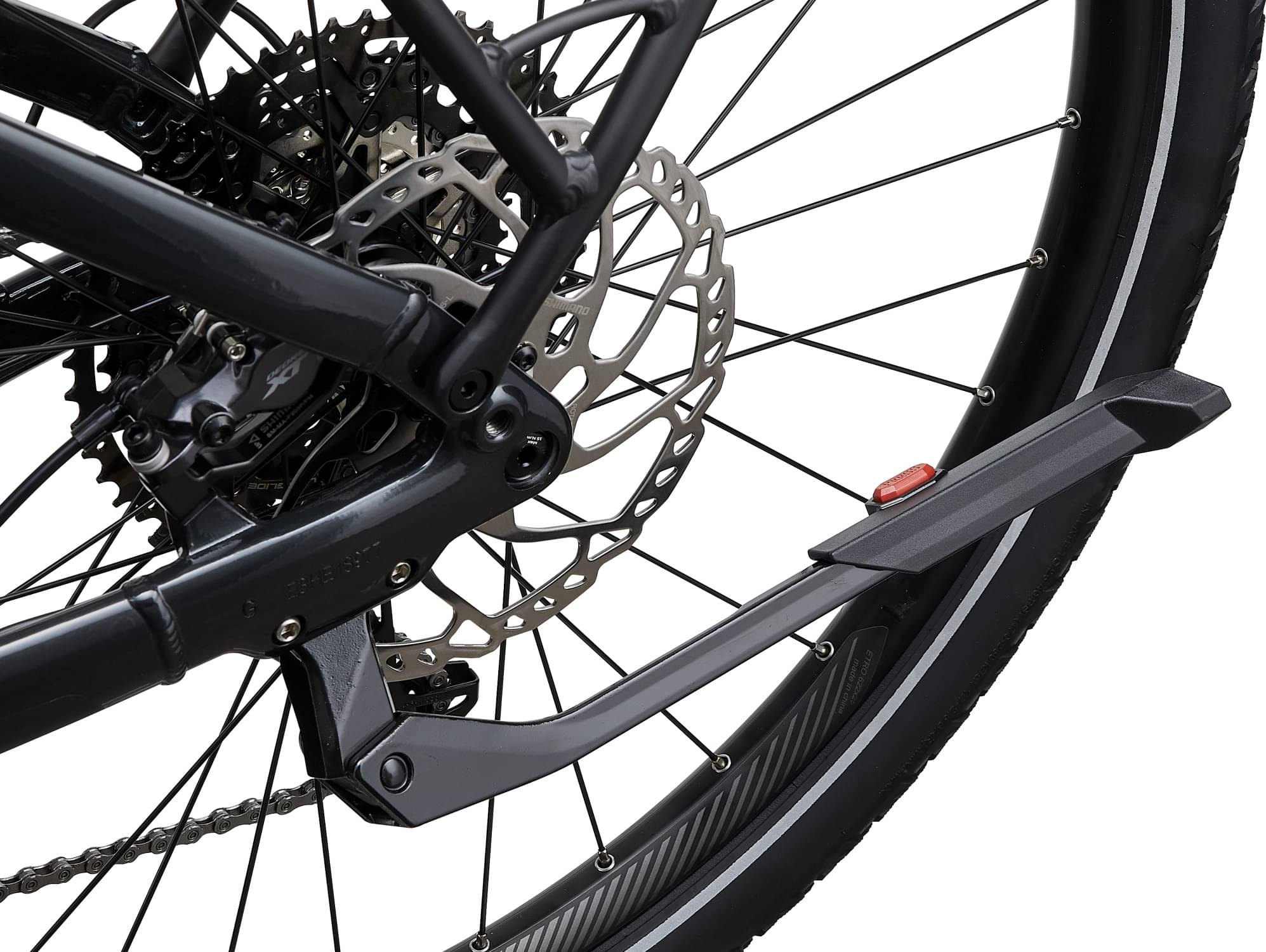

ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Suspension Fork
SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore XT, LinkGlide, 11-speed, Shadow+
Shift Levers
Shimano Deore XT, LinkGlide
Cassette
Shimano LinkGlide, CS-LG700-11 11-50T, 11-speed
Crank

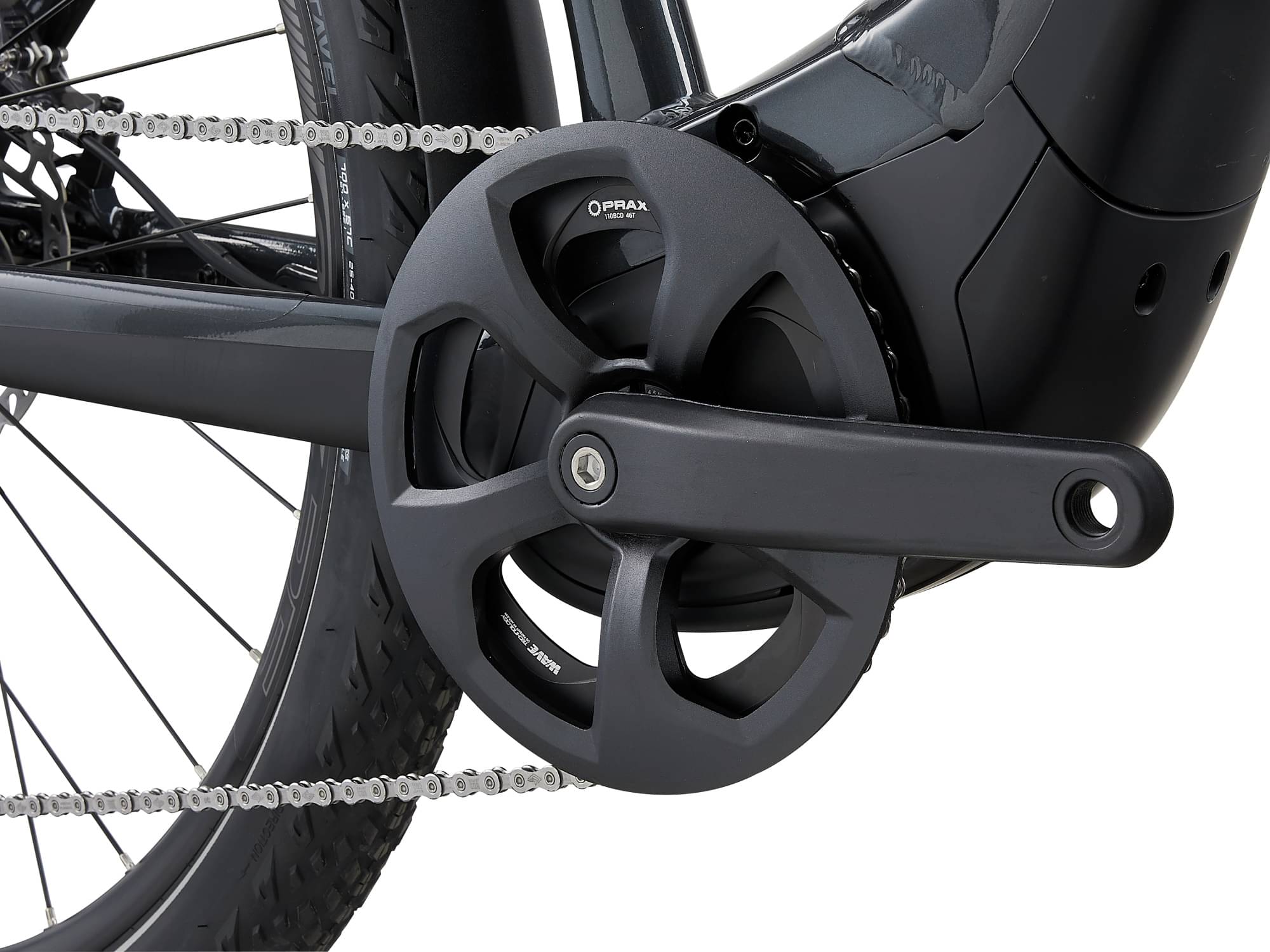

Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Bottom Bracket
N/A
Chain
Shimano CN-LG500
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rear Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rims
eX25, Tubeless Ready, 622x25 Aluminium
Spokes
Stainless steel, e-bike optimized
Tires
Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready
Brakes
Brakes
Shimano XT, hydraulic disc, 203mm
Brake Levers
Shimano XT
Cockpit
Stem
Giant Contour EVO integrated 16? (S/M:80mm L/XL/XXL 100mm)
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Gant Connect Ergo Max Cork w/bar-end
Seat
Saddle

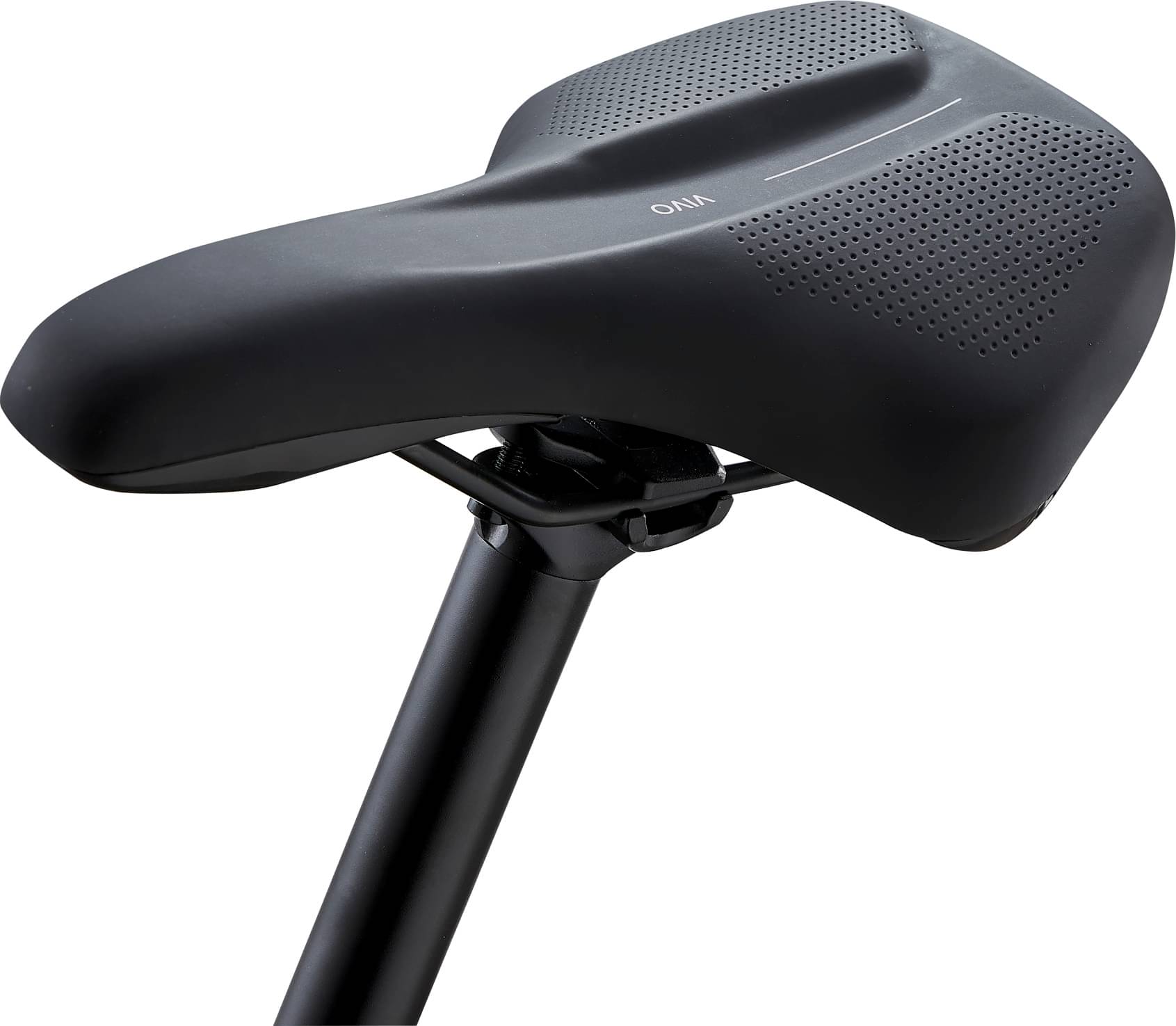

Selle Royal Vivo Ergo Moderate Unisex
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor

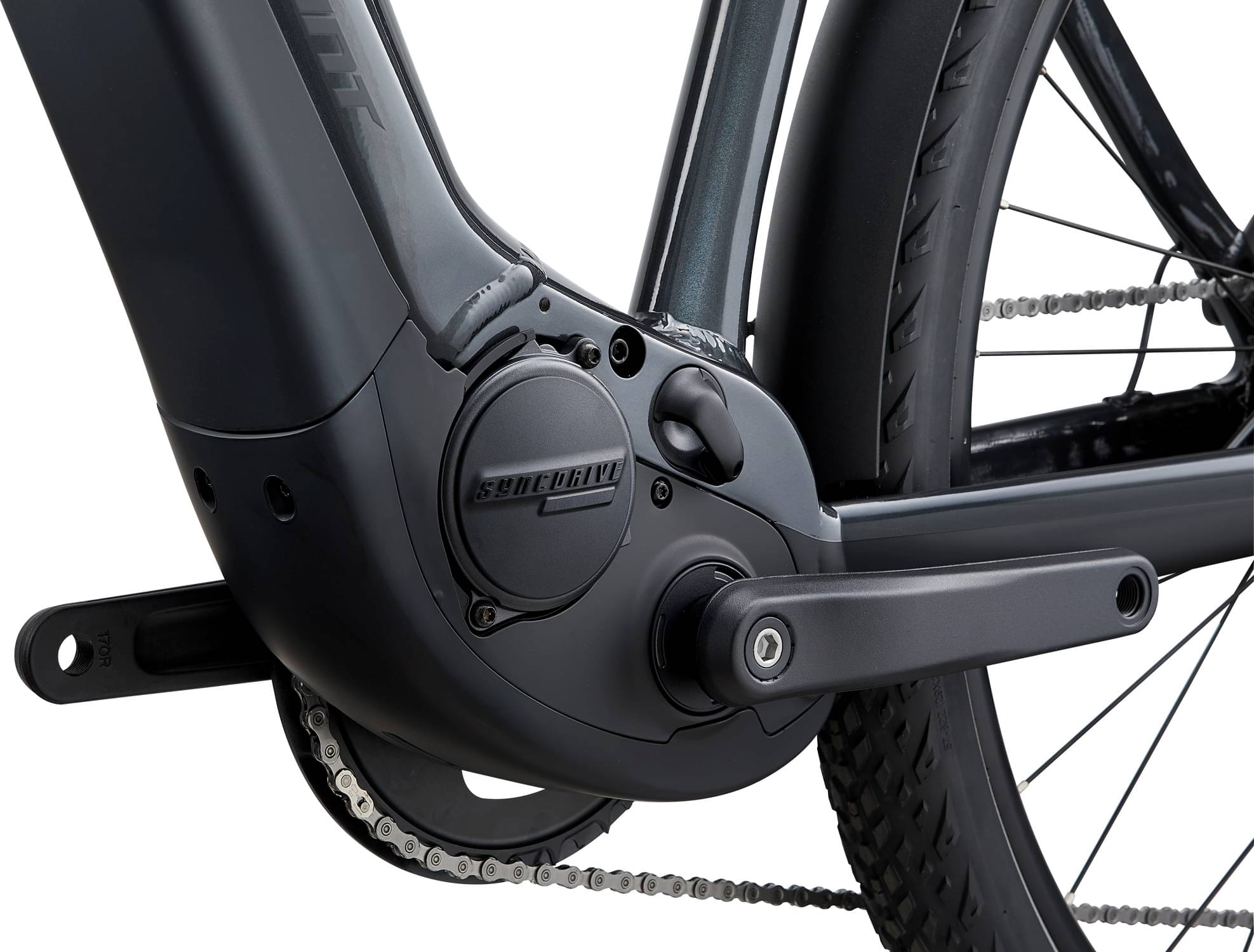

Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), Giant EnergyPak Plus 250 range extender compatible
Charger
Giant EnergyPak 6A smart charger, 60% charge in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.7 mm | 1.67 mm | 1.64 mm |
| Front Center | 680 mm | 691 mm | 712 mm | 733 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 669 mm | 683 mm | 697 mm | 711 mm |
| Reach | 397 mm | 402 mm | 418 mm | 434 mm |
| Top Tube Length | 601 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1145 mm | 1156 mm | 1177 mm | 1198 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 794 mm | 825 mm | 857 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 169 cm | 176 cm | 183 cm | 190 cm |
| Rider Max Height | 179 cm | 186 cm | 193 cm | 200 cm |
About this model
Explore E+ Pro 0, GTS completes the Giant E Explore model. Giant launched 72 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Giant Explore E+, 3 STA 2023 has a starting price of 2819$. Giant Explore E+, Pro 0 STA 2023 on the other hand is the most expensive at 5308$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 5308$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Explore E+ Pro 0, GTS price is 114.03% higher.
Overview of components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Explore E+ Pro 0, GTS model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Explore E+ Pro 0, GTS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Explore E+ Pro 0, GTS comes in 4 sizes, that range from 169 cm – 200 cm (5.54 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
