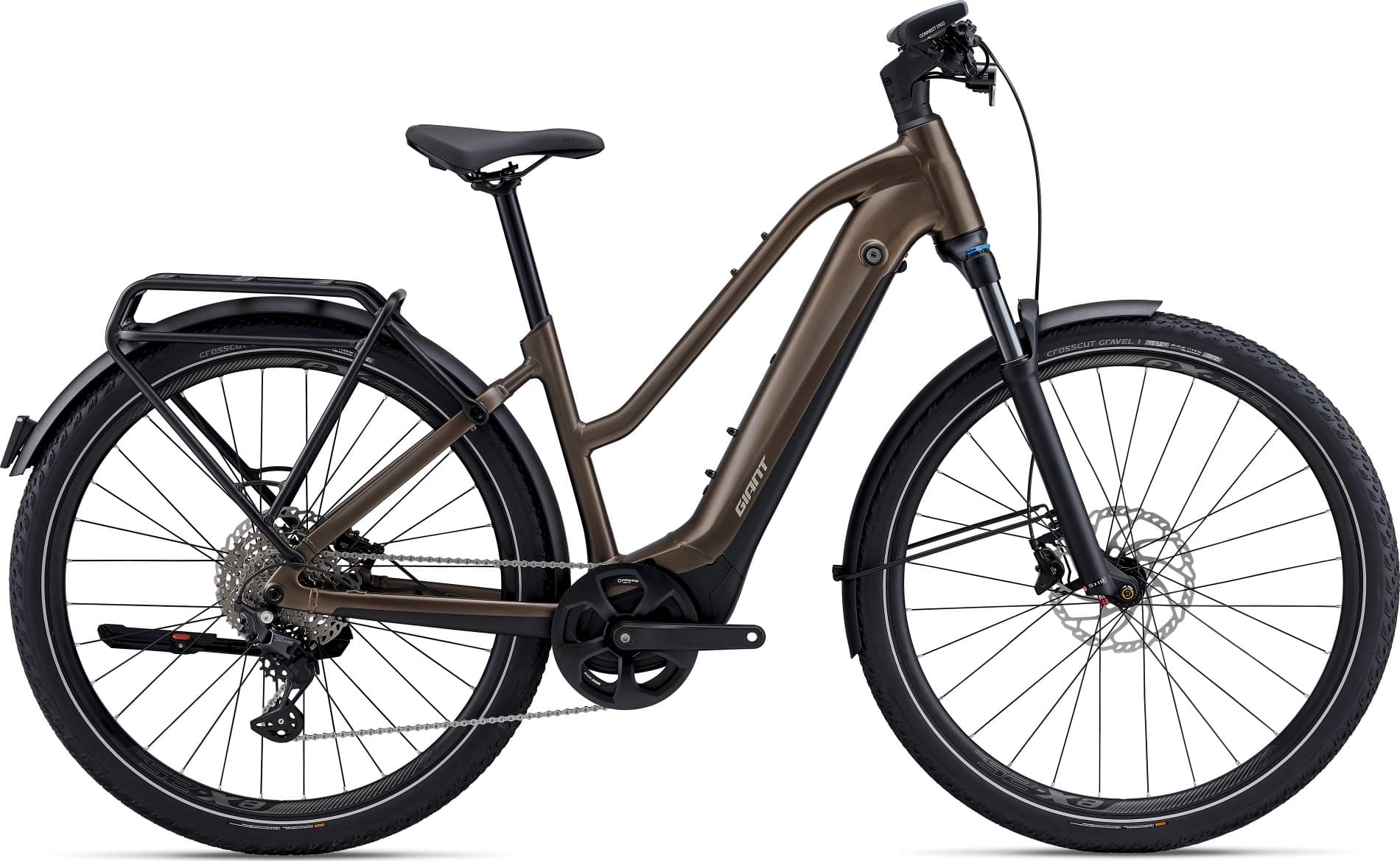

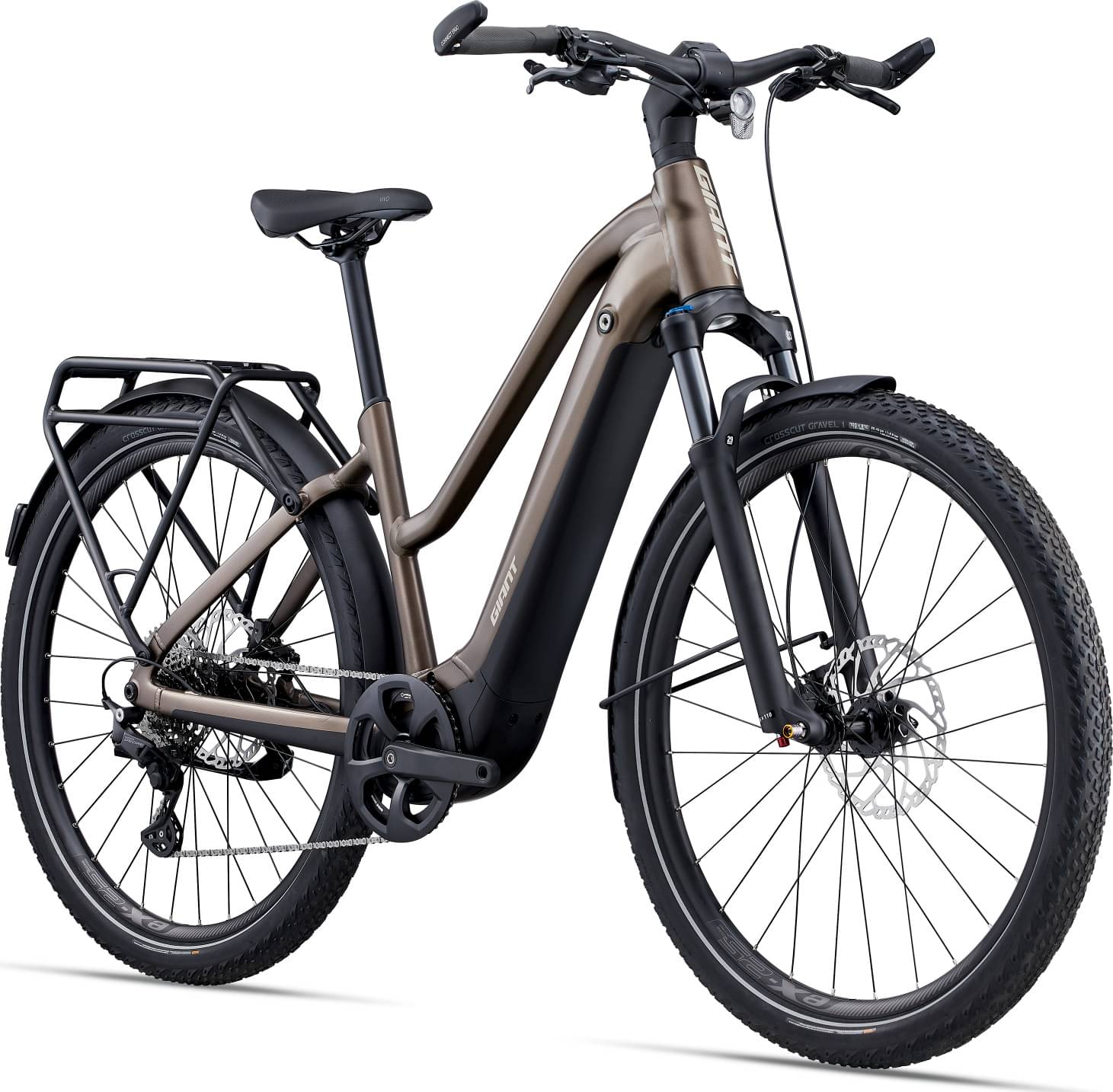

Giant Explore E+, Pro 1 STA 2023
2023 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Suspension Fork
SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Drivetrain
Rear Derailleur
Shimano Deore LinkGlide, 10-speed, Shadow+
Shift Levers
Shimano Deore, LinkGlide
Cassette
Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Crank
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Chain
Shimano LinkGlide, CN-LG500
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rear Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rims
eX25, Tubeless Ready, 622x25 Aluminium
Spokes
Stainless steel, e-bike optimized
Tires
Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready
Brakes
Brakes
Shimano BR-MT410, hydraulic disc, 180mm
Brake Levers
Shimano Deore
Cockpit
Stem
Giant Contour EVO integrated 16? (S/M:80mm L/XL/XXL 100mm)
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Gant Connect Ergo Max Cork w/bar-end
Seat
Saddle
Selle Royal Vivo Ergo Moderate Unisex
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604)
Charger
Giant EnergyPak 6A smart charger, 60% charge in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.73 mm | 1.77 mm | 1.73 mm |
| Front Center | 699 mm | 687 mm | 692 mm | 713 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 84 mm | 84 mm | 84 mm |
| Stack | 658 mm | 675 mm | 689 mm | 703 mm |
| Reach | 387 mm | 391 mm | 390 mm | 406 mm |
| Top Tube Length | 578 mm | 593 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 435 mm | 490 mm | 545 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 448 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1140 mm | 1144 mm | 1149 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 675 mm | 663 mm | 643 mm | 642 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 176 cm | 183 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm | 193 cm |
Model Overview
Explore E+, Pro 1 STA is part of the Giant E Explore model. There are 72 e-bikes that carry this model name. You can easily view all of the Giant E Explore e-bikes models from 2023, here.
Model range prices
Giant Explore E+, 3 STA 2023 is the most economical model, with a starting price of 2819$. Giant Explore E+, Pro 0 STA 2023 on the other hand costs 5308$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4777$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Explore E+, Pro 1 STA price is 92.62% more expensive.
Overview of components
Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Giant Explore E+, Pro 1 STA 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Explore E+, Pro 1 STA comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
