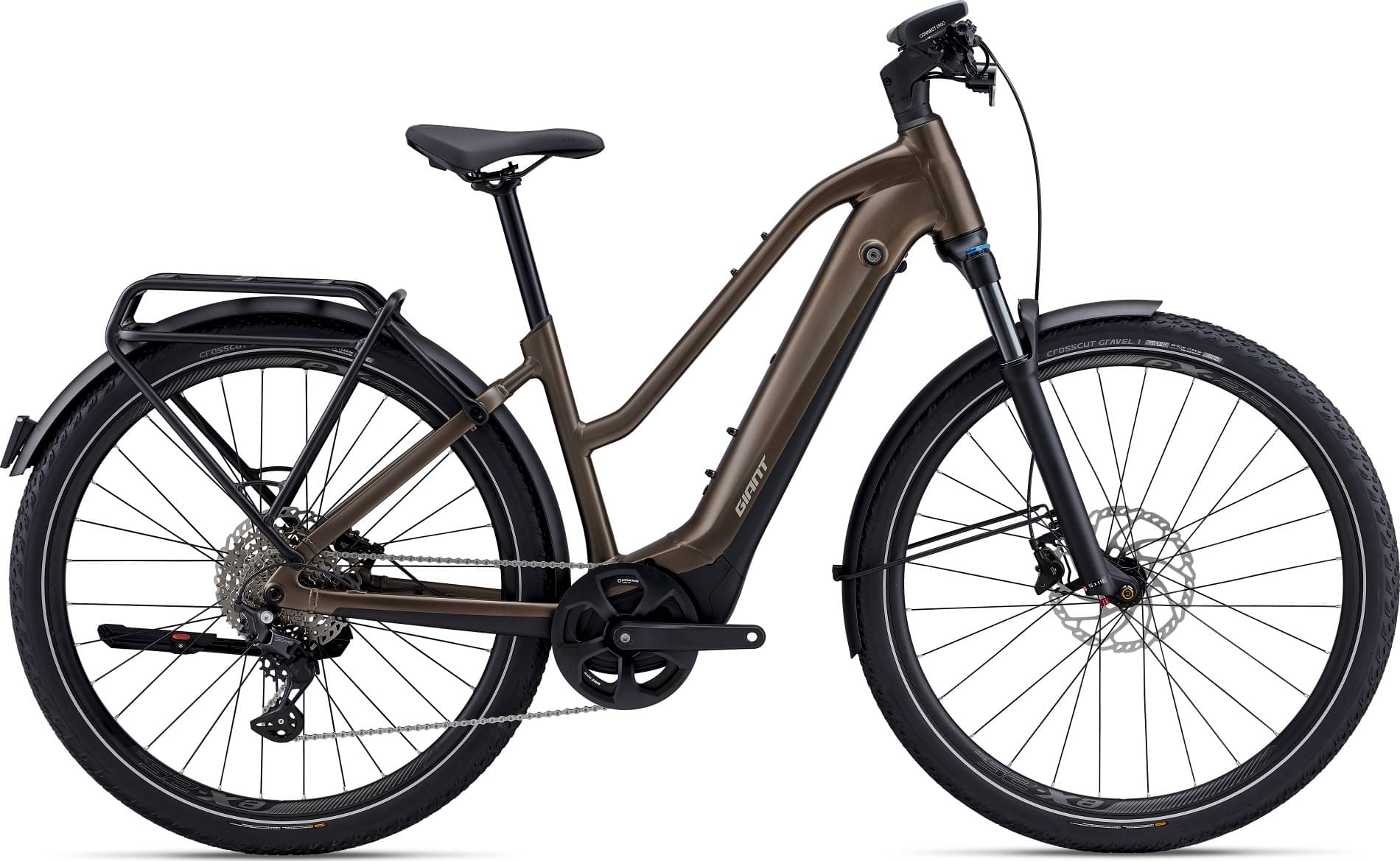

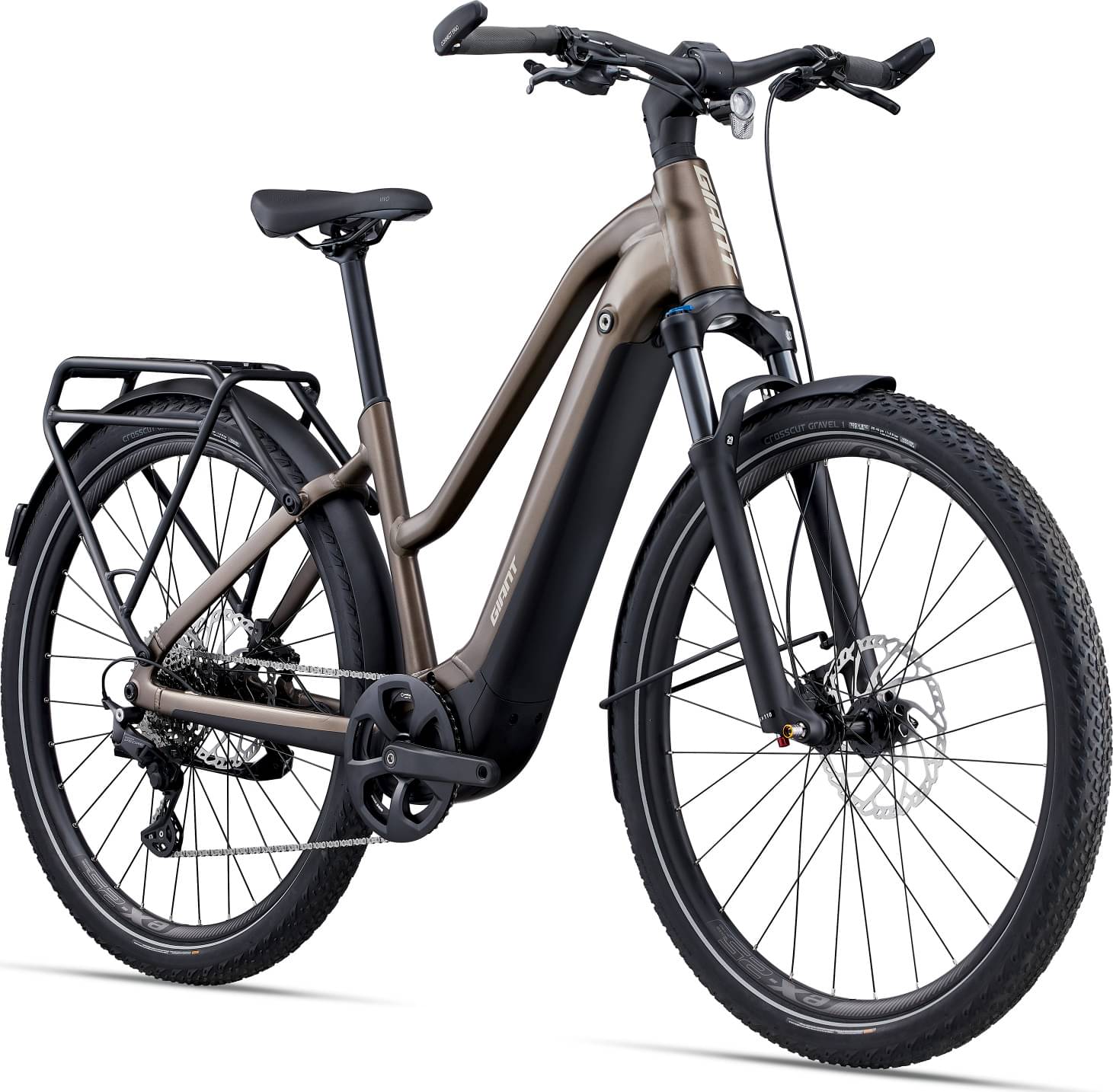

Giant Explore E+ Pro 1, Step-Thru 2023
2023 E-bike
Estimate price |
3,931$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
169cm - 179cm
LG
176cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Suspension Fork
SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Drivetrain
Rear Derailleur
Shimano Deore LinkGlide, 10-speed, Shadow+
Shift Levers
Shimano Deore, LinkGlide
Cassette
Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Crank
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Chain
Shimano LinkGlide, CN-LG500
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rear Hub
Giant eTracker, [F] 110x15 [R] 148x12
Rims
eX25, Tubeless Ready, 622x25 Aluminium
Spokes
Stainless steel, e-bike optimized
Tires
Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready
Brakes
Brakes
Shimano BR-MT410, hydraulic disc, 180mm
Brake Levers
Shimano Deore
Cockpit
Stem
Giant Contour EVO integrated 16? (S/M:80mm L/XL/XXL 100mm)
Handlebar
Giant Contour Comfort Riser 31.8x690mm
Grips
Gant Connect Ergo Max Cork w/bar-end
Seat
Saddle
Selle Royal Vivo Ergo Moderate Unisex
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604)
Charger
Giant EnergyPak 6A smart charger, 60% charge in 3:00h
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.73 mm | 1.77 mm |
| Front Center | 699 mm | 687 mm | 692 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 84 mm | 84 mm |
| Stack | 658 mm | 675 mm | 689 mm |
| Reach | 387 mm | 391 mm | 390 mm |
| Top Tube Length | 578 mm | 593 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 435 mm | 490 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 448 mm | 463 mm | 463 mm |
| Wheelbase | 1140 mm | 1144 mm | 1149 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 675 mm | 663 mm | 643 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 176 cm |
| Rider Max Height | 172 cm | 179 cm | 186 cm |
About this model
Explore E+ Pro 1, Step-Thru completes the Giant E Explore model. Giant launched 72 e-bikes of this model so far. You can easily view all of the Giant E Explore e-bikes models from 2023, here.
Model range prices
Giant Explore E+, 3 STA 2023 is the most economical model, with a starting price of 2819$. Giant Explore E+, Pro 0 STA 2023 on the other hand costs 5308$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Explore E+ Pro 1, Step-Thru price was 3976$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Explore E+ Pro 1, Step-Thru price is 60.32% more expensive.
Overview of components
Fork
The Explore E+ Pro 1, Step-Thru comes factory-installed with the Suntour XCR Air fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Explore E+ Pro 1, Step-Thru e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Explore E+ Pro 1, Step-Thru has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Giant Explore E+ Pro 1, Step-Thru e-bike has 3 sizes, in the range of 162 cm – 186 cm (5.31 ft – 6.1 ft). In short, you can easily find one that suits you.
