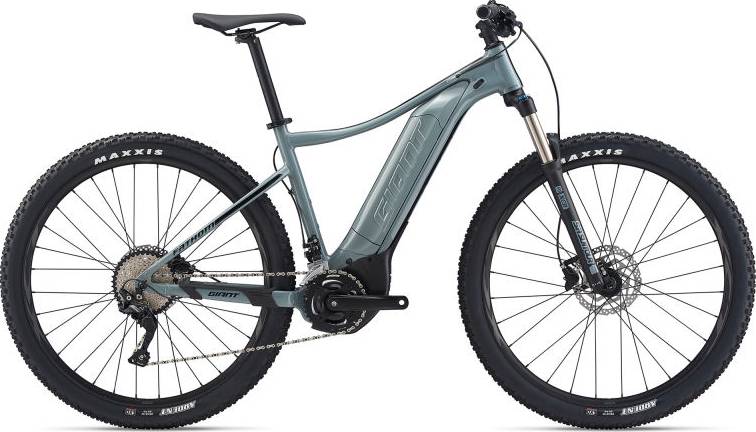

Giant Fathom E+ 2 29 Electric Bike 2020
2020 E-bike
Estimate price |
3,077$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1½ - 1?" head tube, 141mm Boost QR, integrated KS18 kickstand mount
Suspension Fork
SR Suntour XCR 32 Boost Coil LOR 29 120mm travel, Tapered 1½ - 1?" steerer, lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10, 11-42T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 28/38T
Bottom Bracket
N/A
Chain
KMC e.10 Sport
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rear Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rims
Giant XCT 29 Tubeless Ready 25mm e-bike optimized
Spokes
Stainless steel
Tires
Maxxis Ardent 29x2.4", EXO, 60 TPI
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Connect TR Riser 31.8x780mm
Seat
Saddle
Giant Sport
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, automatic support, 5-mode, 50-350% tunable support, 70Nm, powered by YAMAHA
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 674 mm | 695 mm | 717 mm | 738 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95.3 mm | 95.3 mm | 95.3 mm | 95.3 mm |
| Stack | 622 mm | 627 mm | 650 | 659 mm |
| Reach | 391 mm | 410 mm | 422 mm | 440 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 455 mm | 505 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 140 mm | 150 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1145 mm | 1166 mm | 1188 mm | 1209 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 758 mm | 765 mm | 792 mm | 796 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fathom E+ 2 29 Electric Bike is a Giant E Fathom model. Giant released 25 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant Fathom E+ 3 Electric Bike 2020 is the most affordable e-bike of this model and has a price of 2432$. On the other hand, Giant Fathom E+ 1 Pro 29 Electric Bike 2020, is the most expensive and costs 3648$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 2796$. In conclusion, this e-bike price is 20.35% lower than the price of the average Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Giant Fathom E+ 2 29 Electric Bike it’s weighing 22.7 kg (50.04 lbs). At this weight, is slightly lighter than average. In other words, this model is 4.41% lighter than the average Trail e-bike.
Fathom E+ 2 29 Electric Bike components
Fork
Giant Fathom E+ 2 29 Electric Bike 2020 e-bike is equipped with the SunTour XCR 32 fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Fathom E+ 2 29 Electric Bike are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Fathom E+ 2 29 Electric Bike is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Giant Fathom E+ 2 29 Electric Bike e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
