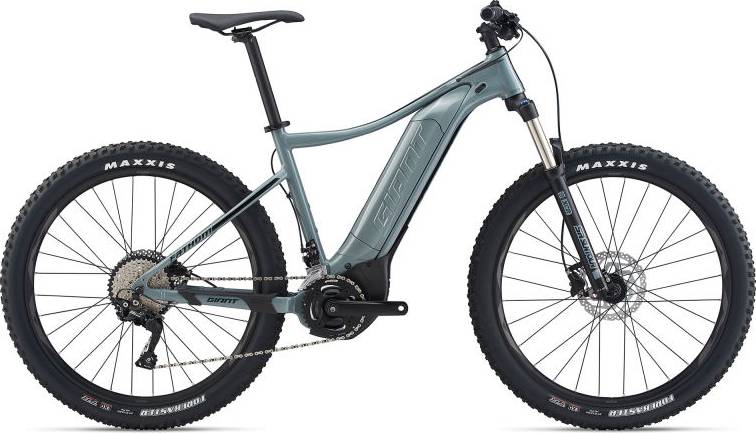

Giant Fathom E+ 2 Electric Bike 2020
2020 E-bike
Estimate price |
3,077$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 70Nm mid-drive -
Battery Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX aluminum, Overdrive 1½ - 1?" head tube, 141mm Boost QR, integrated KS18 kickstand mount
Suspension Fork
SR Suntour XCR 32 Boost Coil LOR 29, 120mm travel, Tapered 1½ - 1?" steerer, lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, 10-Speed, Shadow+
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10, 11-42T, 10-Speed
Crank
Forged Alloy minimal Q-factor, 28/38T
Bottom Bracket
N/A
Chain
KMC e.10 Sport
Pedals
Aluminum Platform
Wheels
Front Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rear Hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Rims
Giant AM 27.5, Tubeless ready, 30mm inner width
Spokes
Stainless steel
Tires
Maxxis Forekaster 27.5x2.6, foldable, 60 TPI, EXO, Tubeless ready
Brakes
Brakes
Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers
Shimano BL-MT200
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact Riser (new) 31.8x780mm
Seat
Saddle
Giant Sport
Seatpost
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Motor & Battery
Motor
Giant SyncDrive Sport, automatic support, 5-mode, 50-350% tunable support, 70Nm, powered by YAMAHA
Battery
Giant EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion
Remote
Giant RideControl ONE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 669 mm | 690 mm | 712 mm | 733 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 100.7 mm | 100.7 mm | 100.7 mm | 100.7 mm |
| Stack | 622 mm | 627 mm | 650 | 659 mm |
| Reach | 391 mm | 410 mm | 422 mm | 440 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 455 mm | 505 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 115 mm | 140 mm | 150 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1140 mm | 1161 mm | 1183 mm | 1204 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 758 mm | 765 mm | 792 mm | 796 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Fathom E+ 2 Electric Bike is part of the Giant E Fathom model. Giant released 25 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Giant Fathom E+ 3 Electric Bike 2020 is the most economical model, with a starting price of 2432$. Giant Fathom E+ 1 Pro 29 Electric Bike 2020 on the other hand costs 3648$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2020, its price was 2796$. Comparing this to the average Trail e-bike price, we see that the price is 20.35% lower.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Giant Fathom E+ 2 Electric Bike it’s weighing 22.4 kg (49.38 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.8% lighter than the average Trail e-bike.
Fathom E+ 2 Electric Bike components
Fork
The SunTour XCR 32 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Giant Fathom E+ 2 Electric Bike 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fathom E+ 2 Electric Bike comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Fathom E+ 2 Electric Bike comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
