Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 146mm -
Fork Fox Performance Elite Float 38
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 173cm
MD
170cm - 181cm
LG
178cm - 189cm
XL
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminium front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle
Suspension Fork
Fox 38 Performance Elite, GRIP 2 damper, 37mm offset, 170mm, 15x110 Kabolt X, custom tuned for Giant
Rear Shock
Fox DHX2 Performance Elite, lockout, 205/60, custom tuned for Giant S:400#, M:400#, L:450#, XL:500#
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 1x12
Cassette
SRAM NX Eagle, 11x50
Crank
TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM NX Eagle
Pedals
N/A
Wheels
Front Hub
Giant Boost, sealed
Rear Hub
Giant Boost, sealed
Rims
Giant AM 29, alloy
Spokes
Sapim
Tires
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, EXO+, TR tubeless
Brakes
Brakes
Shimano SLX BR-M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm
Brake Levers
Shimano SLX BL-M7100
Cockpit
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Handlebar
Giant Contact TR35, alloy 35mm
Grips
Giant Tactal Pro Single lock-on
Seat
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper, remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.38 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 753 mm | 782 mm | 824 mm | 851 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132.7 mm | 132.7 mm | 132.7 mm | 132.7 mm |
| Stack | 619 mm | 619 mm | 628 mm | 637 mm |
| Reach | 420 mm | 448 mm | 485 mm | 508 mm |
| Top Tube Length | 571 mm | 598 mm | 637 mm | 663 mm |
| Seat Tube Angle | 76.4 ° | 76.4 ° | 76.4 ° | 76.4 ° |
| Seat Tube Length | 431 mm | 431 mm | 464 mm | 496 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1188 mm | 1217 mm | 1259 mm | 1286 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 754 mm | 756 mm | 778 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 170 cm | 178 cm | 186 cm |
| Rider Max Height | 173 cm | 181 cm | 189 cm | 198 cm |
Model Overview

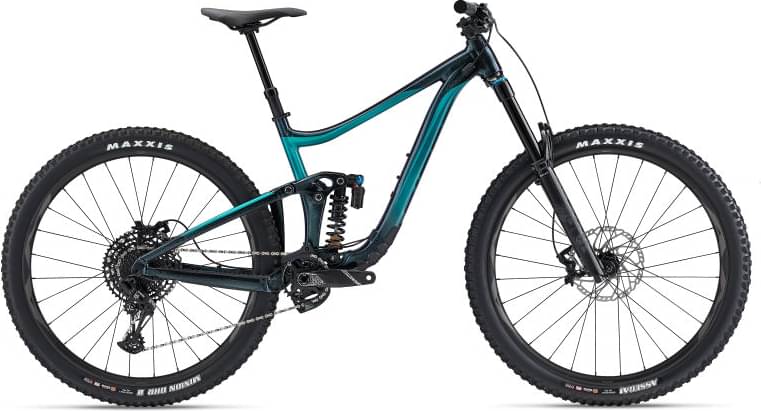

Reign 29 SX is a Giant Reign model. Giant released 92 bikes variations of this model so far. You can easily view all of the Giant Reign bikes models from 2022, here.
Model range prices
Giant Reign 29 2022 is the cheapest bike model and costs 2993$. Giant Reign Advanced Pro 29 1 2022 is the most expensive one and costs 5922$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Giant Reign 29 SX price was 3693$. If we compare this with the average Trail bike cost we notice that the price is 33.71% higher.
Reign 29 SX components
Fork
The fork installed on this bike is the Fox Performance Elite Float 38 model. The travel on this model is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox DHX2 Performance Elite, with a travel distance of 146mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Reign 29 SX bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Giant Reign 29 SX bike has 4 sizes, in the range of 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
