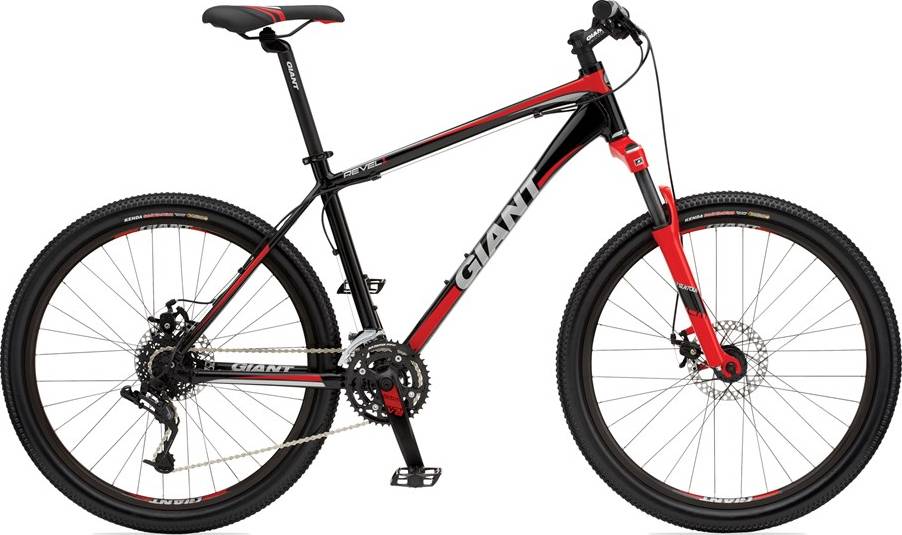

Giant Revel 1 (Black/ Red) 2011
2011 Mountain
Estimate price |
510$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset X4, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Butted Aluminum
Suspension Fork
SR Suntour XCM V3 w/ Preload Adjust, 100mm Travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X.4
Front Derailleur
Shimano Altus M310
Shift Levers
SRAM X.4, Trigger
Cassette
SRAM PG820 11x32, 8-Speed
Crank
SR Suntour XCT V2, 22/32/42
Bottom Bracket
SR Cartridge
Chain
KMC Z72
Pedals
Alloy Platform
Wheels
Front Hub
Formula Disc, 32h
Rear Hub
Formula Disc, 32h
Rims
Giant XC Alloy, Double Wall
Spokes
Stainless Steel, 14g
Tires
Kenda Small Block Eight, 26x2.1
Brakes
Brakes
Tektro I.O. Disc
Brake Levers
Tektro Alloy, 2 Finger
Cockpit
Stem
Giant Sport, Alloy
Handlebar
Giant Sport Alloy, Low Rise 31.8
Seat
Saddle
Giant Sport MTB
Seatpost
Giant Sport, Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 521 mm | 541 mm | 569 mm | 579 mm | 592 mm | 617 mm | 635 mm |
| Seat Tube Angle | 75 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Angle | 70 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 117 mm | 119 mm | 130 mm | 145 mm | 160 mm | 180 mm | 201 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1008 mm | 1031 mm | 1057 mm | 1077 mm | 1090 mm | 1105 mm | 1120 mm |
| Standover Height | 714 mm | 724 mm | 732 mm | 767 mm | 798 mm | 810 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Revel 1 (Black/ Red) is part of the Giant Revel model. Giant released 43 bikes variations of this model so far. You can easily view all of the Giant Revel bikes models from 2011, here.
Model range prices
Giant Revel 2 W 2011 is the most economical model, with a starting price of 390$. Giant Revel 0 2011 on the other hand costs 670$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Giant Revel 1 (Black/ Red) price was 510$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revel 1 (Black/ Red) price is 273.53% smaller.
Revel 1 (Black/ Red) components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Giant Revel 1 (Black/ Red) 2011, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Revel 1 (Black/ Red) comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, it won’t be difficult to find the right one for you.
