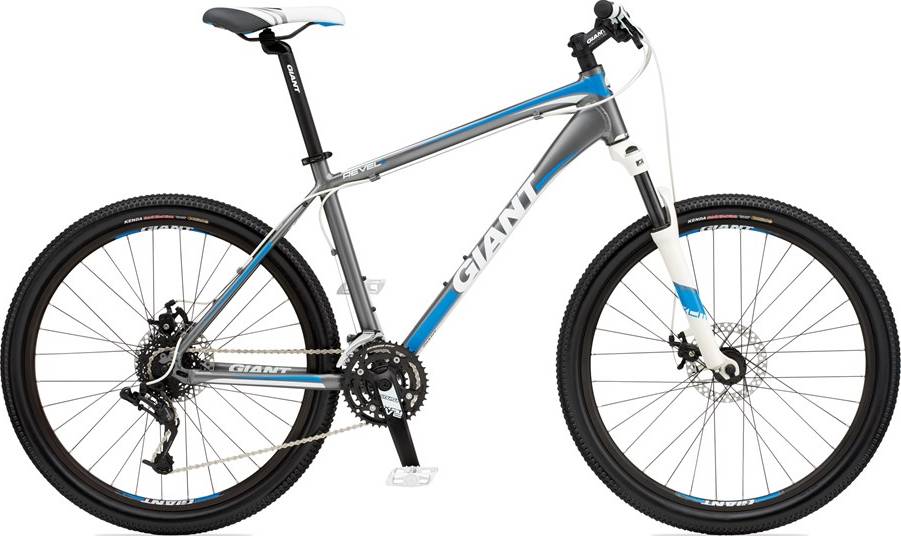

Giant Revel 1 (Silver/ Blue) 2011
2011 Mountain
Estimate price |
510$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset X4, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Butted Aluminum
Suspension Fork
SR Suntour XCM V3 w/ Preload Adjust, 100mm Travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X.4
Front Derailleur
Shimano Altus M310
Shift Levers
SRAM X.4, Trigger
Cassette
SRAM PG820 11x32, 8-Speed
Crank
SR Suntour XCT V2, 22/32/42
Bottom Bracket
SR Cartridge
Chain
KMC Z72
Pedals
Alloy Platform
Wheels
Front Hub
Formula Disc, 32h
Rear Hub
Formula Disc, 32h
Rims
Giant XC Alloy, Double Wall
Spokes
Stainless Steel, 14g
Tires
Kenda Small Block Eight, 26x2.1
Brakes
Brakes
Tektro I.O. Disc
Brake Levers
Tektro Alloy, 2 Finger
Cockpit
Stem
Giant Sport, Alloy
Handlebar
Giant Sport Alloy, Low Rise 31.8
Seat
Saddle
Giant Sport MTB
Seatpost
Giant Sport, Alloy, 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 521 mm | 541 mm | 569 mm | 579 mm | 592 mm | 617 mm | 635 mm |
| Seat Tube Angle | 75 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Angle | 70 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 117 mm | 119 mm | 130 mm | 145 mm | 160 mm | 180 mm | 201 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1008 mm | 1031 mm | 1057 mm | 1077 mm | 1090 mm | 1105 mm | 1120 mm |
| Standover Height | 714 mm | 724 mm | 732 mm | 767 mm | 798 mm | 810 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
Revel 1 (Silver/ Blue) is part of the Giant Revel model. 43 bikes variations carry this model name so far. Take a sneak peek at all Giant Revel bikes models from 2011, by clicking here.
Model range prices
The most economical model, the Giant Revel 2 W 2011 has a starting price of 390$. Giant Revel 0 2011 on the other hand is the most expensive at 670$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Giant released this model in 2011, its price was 510$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revel 1 (Silver/ Blue) price is 273.53% lower.
Overview of components
Fork
The Revel 1 (Silver/ Blue) comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Revel 1 (Silver/ Blue) bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revel 1 (Silver/ Blue) has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
