Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum w/ rack mounts
Suspension Fork
Advanced-grade composite, with alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra 11x32, 11-speed
Crank
FSA Energy, 36/46
Bottom Bracket
Shimano, Sealed
Chain
KMC X11SL
Pedals
N/A
Wheels
Front Hub
Giant P-CXR1 WheelSystem; precision-sealed cartridge bearings, 28h
Rear Hub
Giant P-CXR1 WheelSystem; precision-sealed cartridge bearings, 28h
Rims
Giant P-CXR1 WheelSystem; 24mm wide, Alloy
Spokes
Giant P-CXR1 WheelSystem; DT Swiss Competition stainless
Tires
Schwalbe Smart Sam Performance, 700x40, Folding
Brakes
Brakes
TRP Spyre, Mechanical disc, [F] 160mm, [R] 140mm
Brake Levers
Shimano Ultegra
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Giant Contact, Forward
Seatpost
Giant Connect, Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 554 mm | 564 mm | 569 mm | 579 mm | 584 mm |
| Seat Tube Angle | 72 ° | 72 ° | 71.5 ° | 71 ° | 71 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 178 mm | 196 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1041 mm | 1046 mm | 1046 mm | 1052 mm | 1057 mm |
| Standover Height | 729 mm | 749 mm | 765 mm | 780 mm | 798 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview

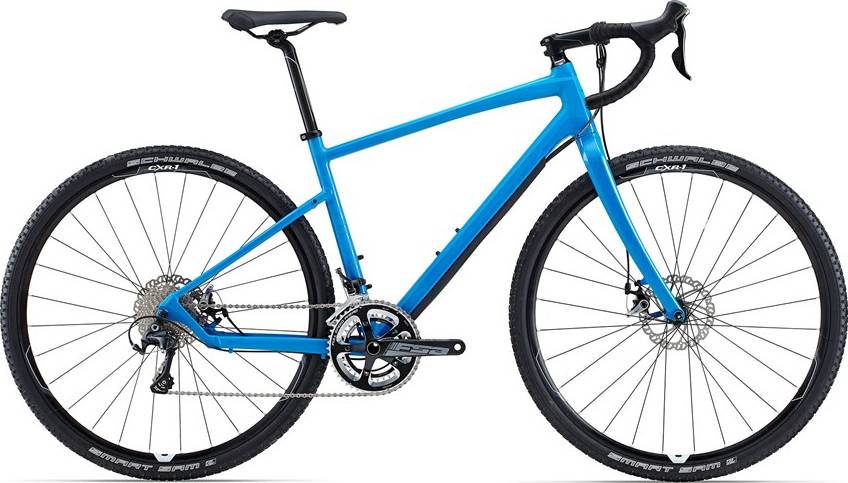

Revolt 0 is a Giant Revolt model. Giant launched 68 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Giant Revolt 3 2015 is the most economical model, with a starting price of 1045$. Giant Revolt 0 2015 on the other hand costs 2775$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2015 for 2775$. Comparing this to the average Gravel bike price, we see that the price is 12.71% more expensive.
Revolt 0 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Revolt 0 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolt 0 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
