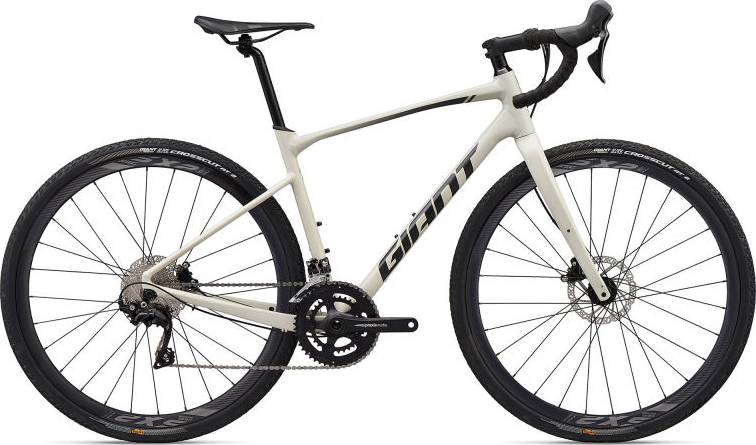

Giant Revolt 0 2020
2020 Road
Estimate price |
1,572$
Weight | 10.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
Advanced-Grade Composite (w/ Low-Rider Rack Mount), Full-Composite OverDrive Steerer, 12mm Thru-Axle, Flat Mount
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105, 11x34, 11-Speed
Crank
Praxis Albe 2D, 32/48
Bottom Bracket
Praxis M24, BSA Threaded
Chain
KMC X11 with Missing Link
Pedals
N/A
Wheels
Front Hub
Giant Tracker Sport, [F] 12mm [R] 12x142mm, 28h
Rear Hub
Giant Tracker Sport, [F] 12mm [R] 12x142mm, 28h
Rims
Giant S-X2, Double Wall, Disc
Spokes
Sapim
Tires
Giant Crosscut AT 1, 700x38
Brakes
Brakes
Shimano 105 Hydraulic Disc, 160mm
Brake Levers
Shimano 105 hydraulic
Cockpit
Stem
Giant Contact, 8-degree
Handlebar
Giant Contact XR D-Fuse, 31.8 5° back sweep, flared drop
Seat
Saddle
Giant Contact, Neutral, UniClip Accessory Mount
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 600 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm | 75 mm | 71.6 mm | 71.6 mm | 71.6 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 597 mm | 611 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1016 mm | 1021 mm | 1032 mm | 1037 mm | 1047 mm | 1063 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 710 mm | 725 mm | 742 mm | 759 mm | 776 mm | 793 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
Model Overview
Revolt 0 is a Giant Revolt model. 68 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Giant Revolt 2 2020 is the cheapest bike model and costs 1000$. Giant Revolt Advanced Pro Force 2020 is the most expensive one and costs 5500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 1590$. Doing a quick comparison, we notice that Revolt 0 price is 54.84% smaller than the average cost of a Gravel bike.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Giant Revolt 0 it’s weighing 10.1 kg (22.27 lbs). At this weight, is much heavier than average. In short, the average Gravel bike weight is 24.23% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Revolt 0 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Giant Revolt 0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
