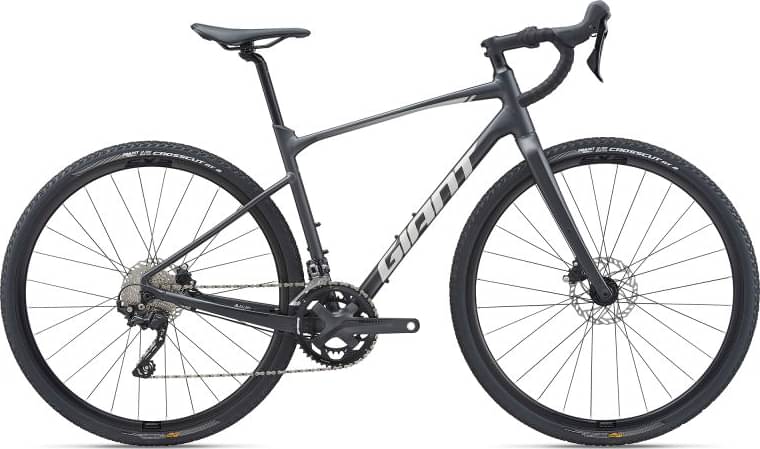

Giant Revolt 0 2021
2021 Road
Estimate price |
1,643$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-Grade Aluminum, disc
Suspension Fork
full composite, OverDrive steerer, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX RX-810
Front Derailleur
Shimano GRX RX-810
Shift Levers
Shimano GRX RX-600
Cassette
Shimano 105, 11-speed, 11x34
Crank
Praxis Alba 2D, 32/48
Bottom Bracket
Praxis M24 BB86, press fit
Chain
KMC X11 with Missing Link
Pedals
N/A
Wheels
Front Hub
Giant S-X2 Disc wheelset, 12mm thru-axle
Rear Hub
Giant S-X2 Disc wheelset, 12mm thru-axle
Rims
Giant S-X2 Disc wheelset
Spokes
Sapim
Tires
Giant CrossCut AT 2 Tubeless, 700x38C
Brakes
Brakes
Shimano GRX RX-400 hydraulic, 160mm
Brake Levers
Shimano GRX RX-600 hydraulic
Cockpit
Stem
Giant Contact, 8-degree
Handlebar
Giant Contact XR D-Fuse
Seat
Saddle
Giant Approach, UniClip accessory mount
Seatpost
Giant D-Fuse, alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.54 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 75 mm | 75 mm | 71.6 mm | 71.6 mm | 71.6 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 597 mm | 611 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1015 mm | 1021 mm | 1032 mm | 1037 mm | 1047 mm | 1063 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 712 mm | 727 mm | 745 mm | 761 mm | 779 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
About this model
Revolt 0 completes the Giant Revolt model. Giant released 68 bikes variations of this model so far. You can easily view all of the Giant Revolt bikes models from 2021, here.
Model range prices
Giant Revolt 2 2021 is the cheapest bike model and costs 1300$. Giant Revolt Advanced Pro 0 2021 is the most expensive one and costs 6150$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Giant released this model in 2021, its price was 1662$. Comparing the average cost of a Gravel bike to this one, you will see that Revolt 0 price is 48.13% lower.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Giant Revolt 0 it’s weighing 9.9 kg (21.83 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel bike weighs 21.77% less than Revolt 0.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Giant Revolt 0 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Giant Revolt 0 bike has 6 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
