Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset R350, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum w/ rack mounts
Suspension Fork
Advanced-grade composite, alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano R350
Front Derailleur
Shimano R460
Shift Levers
Shimano R460
Cassette
Shimano HG62 11x34, 10-speed
Crank
Shimano R460, 34/48
Bottom Bracket
Shimano external
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant Tracker Sport, 28h
Rear Hub
Giant Tracker Sport, 28h
Rims
Giant S-X2, double wall
Spokes
Stainless Steel, 14g
Tires
Giant P-RX2, FlatGuard Deflect 3, 700x35
Brakes
Brakes
Avid BB7 Road, mechanical disc, 160mm
Brake Levers
Shimano R460, w/Tektro RL720 top-bar levers
Cockpit
Stem
Giant Sport
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Giant Contact, Forward
Seatpost
Giant Connect Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 554 mm | 564 mm | 569 mm | 579 mm | 584 mm |
| Seat Tube Angle | 72 ° | 72 ° | 71.5 ° | 71 ° | 71 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 178 mm | 196 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1041 mm | 1046 mm | 1046 mm | 1052 mm | 1057 mm |
| Standover Height | 729 mm | 749 mm | 765 mm | 780 mm | 798 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
About this model

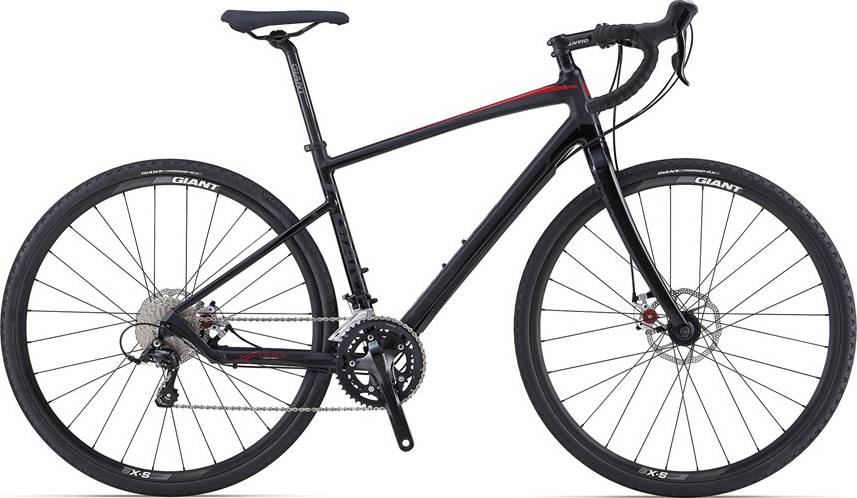

Revolt 1 is part of the Giant Revolt model. Giant released 68 bikes variations of this model so far. You can easily view all of the Giant Revolt bikes models from 2014, here.
Model range prices
Giant Revolt 2 2014 is the cheapest bike model and costs 1025$. Giant Revolt 0 2014 is the most expensive one and costs 3200$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2014 and its price was 1380$. If we compare this with the average Gravel bike cost we notice that the price is 78.41% lower.
Revolt 1 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Revolt 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolt 1 has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Giant Revolt 1 bike has 5 sizes, in the range of 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
