Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset R350, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-grade aluminum w/ rack mounts
Suspension Fork
Advanced-grade composite, with alloy OverDrive steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano R350
Front Derailleur
Shimano R4600
Shift Levers
Shimano R460
Cassette
Shimano HG50 11x34, 10-speed
Crank
Shimano R460, 34/48
Bottom Bracket
Shimano, Sealed
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker, Sealed bearing
Rear Hub
Giant Performance Tracker, Sealed bearing
Rims
Giant P-X2, Double wall
Spokes
Sapim Race, 14/15g
Tires
Schwalbe Smart Sam Performance, 700x35
Brakes
Brakes
TRP Spyre, Mechanical disc, [F] 160mm, [R] 140mm
Brake Levers
Shimano R460 w/ Tektro RL720 sub lever
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect XR Ergo-Control, 31.8mm
Seat
Saddle
Giant Contact, Forward
Seatpost
Giant Connect, Composite, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Top Tube Length | 554 mm | 564 mm | 569 mm | 579 mm | 584 mm |
| Seat Tube Angle | 72 ° | 72 ° | 71.5 ° | 71 ° | 71 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 165 mm | 178 mm | 196 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1041 mm | 1046 mm | 1046 mm | 1052 mm | 1057 mm |
| Standover Height | 729 mm | 749 mm | 765 mm | 780 mm | 798 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |

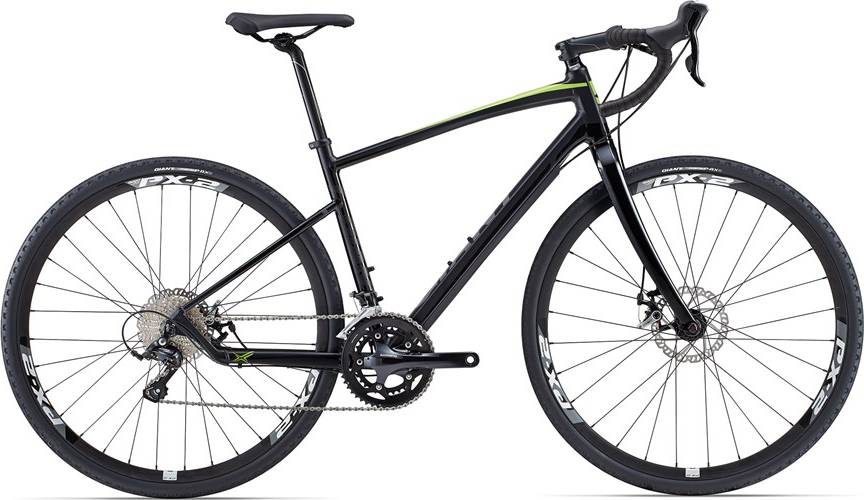

Model Overview
Revolt 1 (2015) completes the Giant Revolt model. Giant released 68 bikes variations of this model so far. Take a sneak peek at all Giant Revolt bikes models from 2014, by clicking here.
Model range prices
Giant Revolt 2 2014 is the cheapest bike model and costs 1025$. Giant Revolt 0 2014 is the most expensive one and costs 3200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2014 and its price was 1470$. Comparing the average cost of a Gravel bike to this one, you will see that Revolt 1 (2015) price is 67.48% lower.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Revolt 1 (2015) 2014 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt 1 (2015) comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
