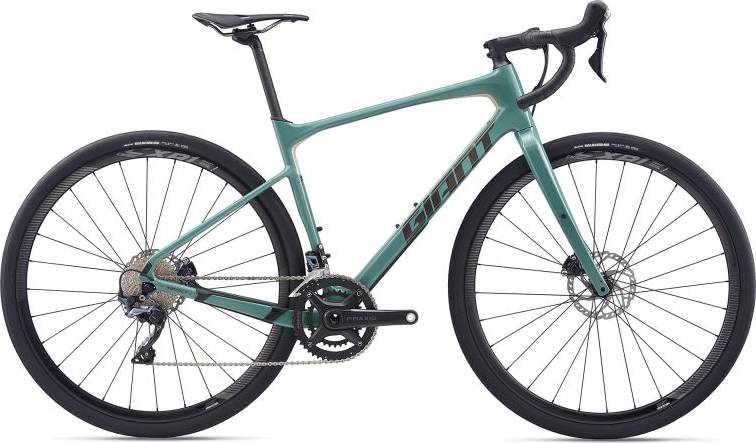

Giant Revolt Advanced 0 2020
2020 Road
Estimate price |
3,650$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, 12x142mm thru-axle, disc
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano Ultegra, 11x34
Crank
Praxis Zayante Carbon, 32/48
Bottom Bracket
Praxis M30 BB86, press fit
Chain
KMC X11SL-1
Pedals
N/A
Wheels
Front Hub
Giant CXR-1 WheelSystem
Rear Hub
Giant CXR-1 WheelSystem
Rims
Giant CXR-1 Composite WheelSystem
Spokes
Giant CXR-1 WheelSystem
Tires
Maxxis Velocita, 700X40
Brakes
Brakes
Shimano Ultegra hydraulic
Brake Levers
Shimano Ultegra hydraulic
Cockpit
Stem
Giant Contact, 8-degree
Handlebar
Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
Seat
Saddle
Giant Contact SL (neutral)
Seatpost
Giant D-Fuse SL, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 71 mm | 71 mm | 71 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 598 mm | 612 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1010 mm | 1016 mm | 1027 mm | 1032 mm | 1042 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 748 mm | 764 mm | 782 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |
Model Overview
Revolt Advanced 0 is a Giant Revolt model. Giant released 68 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Giant Revolt 2 2020 has a starting price of 1000$. Giant Revolt Advanced Pro Force 2020 on the other hand is the most expensive at 5500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Giant Revolt Advanced 0 price was 3650$. Doing a quick comparison, we notice that Revolt Advanced 0 price is 48.25% more expensive than the average cost of a Gravel bike.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Revolt Advanced 0 weighs 8.5 kg (18.74 lbs) and is slightly heavier than the average. In conclusion, the average Gravel bike weighs 4.55% less than Revolt Advanced 0.
Revolt Advanced 0 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Revolt Advanced 0 bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Revolt Advanced 0 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
