Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
SM
159cm - 171cm
MD
169cm - 181cm
MD/LG
174cm - 186cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite, flat mount disc, 12x142mm thru-axle
Suspension Fork
Advanced-Grade Composite, full-composite OverDrive steerer, flat mount disc 12mm thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Apex
Front Derailleur
N/A
Shift Levers
SRAM Apex, 1x11
Cassette
SRAM XG-1150 10-42, 11-Speed
Crank
SRAM Apex, 40
Bottom Bracket
SRAM GXP
Chain
SRAM PC1130
Pedals
N/A
Wheels
Front Hub
Giant P-X2 700C wheelset 12mm thru-axles
Rear Hub
Giant P-X2 700C wheelset 12mm thru-axles
Rims
Giant P-X2 700C wheelset
Spokes
Giant P-X2 700C wheelset
Tires
Giant CrossCut Gravel 1, 700x40, tubeless
Brakes
Brakes
SRAM Apex 1, hydraulic
Brake Levers
SRAM Apex 1
Cockpit
Stem
Giant Connect, 8-degree
Handlebar
Giant Contact XR D-Fuse, 31.8mm5-degree back sweep, flare drop
Seat
Saddle
Giant Contact (neutral)
Seatpost
Giant D-Fuse, composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 605 mm | 616 mm | 621 mm | 631 mm | 647 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 71 mm | 71 mm | 71 mm |
| Stack | 544 mm | 554 mm | 568 mm | 584 mm | 598 mm | 612 mm |
| Reach | 369 mm | 371 mm | 377 mm | 381 mm | 387 mm | 398 mm |
| Top Tube Length | 526 mm | 536 mm | 546 mm | 561 mm | 571 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 135 mm | 150 mm | 165 mm | 180 mm | 195 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1010 mm | 1016 mm | 1027 mm | 1032 mm | 1042 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 730 mm | 748 mm | 764 mm | 782 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 169 cm | 174 cm | 179 cm | 189 cm |
| Rider Max Height | 166 cm | 171 cm | 181 cm | 186 cm | 191 cm | 200 cm |

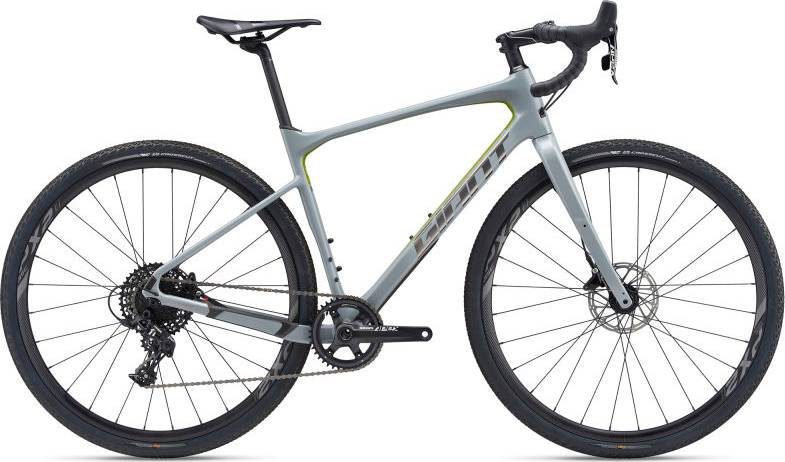

Model Overview
Revolt Advanced 1 is a Giant Revolt model. Giant launched 68 bikes of this model so far. You can easily view all of the Giant Revolt bikes models from 2019, here.
Model range prices
Giant Revolt Advanced 2 2019 is the cheapest bike model and costs 2100$. Giant Revolt Advanced 0 2019 is the most expensive one and costs 3465$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 2625$. Comparing this to the average Gravel bike price, we see that the price is 6.62% more expensive.
Overview of components
Fork material
Revolt Advanced 1 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Revolt Advanced 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt Advanced 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 6 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
