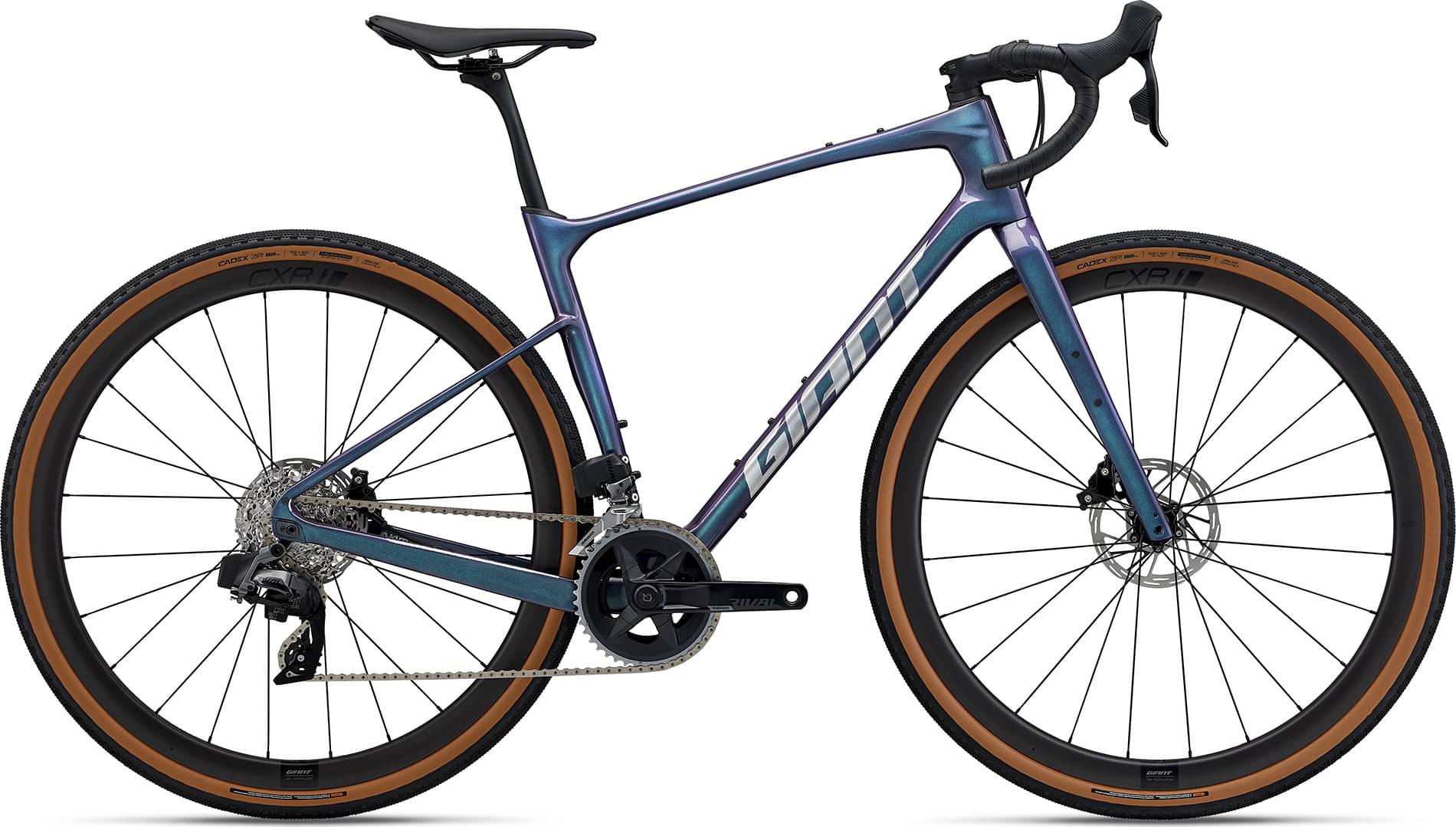

Giant Revolt, Advanced Pro 1 2024
2024 Road
Estimate price |
4,490$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Short
155cm - 166cm
XS Long
155cm - 166cm
SM Short
159cm - 171cm
SM Long
159cm - 171cm
MD Short
169cm - 181cm
MD Long
169cm - 181cm
MD/LG
174cm - 186cm
MD/LG
174cm - 186cm
LG Short
179cm - 191cm
LG Long
179cm - 191cm
XL Short
189cm - 200cm
XL Long
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Suspension Fork
Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS
Shift Levers
SRAM Rival eTap AXS, 2x12
Cassette
SRAM Rival, 12-speed, 10x36
Crank
SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1
Pedals
N/A
Wheels
Front Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Rims
Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Spokes
Sapim CX-Ray
Tires
CADEX AR, 700x40c, tubeless
Brakes
Brakes
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
Brake Levers
SRAM Rival eTap AXS hydraulic
Cockpit
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Handlebar
Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach SL
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Short | XS Long | SM Short | SM Long | MD Short | MD Long | MD/LG | MD/LG | LG Short | LG Long | XL Short | XL Long |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.5 mm | 1.5 mm | 1.52 mm | 1.52 mm | 1.55 mm | 1.55 mm | 1.56 mm | 1.56 mm | 1.55 mm | 1.55 mm |
| Bottom Bracket Height | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm | 269 mm | 268 mm |
| Front Center | 612 mm | 612 mm | 608 mm | 608 mm | 614 mm | 614 mm | 619 mm | 619 mm | 629 mm | 629 mm | 644 mm | 644 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 78 mm | 82 mm | 72 mm | 75 mm | 68 mm | 72 mm | 65 mm | 68 mm | 65 mm | 68 mm | 65 mm | 68 mm |
| Stack | 552 mm | 552 mm | 566 mm | 566 mm | 582 mm | 582 mm | 598 mm | 598 mm | 612 mm | 612 mm | 626 mm | 626 mm |
| Reach | 377 mm | 377 mm | 377 mm | 377 mm | 383 mm | 383 mm | 387 mm | 387 mm | 393 mm | 393 mm | 403 mm | 403 mm |
| Top Tube Length | 536 mm | 536 mm | 546 mm | 546 mm | 556 mm | 556 mm | 571 mm | 571 mm | 581 mm | 581 mm | 596 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 430 mm | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 150 mm | 150 mm | 165 mm | 165 mm | 180 mm | 180 mm | 195 mm | 195 mm |
| Chainstay Length | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm |
| Wheelbase | 1020 mm | 1030 mm | 1016 mm | 1026 mm | 1022 mm | 1032 mm | 1027 mm | 1037 mm | 1037 mm | 1047 mm | 1052 mm | 1062 mm |
| Bottom Bracket Drop | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm | 80 mm | 81 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 155 cm | 159 cm | 159 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 189 cm | 189 cm |
| Rider Max Height | 166 cm | 166 cm | 171 cm | 171 cm | 181 cm | 181 cm | 186 cm | 186 cm | 191 cm | 191 cm | 200 cm | 200 cm |
Model Overview
Revolt, Advanced Pro 1 completes the Giant Revolt model. 68 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Giant Revolt 2 2024 is the most economical model, with a starting price of 1229$. Giant Revolt X, Advanced Pro 0 2024 on the other hand costs 7000$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Giant released this model in 2024, its price was 4483$. Comparing this to the average Gravel bike price, we see that the price is 82.09% higher.
Revolt, Advanced Pro 1 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Revolt, Advanced Pro 1 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolt, Advanced Pro 1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Revolt, Advanced Pro 1 comes in 12 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
