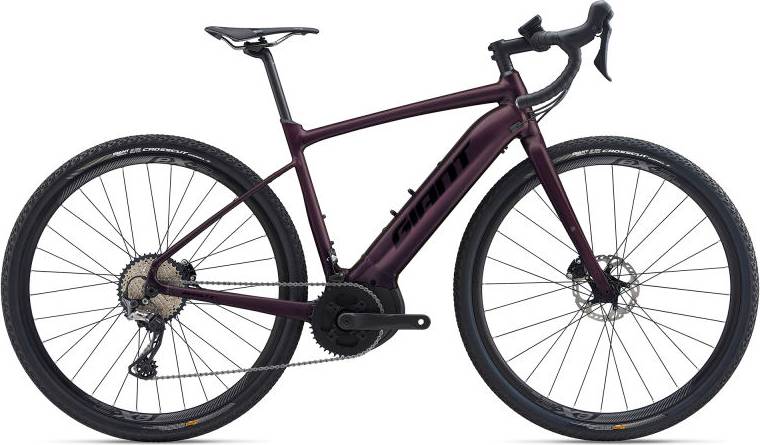

Giant Revolt E+ Pro 45kmh 2021
2021 E-bike
Estimate price |
4,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX Di2, Shimano -
Suspension Rigid -
Motor Giant 250W 80Nm mid-drive -
Battery Giant EnergyPak Smart Compact 500Wh -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL aluminum
Suspension Fork
Advanced-grade composite,12x100 thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano GRX Di2 RD-RX817
Front Derailleur
-
Shift Levers
Shimano GRX Di2 ST-RX815-R/L 1x11speed
Cassette
Shimano CS-M5100-11, 11-42, 11-Speed
Crank
Shimano FC-EM600 crankarmShimano SM-CRE80-R, 47T chainring
Bottom Bracket
N/A
Chain
KMC e.11 Turbo, EcoProteq
Pedals
Aluminum Platform
Wheels
Front Hub
Giant Performance Tracker Road, Sealed Bearing
Rear Hub
Giant Performance Tracker Road, Sealed Bearing
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Spokes
Sapim E-Lite [r] Race [f]
Tires
Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex
Brakes
Brakes
Shimano BR-RX810 180mm hydraulic disc
Brake Levers
Shimano ST-RX815 hydraulic disc
Cockpit
Stem
Giant Contact
Handlebar
Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
Seat
Saddle
Giant Contact SL, Neutral
Seatpost
Giant D-Fuse SL, composite
Motor & Battery
Motor
Giant SyncDrive Pro
Battery
Giant EnergyPak Smart Compact 500Wh
Remote
Wireless display compatible
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.57 mm | 1.59 mm | 1.59 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 609 mm | 615 mm | 636 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72.5 mm | 72.5 mm | 72.5 mm | 72.5 mm |
| Stack | 572 mm | 586 mm | 614 mm | 628 mm |
| Reach | 374 mm | 374 mm | 386 mm | 396 mm |
| Top Tube Length | 544 mm | 554 mm | 574 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 475 mm | 525 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 150 mm | 180 mm | 195 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1049 mm | 1055 mm | 1076 mm | 1091 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm | 85 mm |
| Standover Height | 741 mm | 761 mm | 803 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
Revolt E+ Pro 45kmh belongs to the Giant E Revolt model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Giant Revolt E+ Pro 45kmh 2021 is the most economical model, with a starting price of 4800$. Giant Revolt E+ 2021 on the other hand costs 6446$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Giant released this model in 2021, its price was 4800$. Comparing this to the average Gravel e-bike price, we see that the price is 31.8% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Revolt E+ Pro 45kmh model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolt E+ Pro 45kmh has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 159 cm – 200 cm (5.22 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
