Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 40mm -
Fork RockShox Rudy XPLR
-
Groupset X1, Apex -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Short
155cm - 166cm
XS Long
155cm - 166cm
SM Short
159cm - 171cm
SM Long
159cm - 171cm
MD Short
169cm - 181cm
MD Long
169cm - 181cm
MD/LG
174cm - 186cm
MD/LG
174cm - 186cm
LG Short
179cm - 191cm
LG Long
179cm - 191cm
XL Short
189cm - 200cm
XL Long
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Suspension Fork
RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X1 Eagle
Front Derailleur
N/A
Shift Levers
SRAM Apex, 1x12
Cassette
SRAM PG-1210, 12-speed, 11x50
Crank
SRAM Apex D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM NX Eagle
Pedals
no pedal [GA, Pan-Eu] platform pedal [GU, GV, GJ] pedal w/toeclip and strap [All other GSC]
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Giant P-X2 EVO Disc wheelset
Spokes
Stainless
Tires
Maxxis Rambler, 700x45c, tubeless
Brakes
Brakes
SRAM hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
SRAM Apex, left lever dropper switch
Cockpit
Stem
Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
Handlebar
Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
Grips
cork tape with gel
Seat
Saddle
Giant Approach
Seatpost
Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Short | XS Long | SM Short | SM Long | MD Short | MD Long | MD/LG | MD/LG | LG Short | LG Long | XL Short | XL Long |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.49 mm | 1.49 mm | 1.51 mm | 1.51 mm | 1.53 mm | 1.53 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 281 mm | 280 mm | 281 mm | 280 mm | 281 mm | 280 mm | 281 mm | 280 mm | 281 mm | 280 mm | 281 mm | 280 mm |
| Front Center | 607 mm | 607 mm | 608 mm | 608 mm | 610 mm | 610 mm | 615 mm | 615 mm | 625 mm | 625 mm | 641 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 80.3 mm | 83.7 mm | 76.9 mm | 80.3 mm | 73.5 mm | 76.8 mm | 70.1 mm | 73.4 mm | 70.1 mm | 73.4 mm | 70.1 mm | 73.4 mm |
| Stack | 545 mm | 545 mm | 556 mm | 556 mm | 572 mm | 572 mm | 588 mm | 588 mm | 603 mm | 603 mm | 617 mm | 617 mm |
| Reach | 382 mm | 382 mm | 383 mm | 383 mm | 385 mm | 385 mm | 389 mm | 389 mm | 395 mm | 395 mm | 406 mm | 406 mm |
| Top Tube Length | 539 mm | 539 mm | 549 mm | 549 mm | 556 mm | 556 mm | 571 mm | 571 mm | 581 mm | 581 mm | 596 mm | 596 mm |
| Seat Tube Angle | 74 ° | 73.9 ° | 73.5 ° | 73.4 ° | 73.5 ° | 73.4 ° | 73 ° | 72.9 ° | 73 ° | 72.9 ° | 73 ° | 72.9 ° |
| Seat Tube Length | 430 mm | 430 mm | 450 mm | 450 mm | 470 mm | 470 mm | 490 mm | 490 mm | 510 mm | 510 mm | 530 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.4 ° | 71 ° | 70.9 ° | 71.5 ° | 71.4 ° | 72 ° | 71.9 ° | 72 ° | 71.9 ° | 72 ° | 71.9 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm | 130 mm | 130 mm | 145 mm | 145 mm | 160 mm | 160 mm |
| Chainstay Length | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm | 421 mm | 431 mm |
| Wheelbase | 1019 mm | 1029 mm | 1020 mm | 1030 mm | 1022 mm | 1032 mm | 1027 mm | 1037 mm | 1037 mm | 1047 mm | 1053 mm | 1063 mm |
| Bottom Bracket Drop | 68 mm | 69 mm | 68 mm | 69 mm | 68 mm | 69 mm | 68 mm | 69 mm | 68 mm | 69 mm | 68 mm | 69 mm |
| Standover Height | 710 mm | 716 mm | 730 mm | 733 mm | 746 mm | 752 mm | 763 mm | 769 mm | 781 mm | 788 mm | 799 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 155 cm | 159 cm | 159 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 189 cm | 189 cm |
| Rider Max Height | 166 cm | 166 cm | 171 cm | 171 cm | 181 cm | 181 cm | 186 cm | 186 cm | 191 cm | 191 cm | 200 cm | 200 cm |
Model Overview

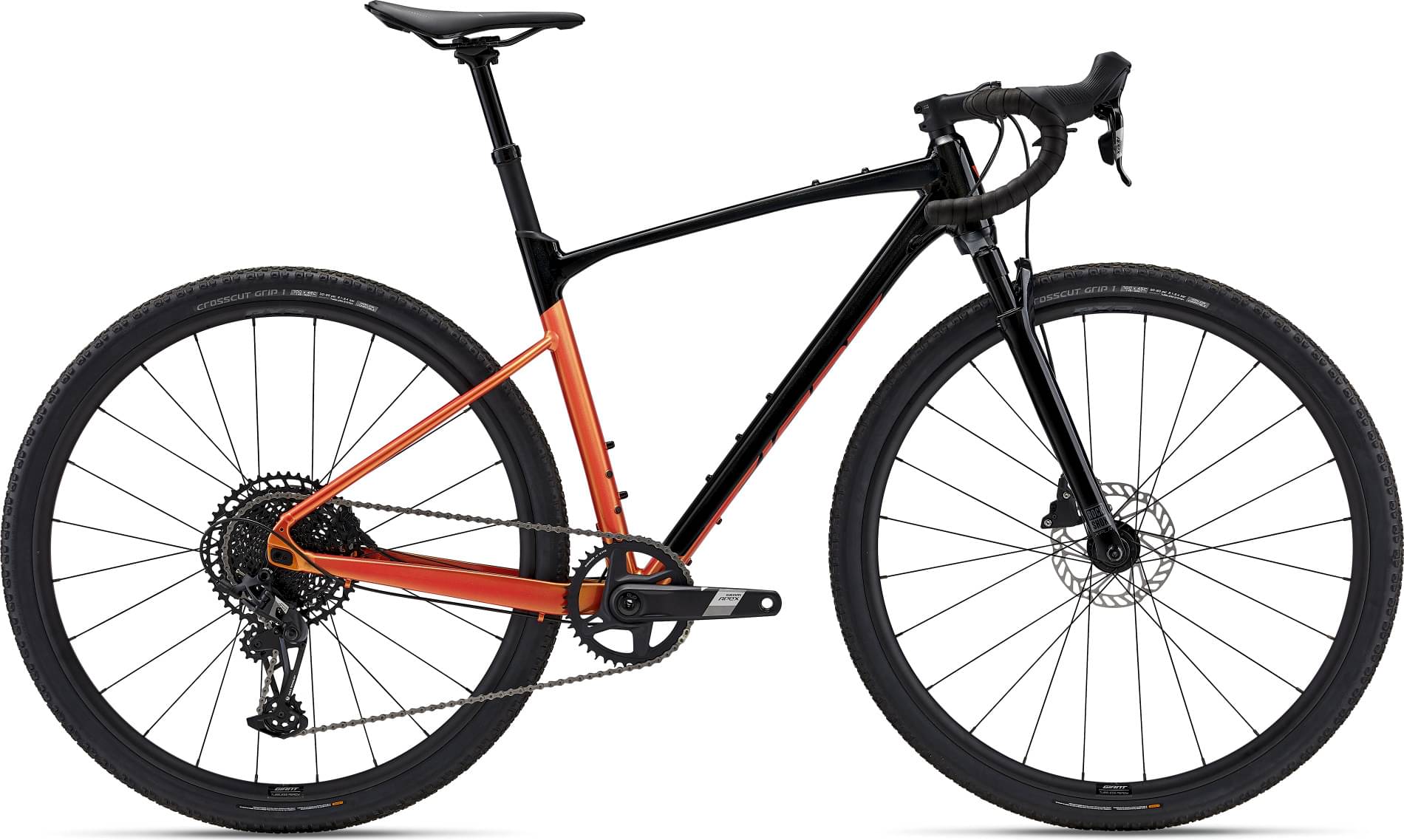

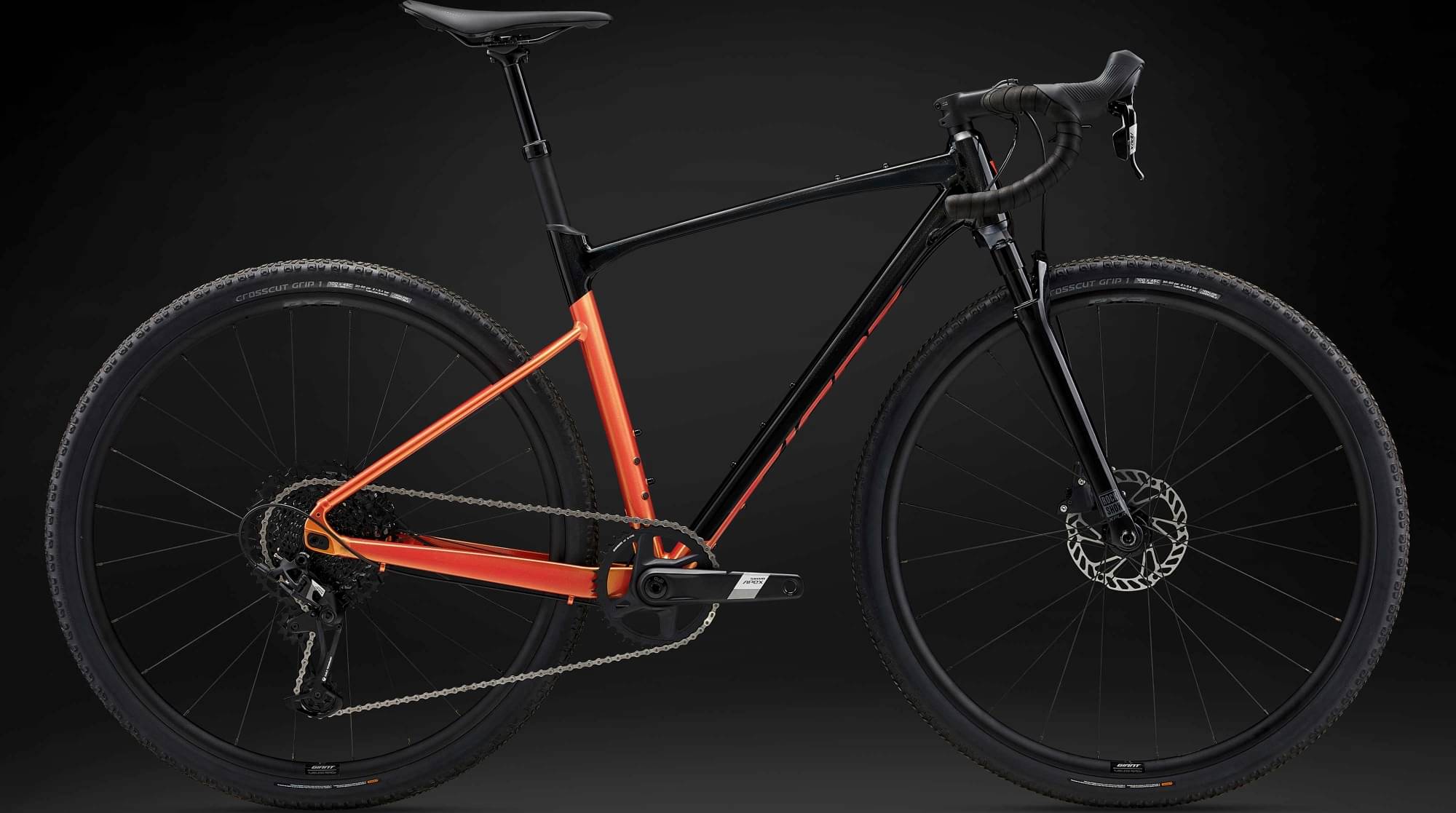

Revolt X 1 is part of the Giant Revolt model. Giant released 68 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Giant Revolt 2 2024 is the most affordable bike of this model and has a price of 1229$. On the other hand, Giant Revolt X, Advanced Pro 0 2024, is the most expensive and costs 7000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Revolt X 1 price was 2386$. If we compare this with the average Gravel bike cost we notice that the price is 3.19% lower.
Revolt X 1 components
Fork
This bike has the RockShox Rudy XPLR fork installed. The fork’s travel is 40mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Giant Revolt X 1 2024, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolt X 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 12 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
