Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
166cm - 174cm
MD
172cm - 180cm
MD/LG
178cm - 186cm
LG
184cm - 192cm
XL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

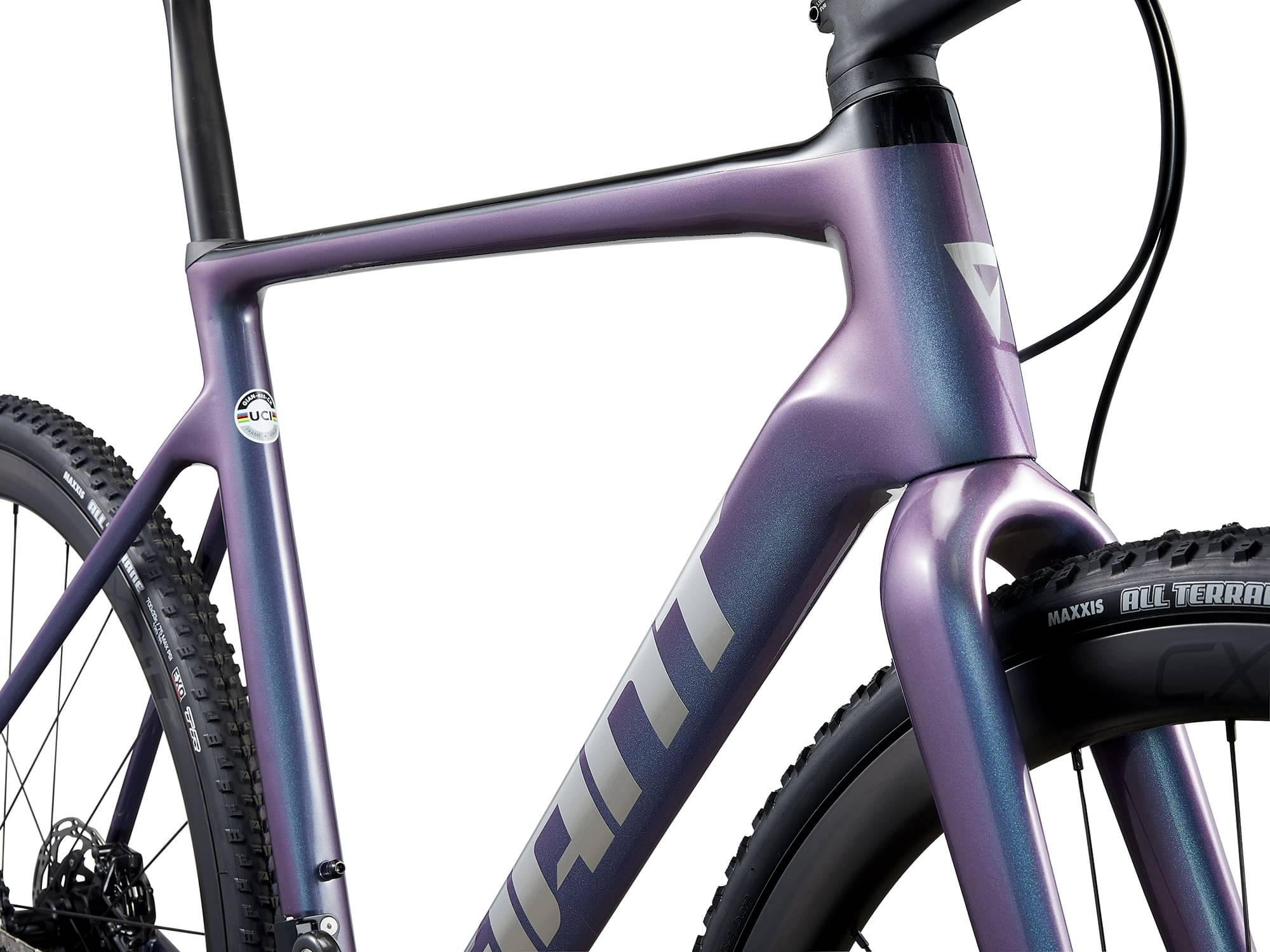

Frame
Frame
Advanced-grade composite, 12mm thru-axle, disc
Suspension Fork
Advanced-grade composite, full-composite OverDrive 2 steerer, disc
Rear Shock
N/A
Drivetrain

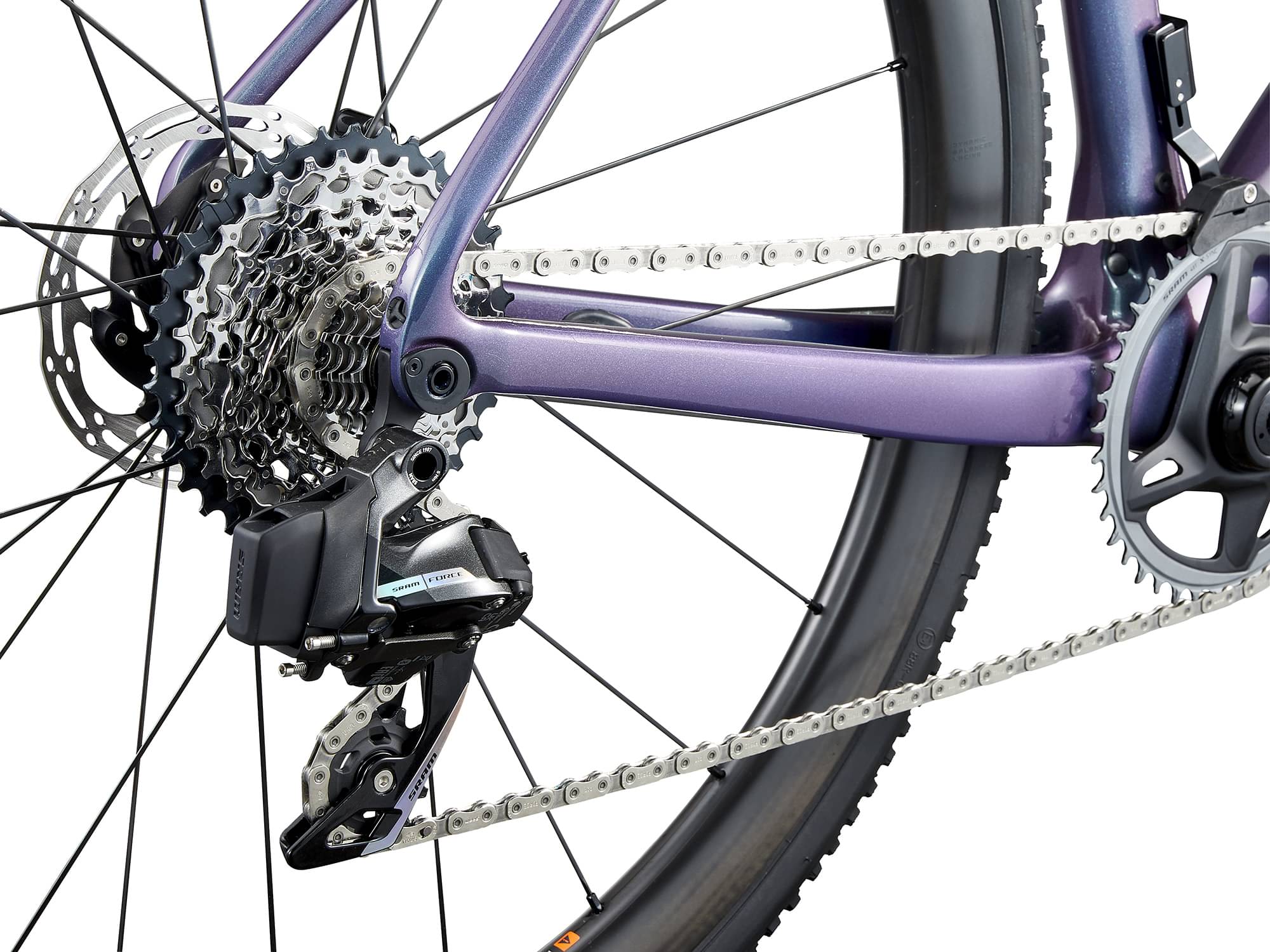

Rear Derailleur
SRAM Force eTap AXS
Front Derailleur
N/A
Shift Levers
SRAM Force eTap AXS, 1x12
Cassette
SRAM Force, 12-speed, 10x36

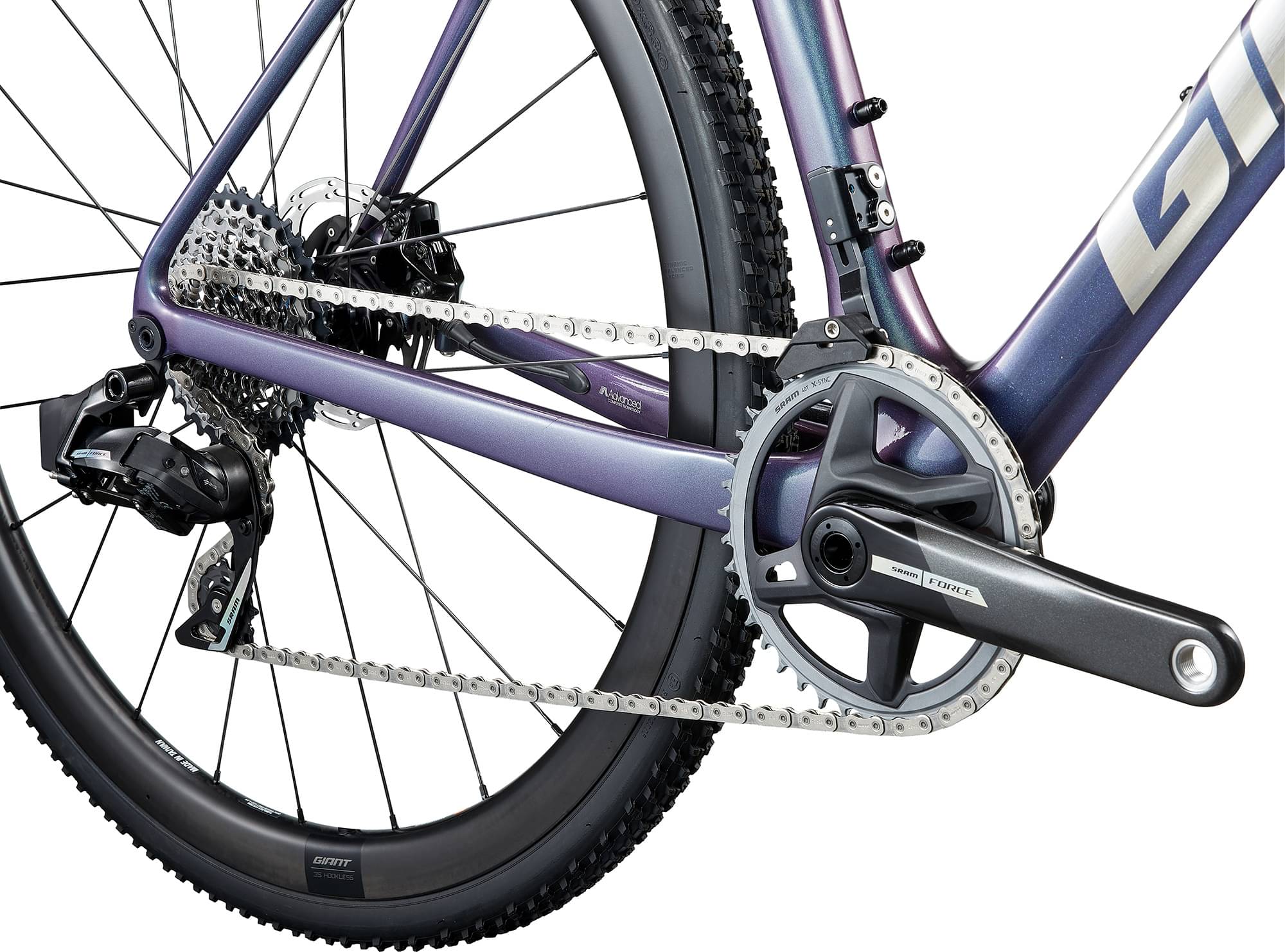

Crank
SRAM Force D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Force D1
Pedals
N/A
Wheels
Front Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Rear Hub
[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
Rims
Giant CXR 1 Carbon Disc WheelSystem, 25mm inner width, hookless/ tubeless
Spokes
Sapim CX-Ray
Tires
Maxxis All-Terrene, 700x33c, tubeless
Brakes
Brakes
SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]140mm
Brake Levers
SRAM Force eTap AXS hydraulic

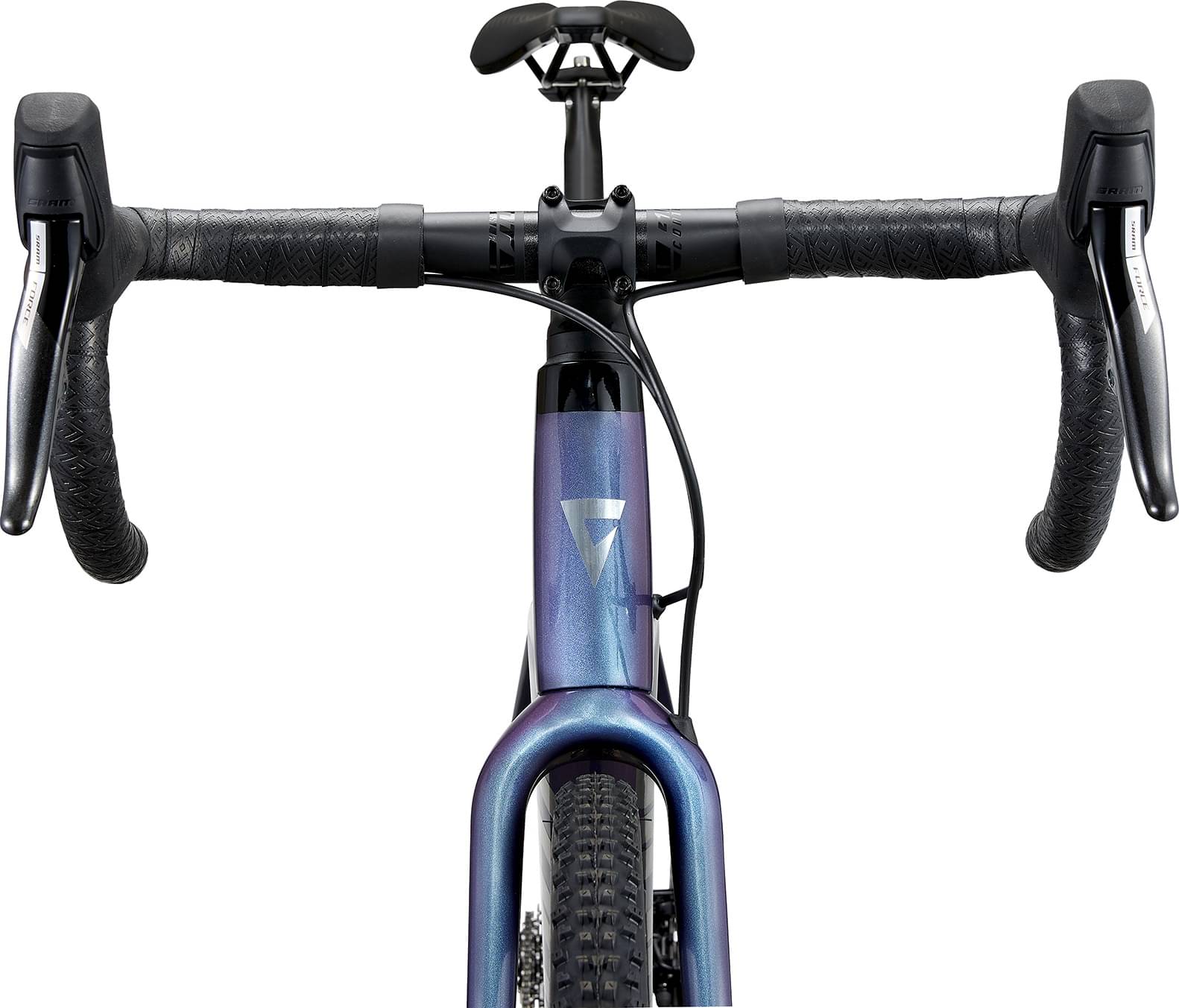

Cockpit
Stem
Giant Contact SL S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
Handlebar
Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips
Stratus Lite 3.0
Seat
Saddle
Giant Approach SL
Seatpost
Giant D-Fuse SLR, composite, -5/+15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.48 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 591 mm | 597 mm | 607 mm | 617 mm | 632 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68.3 mm | 65.1 mm | 61.8 mm | 58.6 mm | 58.6 mm |
| Stack | 543 mm | 559 mm | 575 mm | 592 mm | 606 mm |
| Reach | 373 mm | 378 mm | 388 mm | 398 mm | 409 mm |
| Top Tube Length | 533 mm | 548 mm | 563 mm | 578 mm | 593 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 133 mm | 148 mm | 163 mm | 178 mm | 193 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1017 mm | 1023 mm | 1033 mm | 1043 mm | 1058 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 791 mm | 810 mm | 829 mm | 835 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 166 cm | 172 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 174 cm | 180 cm | 186 cm | 192 cm | 198 cm |
Model Overview
TCX, Advanced Pro 0 completes the Giant Tcx model. Giant released 95 bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Giant TCX, Advanced Pro 1 2024 is the cheapest bike model and costs 3543$. Giant TCX, Advanced Pro 0 2024 is the most expensive one and costs 6000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Giant TCX, Advanced Pro 0 price was 6000$. Comparing this to the average Cyclocross bike price, we see that the price is 198.21% more expensive.
Overview of components
Fork material
TCX, Advanced Pro 0 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on TCX, Advanced Pro 0 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 166 cm – 198 cm (5.45 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
