Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SLR-grade aluminum, with hidden rack mounts
Suspension Fork
Composite, with Alloy OverDrive steerer
Rear Shock
N / A
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11x28, 11-speed
Crank
FSA Omega, 36/46
Bottom Bracket
Press Fit
Chain
KMC X11L
Pedals
N/A
Wheels
Front Hub
Giant Sport Tracker Disc, 32h
Rear Hub
Giant Sport Tracker Disc, 32h
Rims
Giant SX-2 Disc
Spokes
Stainless Steel, 14g
Tires
Maxxis Mud Wrestler, 700x33
Brakes
Brakes
TRP Spyre-C, Mechanical disc, 140mm
Brake Levers
Shimano 105
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect, 31.8mm
Seat
Saddle
Giant Performance Road
Seatpost
Giant D-Fuse SL, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.483 mm | 1.486 mm | 1.491 mm | 1.485 mm |
| Stack | 540 mm | 556 mm | 572 mm | 589 mm | 603 mm |
| Reach | 370 mm | 375 mm | 385 mm | 395 mm | 406 mm |
| Top Tube Length | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1014 mm | 1019 mm | 1030 mm | 1040 mm | 1055 mm |
| Standover Height | 757 mm | 803 mm | 820 mm | 833 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |

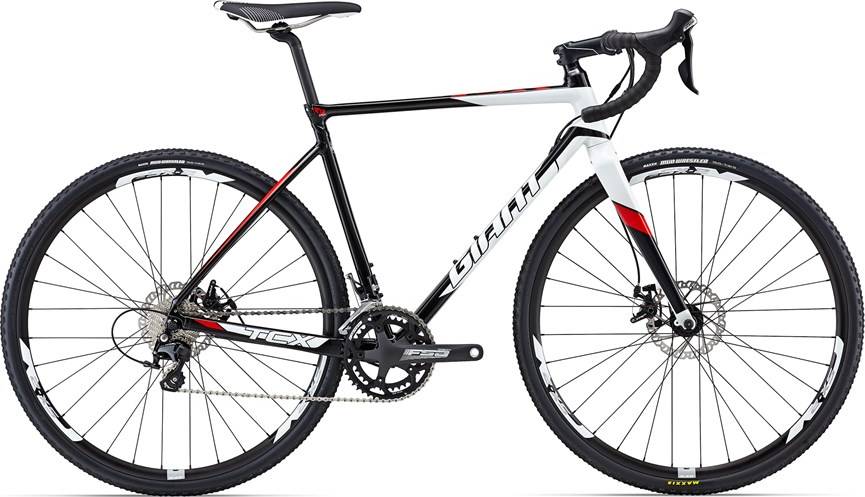

Model Overview
TCX SLR 2 is part of the Giant Tcx model. There are 95 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Giant TCX Espoir 26 2016 is the most affordable bike of this model and has a price of 710$. On the other hand, Giant TCX Advanced Pro 1 2016, is the most expensive and costs 4500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
If you want to purchase a solid Cyclocross bike, it is important to know that the average cost is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2016 for 1600$. Comparing this to the average Cyclocross bike price, we see that the price is 25.75% smaller.
TCX SLR 2 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The TCX SLR 2 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant TCX SLR 2 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
TCX SLR 2 comes in 5 sizes, that range from 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
