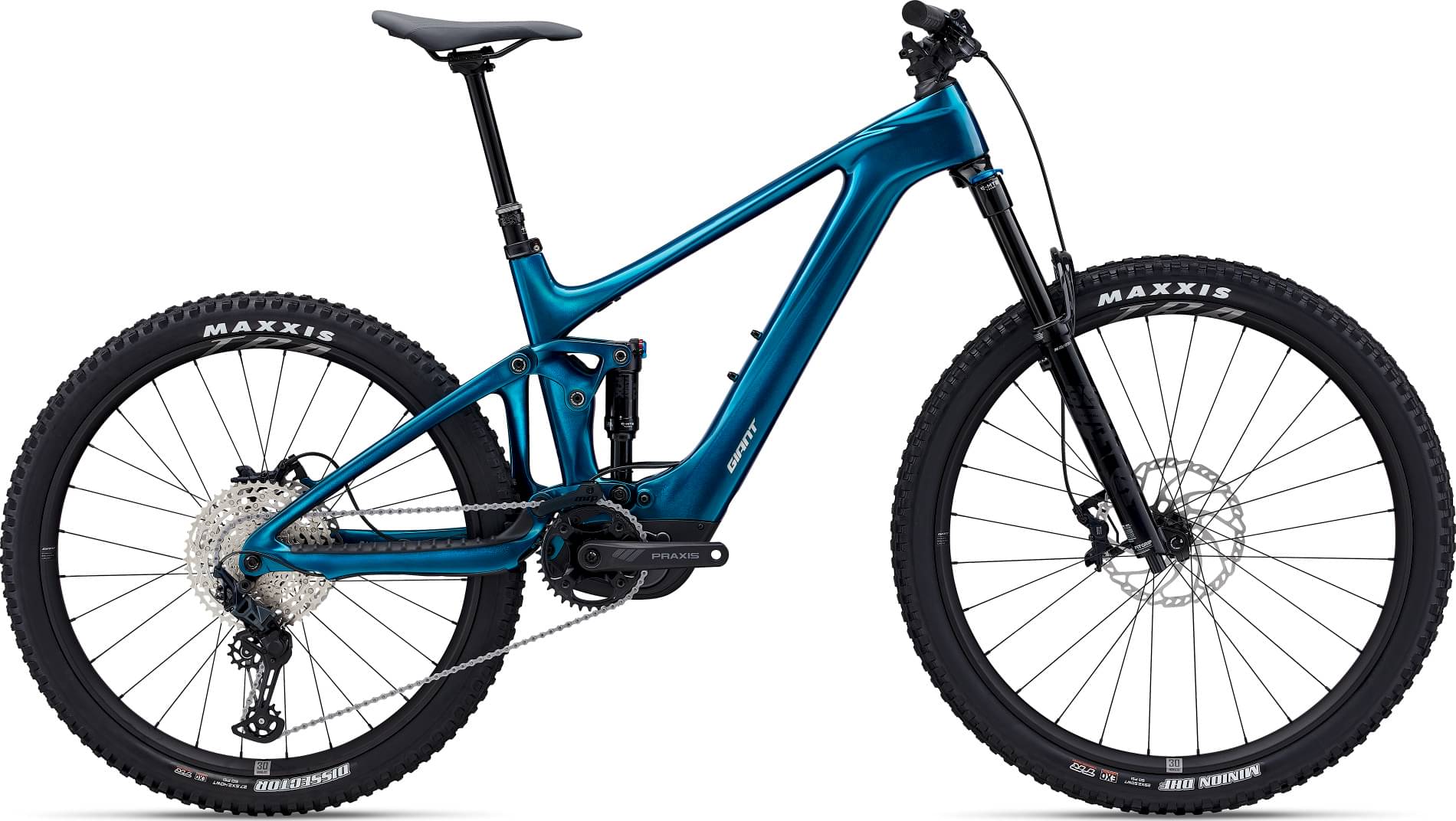

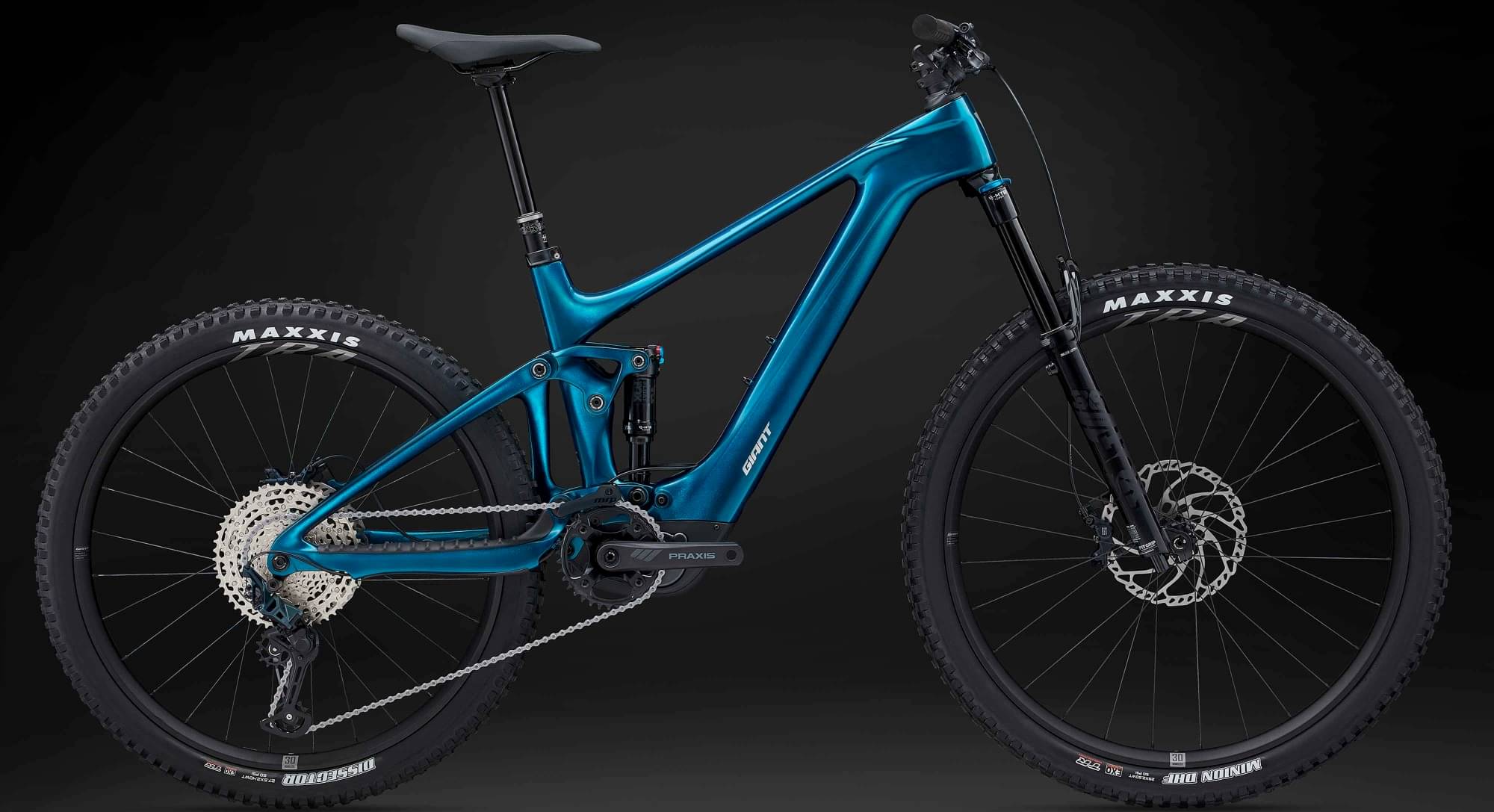

Giant Trance X Advanced, E+ Elite 2 2024
2024 E-bike
Estimate price |
8,142$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX, Praxis -
Suspension Full -
Motor Yamaha 250W 85Nm mid-drive -
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 174cm
SM Low
163cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 190cm
LG Low
179cm - 190cm
XL High
187cm - 198cm
XL Low
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Suspension Fork
Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110
Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed, Shadow+
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano SLX
Cassette
Shimano, CS-M6100, 10-51T, 12-speed
Crank
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket
n/a
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized
Pedals
n/a
Wheels
Front Hub
Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
Rear Hub
Giant TRA, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle
Rims
Giant TRA, Hookless Clincher, 30mm inner width, Hollow Side-Wall Design for improved strength and flat protection
Spokes
Sapim E-Lite [R] Race [F], e-bike optimized
Tires
Maxxis Minion DHF 29X2.50"" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4"" Foldable, TLR, EXO [R]
Brakes
Brakes
Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R]
Brake Levers
Shimano SLX, I-spec EV
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact SL 35 Trail, 35x780mm
Grips
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Seat
Saddle
Giant Romero
Seatpost
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
Motor & Battery
Motor
Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger
EnergyPak 4A smart charger compact
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.383 mm | 1.31 mm | 1.337 mm | 1.271 mm | 1.302 mm | 1.234 mm | 1.265 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 748 mm | 747 mm | 765 mm | 768 mm | 797 mm | 797 mm | 828 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm | 108 mm | 113.1 mm |
| Stack | 601 mm | 607 mm | 605 mm | 611 mm | 619 mm | 625 mm | 633 mm | 639 mm |
| Reach | 447 mm | 439 mm | 462 mm | 457 mm | 487 mm | 480 mm | 513 mm | 505 mm |
| Top Tube Length | 575 mm | 577 mm | 605 mm | 607 mm | 634 mm | 636 mm | 663 mm | 665 mm |
| Seat Tube Angle | 78 ° | 77.2 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm | 130 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1195 mm | 1194 mm | 1212 mm | 1215 mm | 1244 mm | 1244 mm | 1275 mm | 1275 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 735 mm | 726 mm | 742 mm | 733 mm | 741 mm | 732 mm | 750 mm | 741 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 190 cm | 190 cm | 198 cm | 198 cm |
Model Overview
Trance X Advanced, E+ Elite 2 completes the Giant E Trance model. Giant released 46 e-bikes variations of this model so far. You can easily view all of the Giant E Trance e-bikes models from 2024, here.
Model range prices
Giant Trance X Advanced, E+ Elite 3 2024 is the most economical model, with a starting price of 6352$. Giant Trance X Advanced, E+ Elite 0 2024 on the other hand costs 12288$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2024 and its price was 7411$. Comparing the average cost of a Trail e-bike to this one, you will see that Trance X Advanced, E+ Elite 2 price is 120.24% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float Performance, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Trance X Advanced, E+ Elite 2 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trance X Advanced, E+ Elite 2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Giant model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
