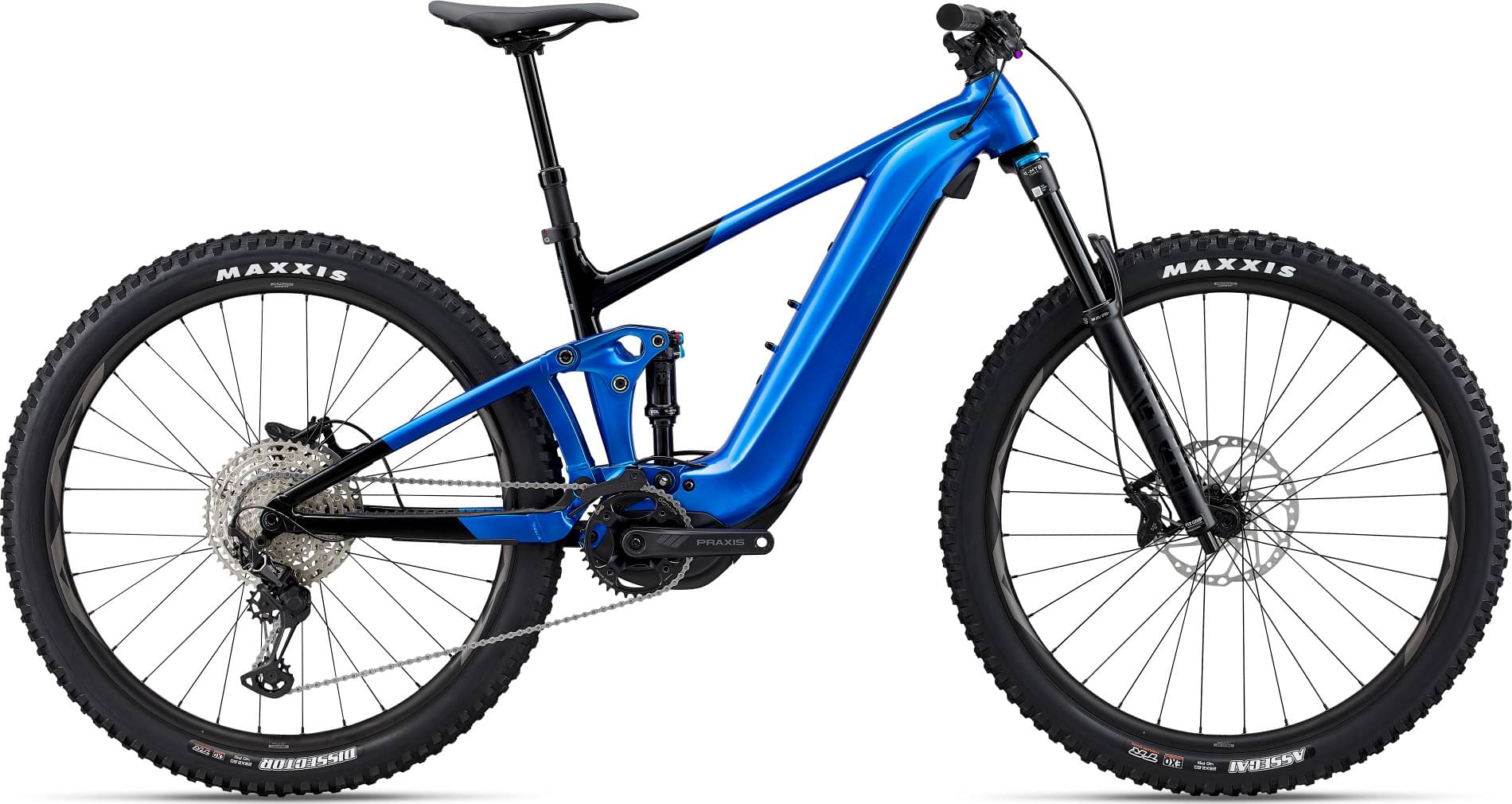

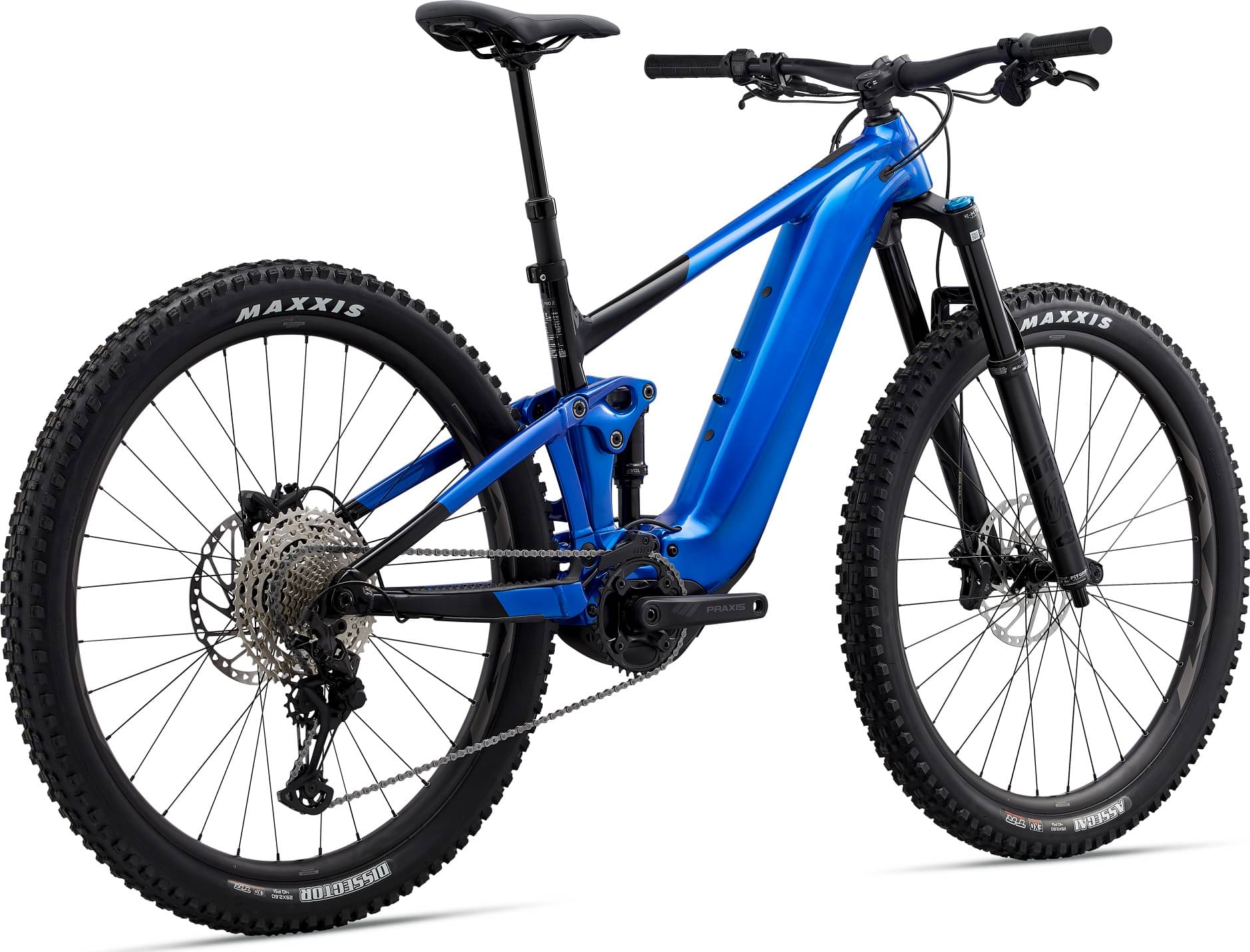

Giant Trance X E+ 2 750 2022
2022 E-bike
Estimate price |
6,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork Fox Rhythm Float 36 -
Groupset XT, MRP -
Suspension Hardtail -
Motor Yamaha 250W 85Nm mid-drive -
Battery EnergyPak Smart 750Wh, EnergyPak Plus range extender compatible -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
163cm - 174cm
SM Low
163cm - 174cm
MD High
171cm - 182cm
MD Low
171cm - 182cm
LG High
179cm - 190cm
LG Low
179cm - 190cm
XL High
187cm - 198cm
XL Low
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible
Suspension Fork
Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimised
Rear Shock
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, Shadow+
Front Derailleur
MRP HD2 co-moulded chain guide
Shift Levers
Shimano SLX
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Crank
Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket
-
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Pedals
Flat pedal
Wheels
Front Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rear Hub
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Rims
Giant AM 29", Tubeless ready, 30mm inner width
Spokes
Sapim E-Lite [R] Race [F]
Tires
Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R]
Brakes
Brakes
Tektro HD-M545 4 piston hydraulic disc brakes, 203mm rotors
Brake Levers
Tektro HD-M545
Cockpit
Stem
Giant Contact SL 35
Handlebar
Giant Contact 35 Trail, 35x780mm
Grips
Giant Tactal Pro-E, single lock-on
Seat
Saddle
Giant Romero Trail
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Motor & Battery
Motor
SyncDrive Pro, 85Nm, powered by Yamaha
Battery
EnergyPak Smart 750Wh, EnergyPak Plus range extender compatible
Charger
EnergyPak 6A smart charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.38 mm | 1.31 mm | 1.337 mm | 1.256 mm | 1.288 mm | 1.207 mm | 1.235 mm |
| Front Center | 734 mm | 734 mm | 765 mm | 768 mm | 797 mm | 797 mm | 829 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm | 122.4 mm | 117 mm |
| Stack | 601 mm | 606 mm | 605 mm | 611 mm | 614 mm | 621 mm | 624 mm | 630 mm |
| Reach | 447 mm | 439 mm | 462 mm | 457 mm | 489 mm | 482 mm | 517 mm | 510 mm |
| Top Tube Length | 575 mm | 577 mm | 605 mm | 610 mm | 635 mm | 637 mm | 665 mm | 667 mm |
| Seat Tube Angle | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° | 76.7 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 425 mm | 425 mm | 450 mm | 450 mm | 475 mm | 475 mm |
| Head Tube Angle | 66.5 ° | 65.7 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° | 66.5 ° | 65.8 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1206 mm | 1205 mm | 1237 mm | 1239 mm | 1269 mm | 1268 mm | 1301 mm | 1300 mm |
| Bottom Bracket Drop | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm | 20 mm | 30 mm |
| Standover Height | 789 mm | 783 mm | 784 mm | 775 mm | 770 mm | 763 mm | 782 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 174 cm | 174 cm | 182 cm | 182 cm | 190 cm | 190 cm | 198 cm | 198 cm |
Model Overview
Trance X E+ 2 750 is part of the Giant E Trance model. 42 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Giant Trance X E+ 1 2022 has a starting price of 5423$. Giant Trance X Advanced E+, LTD 2022 on the other hand is the most expensive at 15000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for General Road e-bikes
If you want an acceptable General Road e-bike you should know that the average price is 2631$. However, this doesn’t mean that if you spend less money on a General Road e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Trance X E+ 2 750 price was 6051$. In conclusion, this e-bike price is 129.99% higher than the price of the average General Road e-bike.
Trance X E+ 2 750 components
Fork
This e-bike has the Fox Rhythm Float 36 fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Giant Trance X E+ 2 750 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Giant Trance X E+ 2 750 e-bike has 8 sizes, in the range of 163 cm – 198 cm (5.35 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Giant Trance X E+ 2 750 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
