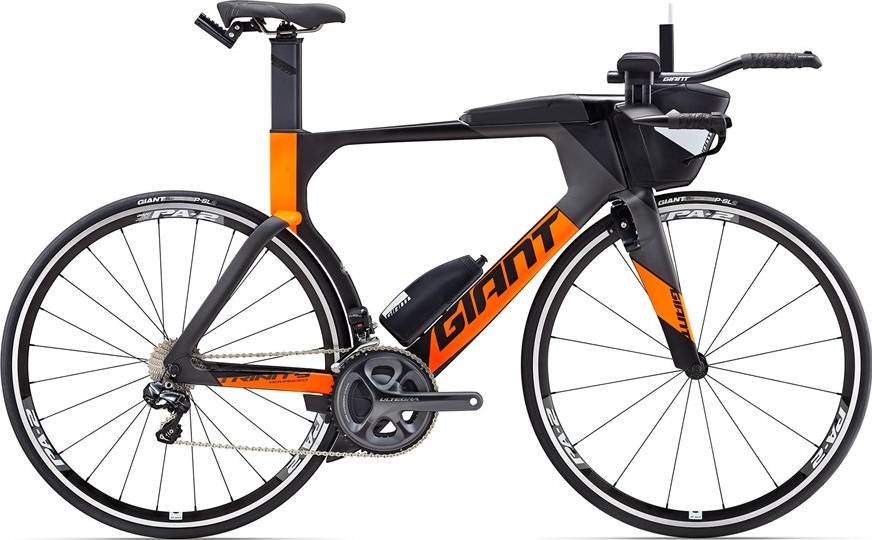

Giant Trinity Advanced Pro 1 2017
2017 Road
Estimate price |
4,950$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite
Suspension Fork
AeroDrive Tri, Advanced-grade composite, Hybrid steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Di2 TT w/ Dura Ace Di2 Single Button Bar End
Cassette
Shimano Ultegra 11x28, 11-speed
Crank
Shimano Ultegra, 36/52
Bottom Bracket
Shimano, Press fit
Chain
KMC X11 SL
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker Road, Sealed bearing, [F] 16h [R] 24h
Rear Hub
Giant Performance Tracker Road, Sealed bearing, [F] 16h [R] 24h
Rims
Giant PA-2, Aero
Spokes
Sapim Race, 14/15g
Tires
Giant SL2, Flat Guard, Front and Rear Specific, 700x25(700x23C for XS size)
Brakes
Brakes
Giant SpeedControl SL w/ Ti hardware
Brake Levers
Shimano Ultegra Di2 TT
Cockpit
Stem
Giant Trinity
Handlebar
Giant Trinity Base Bar, Composite, w/ Composite extensions
Seat
Saddle
ISM PS 1.0
Seatpost
Giant Trinity, Composite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.25 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 571 mm | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 62 mm | 62 mm | 62 mm | 62 mm |
| Stack | 474 mm | 502 mm | 531 mm | 560 mm |
| Reach | 390 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 560 mm | 572 mm | 594 mm | 600 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 460 mm | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 959 mm | 980 mm | 995 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 759 mm | 782 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Trinity Advanced Pro 1 belongs to the Giant Trinity model. 68 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Giant Trinity Advanced 2017 is the most affordable bike of this model and has a price of 1850$. On the other hand, Giant Trinity Advanced Pro 0 2017, is the most expensive and costs 6700$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4950$. In conclusion, this bike price is 18.51% more expensive than the price of the average Triathlon bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Trinity Advanced Pro 1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trinity Advanced Pro 1 has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Trinity Advanced Pro 1 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
