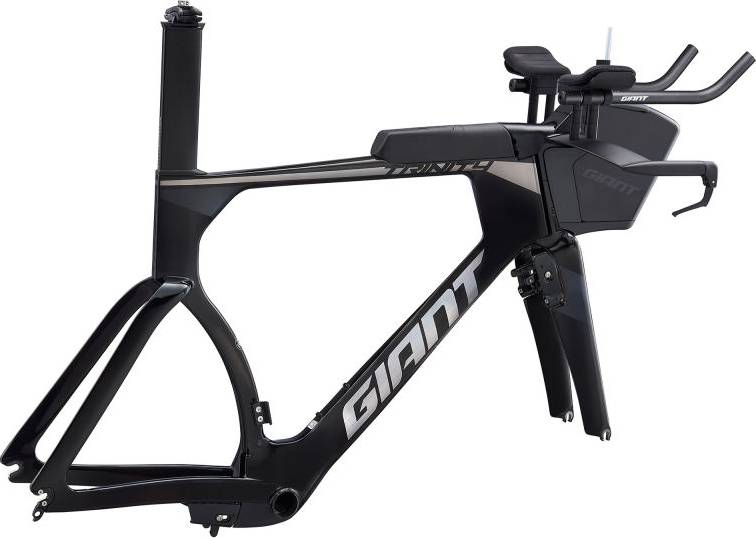

Giant Trinity Advanced Pro TRI Frameset 2020
2020 Road
Estimate price |
3,800$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
160cm - 172cm
SM
166cm - 178cm
MD
172cm - 184cm
LG
179cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Composite
Suspension Fork
Advanced-Grade Composite, Aluminium OverDrive 2 Steerer
Brakes
Brakes
Giant SpeedControl SL Aero Brakes
Cockpit
Stem
Trinity alloy x 2, zero stack and +30mm stack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.25 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 571 mm | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 474 mm | 502 mm | 531 mm | 560 mm |
| Reach | 390 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 501 mm | 520 mm | 533 mm | 546 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 460 mm | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 959 mm | 980 mm | 995 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 759 mm | 782 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 166 cm | 172 cm | 179 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 193 cm |
Model Overview
Trinity Advanced Pro TRI Frameset completes the Giant Trinity model. 68 frames variations carry this model name so far. You can easily view all of the Giant Trinity frames models from 2020, here.
Model range prices
Giant Trinity Advanced Pro TT Frameset 2020 is the most economical model, with a starting price of 2796$. Giant Trinity Advanced Pro TRI Frameset 2020 on the other hand costs 3800$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon frames
Our math shows that the average cost of a dependable Triathlon frame is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Giant Trinity Advanced Pro TRI Frameset price was 3800$. Comparing this to the average Triathlon frame price, we see that the price is 23.02% higher.
Trinity Advanced Pro TRI Frameset components
Fork material
Trinity Advanced Pro TRI Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trinity Advanced Pro TRI Frameset has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 193 cm (5.25 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
