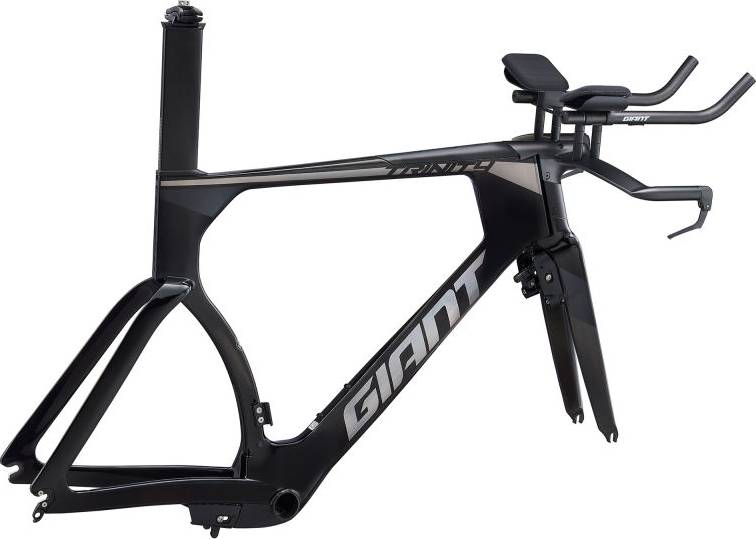

Giant Trinity Advanced Pro TT Frameset 2020
2020 Road
Estimate price |
3,077$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-Grade Carbon Composite
Suspension Fork
Aluminium OverDrive 2 Steerer
Brakes
Brakes
Giant SpeedControl SL Aero Brakes
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.22 mm | 1.25 mm | 1.3 mm | 1.35 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 571 mm | 592 mm | 607 mm | 622 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 474 mm | 502 mm | 531 mm | 560 mm |
| Reach | 390 mm | 402 mm | 409 mm | 415 mm |
| Top Tube Length | 501 mm | 520 mm | 533 mm | 546 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 460 mm | 490 mm | 515 mm | 545 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 80 mm | 110 mm | 140 mm | 170 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 959 mm | 980 mm | 995 mm | 1010 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 734 mm | 759 mm | 782 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Trinity Advanced Pro TT Frameset is part of the Giant Trinity model. Giant launched 68 frames of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Giant Trinity Advanced Pro TT Frameset 2020 is the most affordable frame of this model and has a price of 2796$. On the other hand, Giant Trinity Advanced Pro TRI Frameset 2020, is the most expensive and costs 3800$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon frames
Our math shows that the average cost of a dependable Triathlon frame is 3089$. However, you could also get a good Triathlon frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2020 and its price was 2796$. Doing a quick comparison, we notice that Trinity Advanced Pro TT Frameset price is 10.48% lower than the average cost of a Triathlon frame.
Overview of components
Fork material
When it comes to the fork, this frame has an aluminum one, which doesn’t add too much extra weight to the frame. However, it is not so stiff as steel or carbon forks are.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant Trinity Advanced Pro TT Frameset is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Trinity Advanced Pro TT Frameset comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
