Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset Deore, Praxis -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Advanced-grade composite with horizontal dropouts
Suspension Fork
SR Suntour Raidon LO-R, OverDrive, 100mm travel (not compatible with 27.5+ size tires)
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore Shadow +
Front Derailleur
N/A
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11x42, 10-Speed
Crank
Praxis Works 1x, Boost, 30T
Bottom Bracket
Praxis BB90, Press fit
Chain
KMC X10
Pedals
N/A
Wheels
Front Hub
Giant Performance Tracker, sealed bearing, Boost
Rear Hub
Giant Performance Tracker, sealed bearing, Boost
Rims
Giant XC-1 Disc, Tubeless
Spokes
Sapim Race, 14/15g
Tires
Maxxis IKON 29x2.2 Folding, EXO, Tubeless, 60 TPI
Brakes
Brakes
Shimano M365, hydraulic disc, [F] 180mm, [R] 160mm
Brake Levers
Shimano M365
Cockpit
Stem
Giant Connect
Handlebar
Giant Connect Trail
Seat
Saddle
Giant Contact Forward
Seatpost
Giant Connect, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.48 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 656 mm | 670 mm | 684 mm | 704 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm | 82 mm |
| Stack | 619 mm | 619 mm | 628 mm | 638 mm |
| Reach | 405 mm | 419 mm | 430 mm | 447 mm |
| Top Tube Length | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 390 mm | 440 mm | 490 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1081 mm | 1095 mm | 1109 mm | 1129 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 746 mm | 772 mm | 804 mm | 834 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

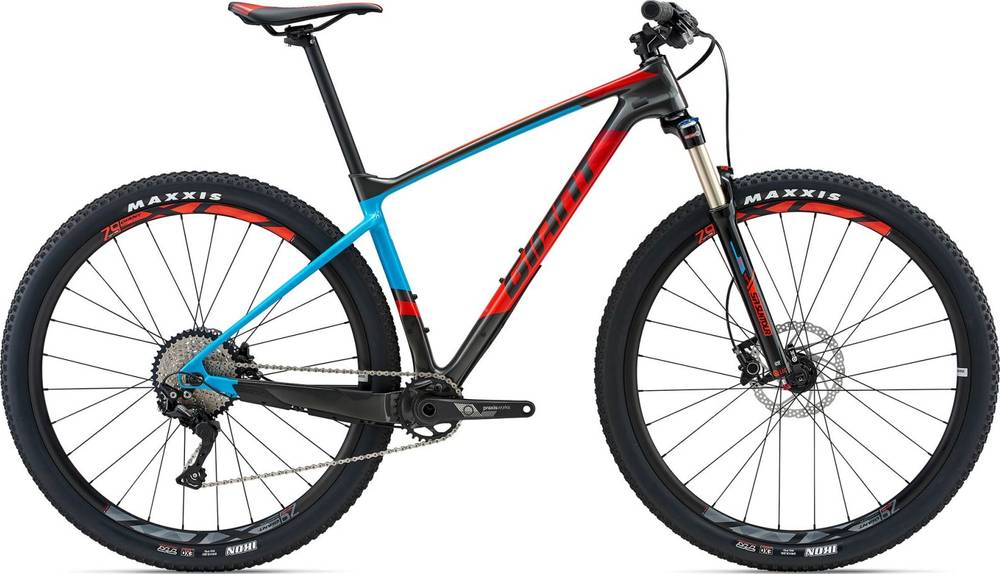

Model Overview
XTC Advanced 29 3 is a Giant Xtc model. Giant launched 151 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Giant XTC Jr 20 Lite 2018 is the most economical model, with a starting price of 240$. Giant XTC Advanced 29 1 2018 on the other hand costs 4080$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 1990$. Doing a quick comparison, we notice that XTC Advanced 29 3 price is 4.46% more expensive than the average cost of a Crosscountry bike.
XTC Advanced 29 3 components
Fork
Giant XTC Advanced 29 3 2018 bike is equipped with the SunTour RAIDON fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The XTC Advanced 29 3 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Giant XTC Advanced 29 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
