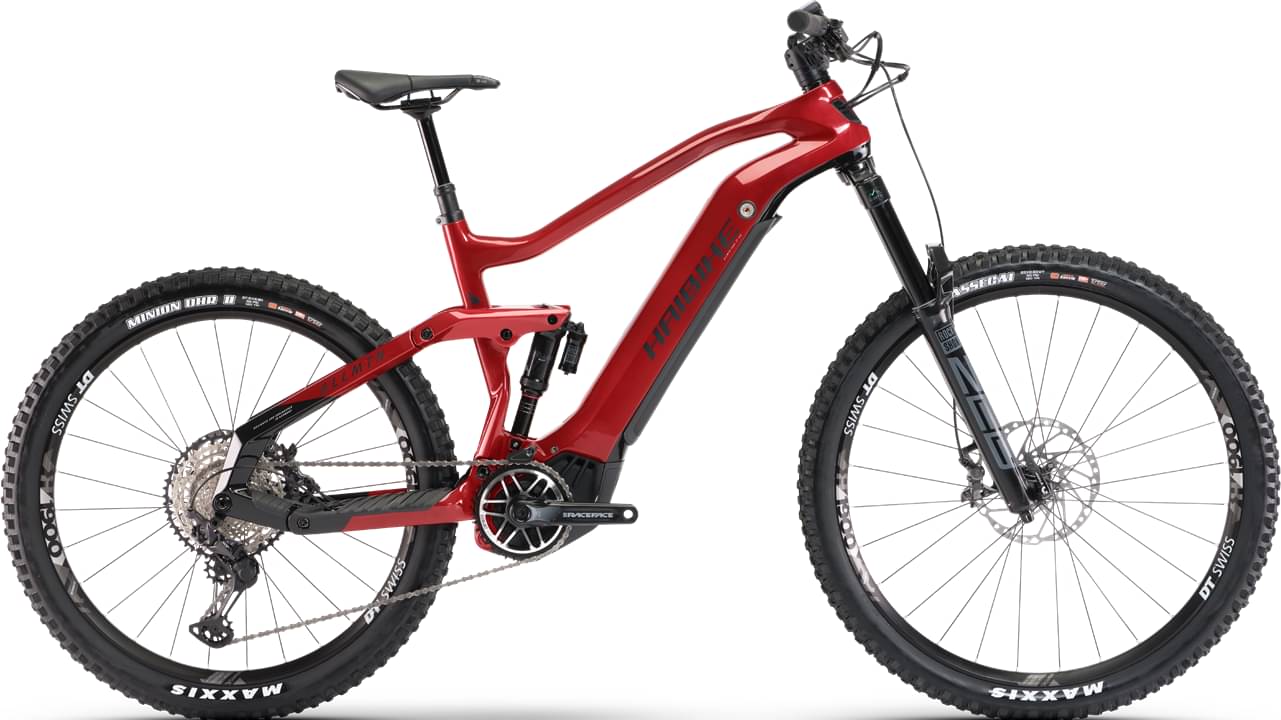

Haibike AllMtn CF 12 2022
2022 E-bike
Estimate price |
8,028$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox ZEB
-
Groupset XT -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Yamaha, 600 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, XDURO AM i600, Carbon
Suspension Fork
RockShox, ZEB Charger R, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Super Deluxe Select, Air, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano, Deore XT M8100 Shadow Plus
Shift Levers
Shimano, Deore XT M8100, Trigger switch
Cassette
Shimano, SLX M7100, 10 - 51 teeth
Crank
Haibike Components, Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, SLX M7100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
DT Swiss, H1900
Tires
Maxxis, Assegai MaxxTerra/Exo+/TR, 63-622, 29 x 2.5 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, Deore XT M8100, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Prologo, Proxim W400
Seatpost
Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-X2, 250 Wh, 80 Nm, 25 km/h
Battery
Yamaha, 600 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.388 mm | 1.352 mm | 1.268 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 736 mm | 766 mm | 799 mm | 829 mm |
| Rake | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 597 mm | 597 mm | 615 mm | 615 mm |
| Reach | 400 mm | 430 mm | 455 mm | 485 mm |
| Top Tube Length | 560 mm | 590 mm | 620 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1195 mm | 1225 mm | 1258 mm | 1288 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
AllMtn CF 12 is a Haibike E Allmtn model. 24 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Allmtn e-bikes models from 2022, here.
Model range prices
The most economical model, the Haibike AllMtn 1 2022 has a starting price of 4989$. Haibike AllMtn CF SE 2022 on the other hand is the most expensive at 9343$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 7431$. If we compare this with the average Enduro e-bike cost we notice that the price is 55.3% more expensive.
Overview of components
Fork
Haibike AllMtn CF 12 2022 e-bike is equipped with the RockShox ZEB fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on AllMtn CF 12 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike AllMtn CF 12 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
AllMtn CF 12 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the AllMtn CF 12. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
