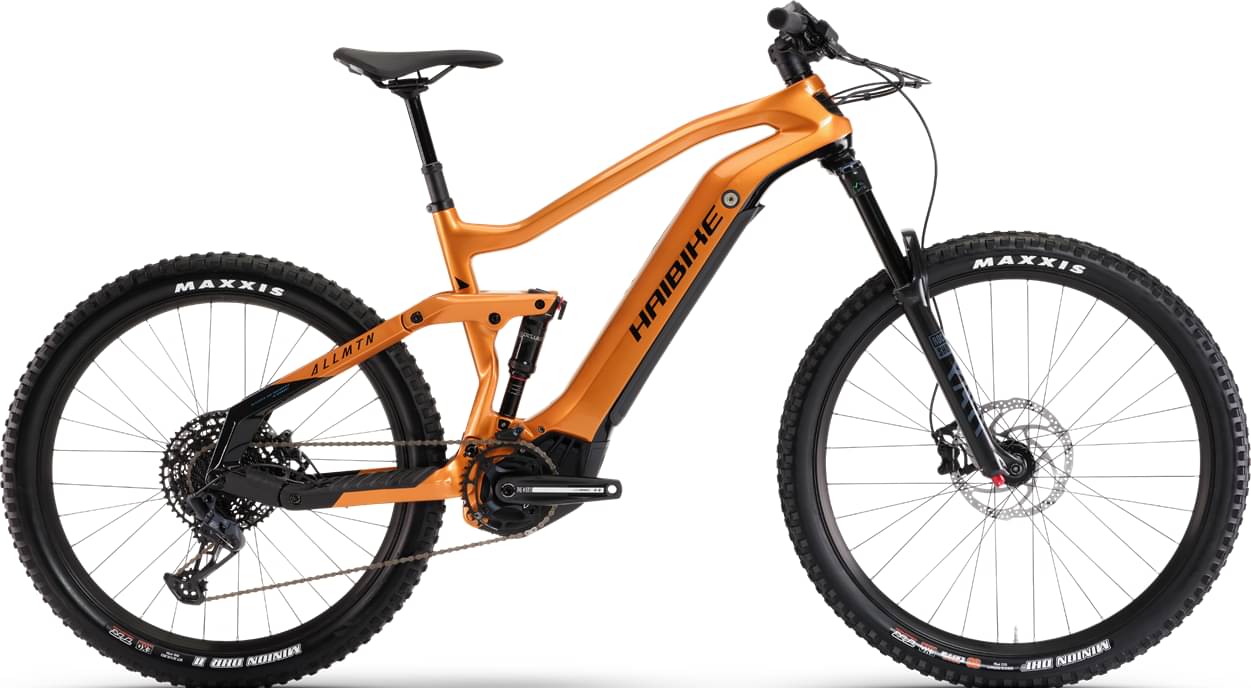

Haibike AllMtn CF 6 2022
2022 E-bike
Estimate price |
6,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Yari RC
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Motor Yamaha 80Nm mid-drive -
Battery Yamaha, 600 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, XDURO AM i600, Carbon
Suspension Fork
RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, NX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1230, 11 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Leader
Tires
Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
TRP, Slate T4, Aluminium
Cockpit
Stem
Haibike Components, TheStem 2, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar +++ Gravity, 780 mm
Grips
Haibike, MTB grips
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-X2, 250 Wh, 80 Nm, 25 km/h
Battery
Yamaha, 600 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.493 mm | 1.388 mm | 1.352 mm | 1.268 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 736 mm | 766 mm | 799 mm | 829 mm |
| Rake | 60 mm | 60 mm | 60 mm | 60 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 597 mm | 597 mm | 615 mm | 615 mm |
| Reach | 400 mm | 430 mm | 455 mm | 485 mm |
| Top Tube Length | 560 mm | 590 mm | 620 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1195 mm | 1225 mm | 1258 mm | 1288 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
AllMtn CF 6 is part of the Haibike E Allmtn model. There are 24 e-bikes that carry this model name. You can easily view all of the Haibike E Allmtn e-bikes models from 2022, here.
Model range prices
Haibike AllMtn 1 2022 is the cheapest e-bike model and costs 4989$. Haibike AllMtn CF SE 2022 is the most expensive one and costs 9343$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2022, its price was 6051$. In conclusion, this e-bike price is 26.46% higher than the price of the average Enduro e-bike.
AllMtn CF 6 components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on AllMtn CF 6 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AllMtn CF 6 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
AllMtn CF 6 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Haibike model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
