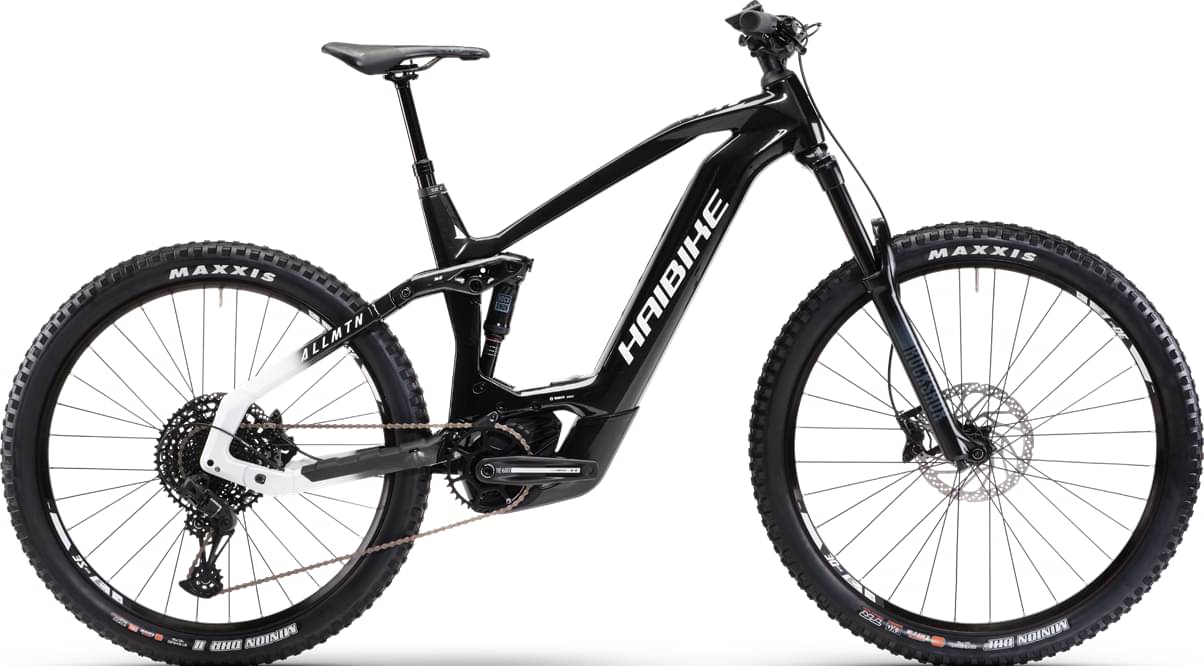

Haibike AllMtn CF 8 2022
2022 E-bike
Estimate price |
6,881$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, AllMtn Bosch CF Smart System, Carbon/aluminium
Suspension Fork
RockShox, 35 Gold RL, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe Select Plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
SRAM, SX Eagle
Shift Levers
SRAM, SX Eagle, Trigger switch
Cassette
SRAM, Eagle PG1210, 11 - 50 teeth
Crank
SRAM, Aluminium, 36 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, SX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT401, Aluminium
Cockpit
Stem
Alu, A-head, 31.8 mm
Handlebar
Haibike Components, TheBar ++, 780 mm
Grips
Haibike, MTB grips
Headset
Acros, Cable integration, Aluminium
Seat
Saddle
fi'zi:k, Terra Aidon X5-160
Seatpost
Dropper-Post Remote 31.6, Aluminium, Telescope, 31.6 mm
Motor & Battery
Motor
Bosch, Performance CX Smart System, 250 Wh, 85 Nm
Battery
Bosch, PowerTube, 750 Wh
Remote
Bosch, Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.46 mm | 1.376 mm | 1.306 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Front Center | 737 mm | 769 mm | 806 mm | 842 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 408 mm | 435 mm | 468 mm | 500 mm |
| Top Tube Length | 560 mm | 590 mm | 625 mm | 660 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1191 mm | 1223 mm | 1260 mm | 1296 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 790 mm | 810 mm | 830 mm | 830 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
AllMtn CF 8 is part of the Haibike E Allmtn model. 24 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Allmtn e-bikes models from 2022, here.
Model range prices
The most economical model, the Haibike AllMtn 1 2022 has a starting price of 4989$. Haibike AllMtn CF SE 2022 on the other hand is the most expensive at 9343$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 6370$. Comparing the average cost of an Enduro e-bike to this one, you will see that AllMtn CF 8 price is 33.12% higher.
AllMtn CF 8 components
Fork
The AllMtn CF 8 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The AllMtn CF 8 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike AllMtn CF 8 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Haibike AllMtn CF 8 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
