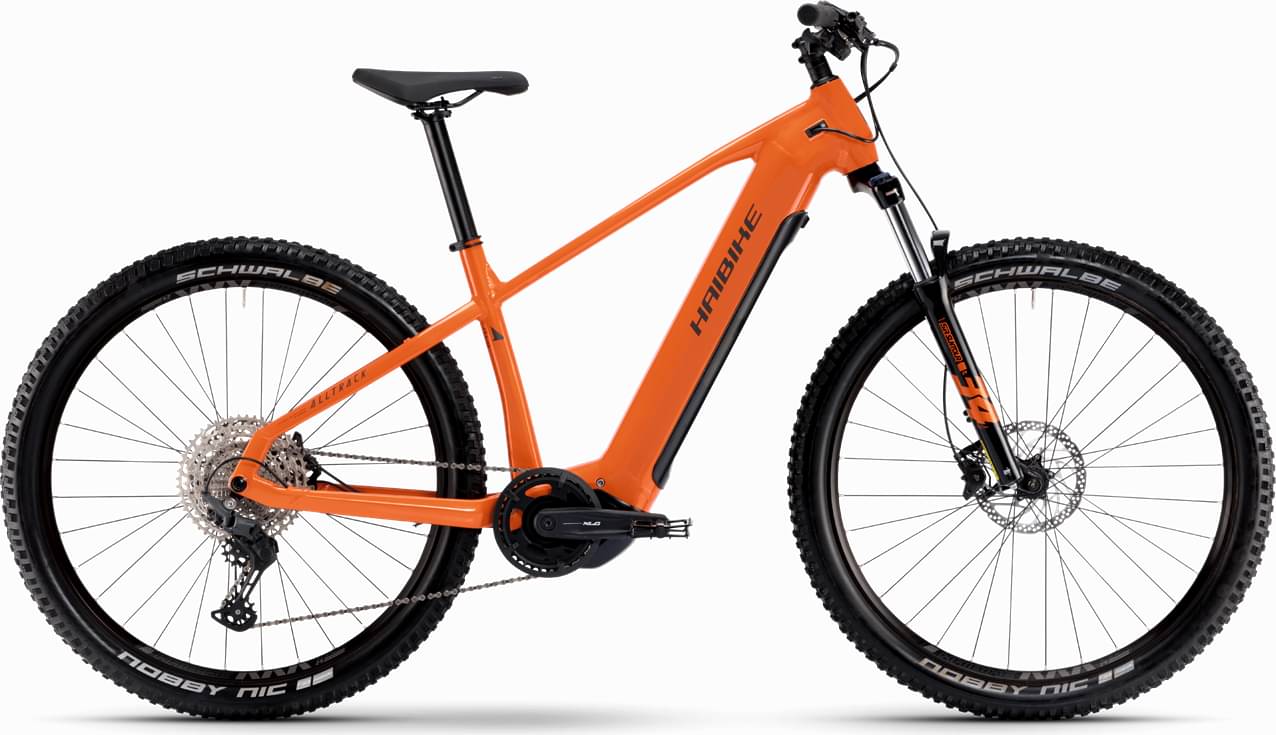

Haibike AllTrack 6 29 2023
2023 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset NX -
Suspension Hardtail -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour, XCM34 NLO DS, Steel spring/oil, 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
SRAM, NX
Shift Levers
SRAM, NX
Cassette
SRAM, PG1130
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, NX
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Nobby Nic Performance, 65-622, 29" x 2.6"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
XLC, A-Head, A-head, 31.8 mm
Handlebar
XLC, 720 mm
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
Selle Royal, Vivo Unitech
Seatpost
Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.47 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 748 mm | 772 mm | 796 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 673 mm | 682 mm | 691 mm |
| Reach | 431 mm | 451 mm | 471 mm |
| Top Tube Length | 624 mm | 647 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1215 mm | 1239 mm | 1263 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
AllTrack 6 29 is part of the Haibike E Alltrack model. Haibike released 13 e-bikes variations of this model so far. You can easily view all of the Haibike E Alltrack e-bikes models from 2023, here.
Model range prices
Haibike AllTrack 2023 is the cheapest e-bike model and costs 3184$. Haibike AllTrack 11 29 2023 is the most expensive one and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Haibike released this model in 2023, its price was 3821$. Doing a quick comparison, we notice that AllTrack 6 29 price is 13.55% more expensive than the average cost of a Trail e-bike.
Overview of components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the AllTrack 6 29 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The AllTrack 6 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
