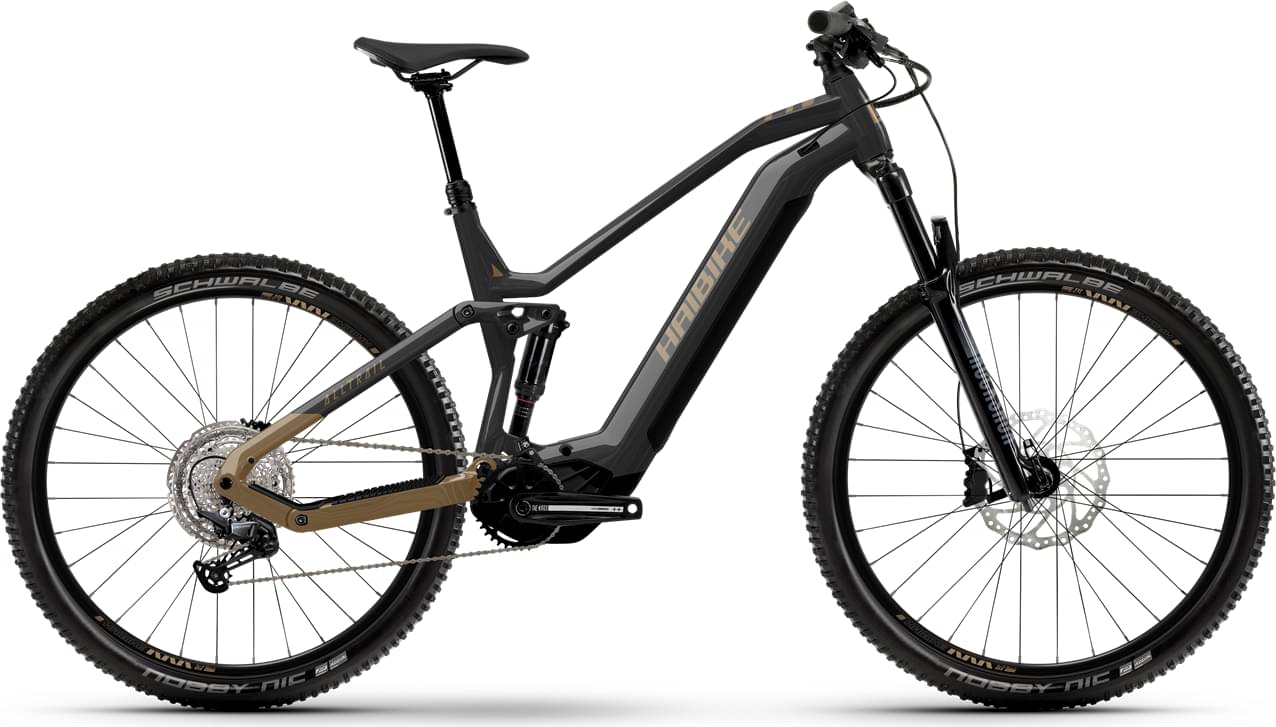

Haibike ALLTRAIL 5 29 2023
2023 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 140mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox, 35 Silver, Steel spring, travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe select plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano, Deore M6100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Aluminium, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Race, Black
Tires
Continental, Trail King, 29" x 2.4"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
Alu, A-head
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.322 mm | 1.271 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 783 mm | 812 mm | 841 mm |
| Rake | 51 mm | 52 mm | 52 mm |
| Trail | 118 mm | 117 mm | 117 mm |
| Stack | 619 mm | 628 mm | 637 mm |
| Reach | 451 mm | 475 mm | 501 mm |
| Top Tube Length | 593 mm | 620 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1254 mm | 1283 mm | 1313 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
ALLTRAIL 5 29 completes the Haibike E Alltrail model. There are 21 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Haibike ALLTRAIL 3 2023 is the cheapest e-bike model and costs 4883$. Haibike ALLTRAIL 10 27.5 2023 is the most expensive one and costs 6370$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 5308$. Comparing the average cost of a Trail e-bike to this one, you will see that ALLTRAIL 5 29 price is 57.74% higher.
ALLTRAIL 5 29 components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The ALLTRAIL 5 29 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Haibike ALLTRAIL 5 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
