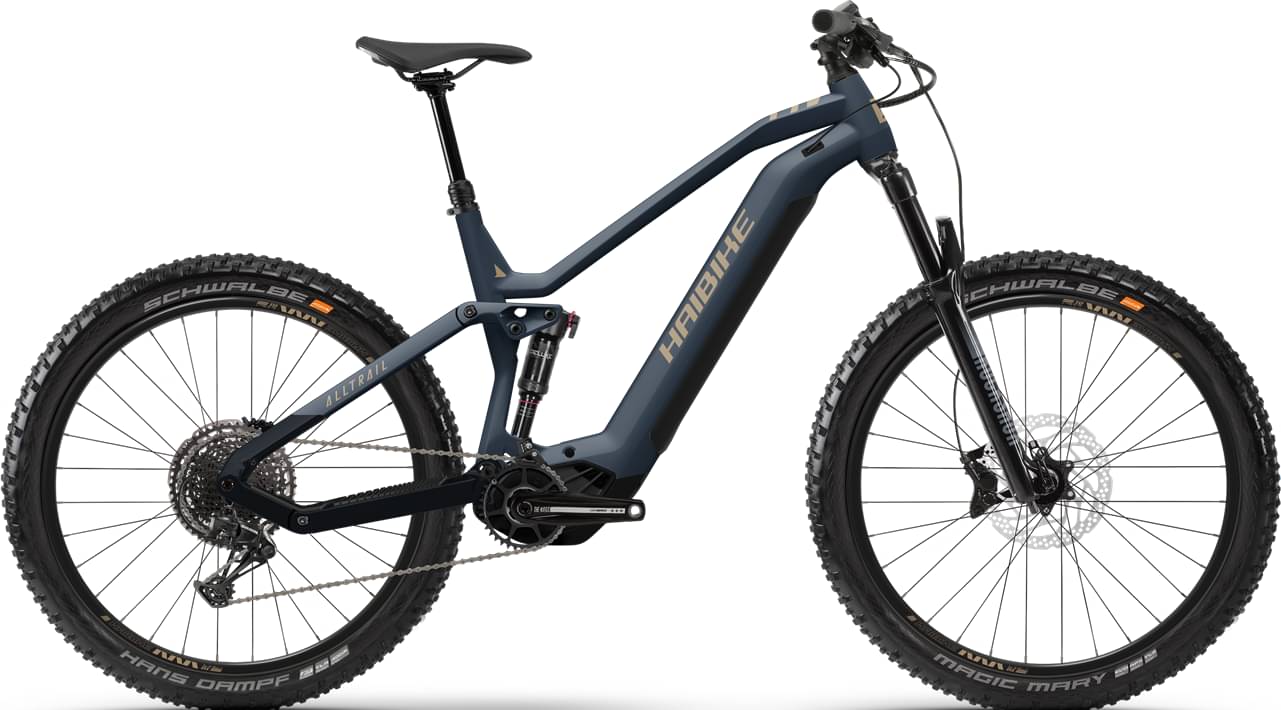

Haibike ALLTRAIL 6 29 2023
2023 E-bike
Estimate price |
6,307$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 75Nm mid-drive -
Battery InTube, 720 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox, 35 Gold RL, Air, travel= 140 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Rear Shock
RockShox, Deluxe select plus, Air, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano, Deore M6100
Shift Levers
Shimano, Deore M6100, Trigger switch
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
WTB, ST i30 TCS, Double Wall
Spokes
Sapim, Race, Black
Tires
Schwalbe, Magic Mary Evo TLE, 65-622, 29" x 2.6"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT401, Aluminium,
Cockpit
Stem
Alu, A-head
Handlebar
Haibike Components, TheBar ++, 780 mm
Headset
Acros, BlockLock, Aluminium
Seat
Saddle
Selle Royal, Vivo
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-S2, 250W, 75 Nm
Battery
InTube, 720 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.373 mm | 1.322 mm | 1.271 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 783 mm | 812 mm | 841 mm |
| Rake | 51 mm | 52 mm | 52 mm |
| Trail | 118 mm | 117 mm | 117 mm |
| Stack | 619 mm | 628 mm | 637 mm |
| Reach | 451 mm | 475 mm | 501 mm |
| Top Tube Length | 593 mm | 620 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1254 mm | 1283 mm | 1313 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
ALLTRAIL 6 29 belongs to the Haibike E Alltrail model. Haibike launched 21 e-bikes of this model so far. Take a sneak peek at all Haibike E Alltrail e-bikes models from 2023, by clicking here.
Model range prices
Haibike ALLTRAIL 3 2023 is the most affordable e-bike of this model and has a price of 4883$. On the other hand, Haibike ALLTRAIL 10 27.5 2023, is the most expensive and costs 6370$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 5839$. If we compare this with the average Trail e-bike cost we notice that the price is 73.52% more expensive.
ALLTRAIL 6 29 components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
As for the wheels, Haibike ALLTRAIL 6 29 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ALLTRAIL 6 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Haibike ALLTRAIL 6 29 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Haibike ALLTRAIL 6 29 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
