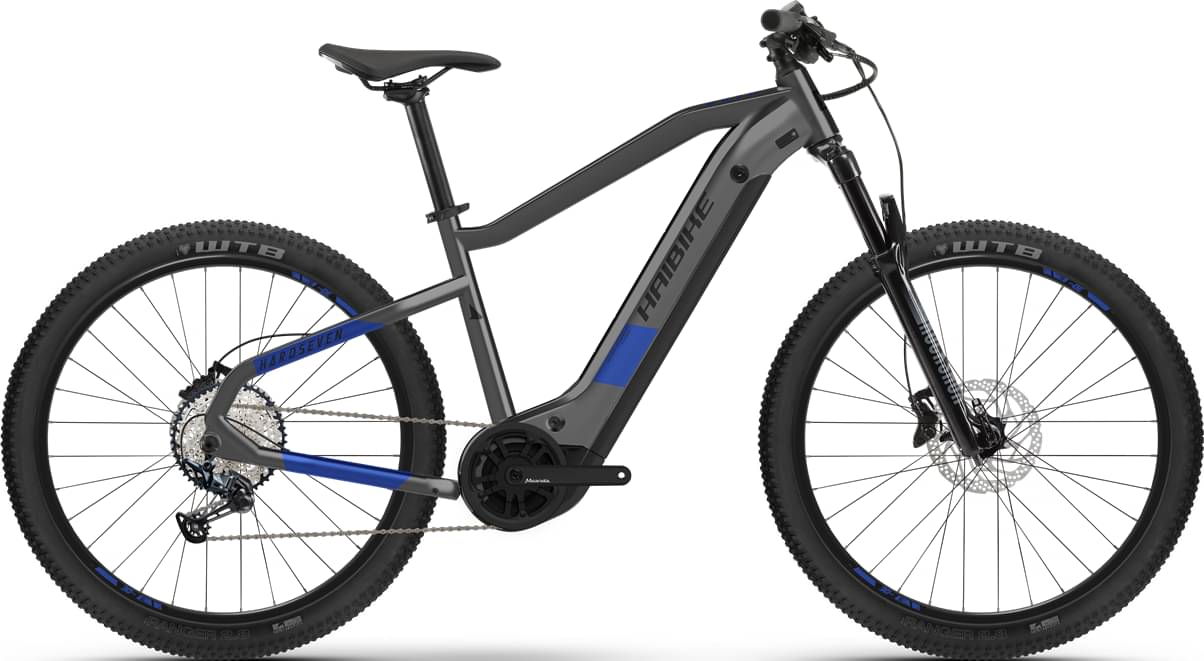

Haibike HardSeven 7 2022
2022 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox 35 Silver
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery InTube, 630 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, HardSeven Yamaha i630, Aluminium 6061
Suspension Fork
RockShox, 35 Silver, Steel spring, Travel= 120 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, SLX M7100
Shift Levers
Shimano, Deore M6100, Trigger switch, 12 Speed
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
Shimano, CN-M6100
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector,
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Ranger Comp, 65-584, 27.5" x 2.6"
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano, MT400, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 740 mm
Grips
XLC, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, Cartridge
Seat
Saddle
XLC, MTB
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.428 mm | 1.413 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 306 mm |
| Front Center | 742 mm | 779 mm | 817 mm |
| Rake | 54 mm | 54 mm | 53 mm |
| Trail | 106 mm | 106 mm | 107 mm |
| Stack | 615 mm | 637 mm | 664 mm |
| Reach | 419 mm | 446 mm | 470 mm |
| Top Tube Length | 578 mm | 610 mm | 641 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 140 mm | 175 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1207 mm | 1244 mm | 1283 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 49 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
HardSeven 7 is part of the Haibike E Hardseven model. 10 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Haibike HardSeven 5 2022 is the most economical model, with a starting price of 3078$. Haibike HardSeven 7 2022 on the other hand costs 3821$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2022, its price was 3821$. Comparing this to the average Trail e-bike price, we see that the price is 13.55% more expensive.
Overview of components
Fork
Haibike HardSeven 7 2022 e-bike is equipped with the RockShox 35 Silver fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When leaving the production line, the HardSeven 7 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The HardSeven 7 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
