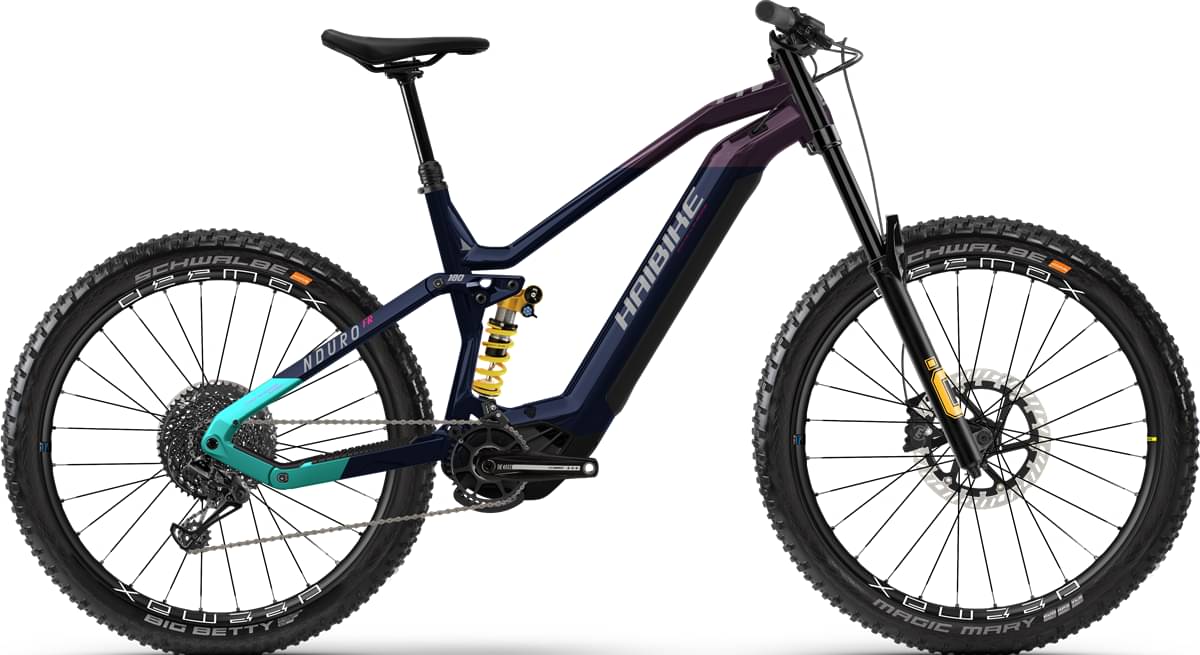

Haibike Nduro 8 Freeride 2022
2022 E-bike
Estimate price |
8,372$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 180mm -
Fork Öhlins DH38 M.1
-
Groupset GX Eagle, SRAM -
Suspension Full -
Motor Yamaha 85Nm mid-drive -
Battery InTube, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Nduro PW-X3, Aluminium
Suspension Fork
Öhlins, DH38 M.1, Air, 180 mm travel, Aluminium steerer tube 1 1/8", 20 x 110mm thru-axle
Rear Shock
Öhlins, TTX 22 M, Steel spring, Trunnion
Drivetrain
Rear Derailleur
SRAM, GX Eagle
Shift Levers
SRAM, CX Eagle, Trigger switch
Cassette
SRAM, GX 1275 Eagle, 10 - 50 teeth
Crank
SRAM, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, GX Eagle
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Mavic, E- Deemax
Tires
Schwalbe, Magic Mary Evo TLE, 29 x 2.4 inch
Brakes
Brakes
hydraulicDisc
Brake Levers
Magura, MT7 HC-lever
Cockpit
Stem
Raceface, Chester 35, Direct mount, 35.0 mm
Handlebar
Raceface, Atlas Alu, 820 mm
Grips
Raceface, Half Nelson
Headset
Feimin, A-Head Alloy 1 1/8", Cartridge
Seat
Saddle
fi'zi:k, Terra Aidon X5-160
Seatpost
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
Motor & Battery
Motor
Yamaha, PW-X3, 250 Wh, 85 Nm
Battery
InTube, 750 Wh
Remote
Yamaha, Interface - X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.415 mm | 1.36 mm | 1.298 mm |
| Bottom Bracket Height | 369 mm | 369 mm | 369 mm | 369 mm |
| Front Center | 785 mm | 815 mm | 845 mm | 879 mm |
| Rake | 37 mm | 37 mm | 38 mm | 37 mm |
| Trail | 145 mm | 145 mm | 144 mm | 145 mm |
| Stack | 644 mm | 644 mm | 653 mm | 662 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 574 mm | 604 mm | 631 mm | 663 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1245 mm | 1275 mm | 1305 mm | 1339 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Nduro 8 Freeride is a Haibike E Nduro model. Haibike released 3 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike Nduro 6 2022 has a starting price of 5626$. Haibike Nduro 8 Freeride 2022 on the other hand is the most expensive at 7750$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Haibike released this model in 2022, its price was 7750$. Doing a quick comparison, we notice that Nduro 8 Freeride price is 61.96% higher than the average cost of an Enduro e-bike.
Nduro 8 Freeride components
Fork
This e-bike has the Öhlins DH38 M.1 fork installed. The fork’s travel is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the Nduro 8 Freeride e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nduro 8 Freeride comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Nduro 8 Freeride comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Haibike model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
