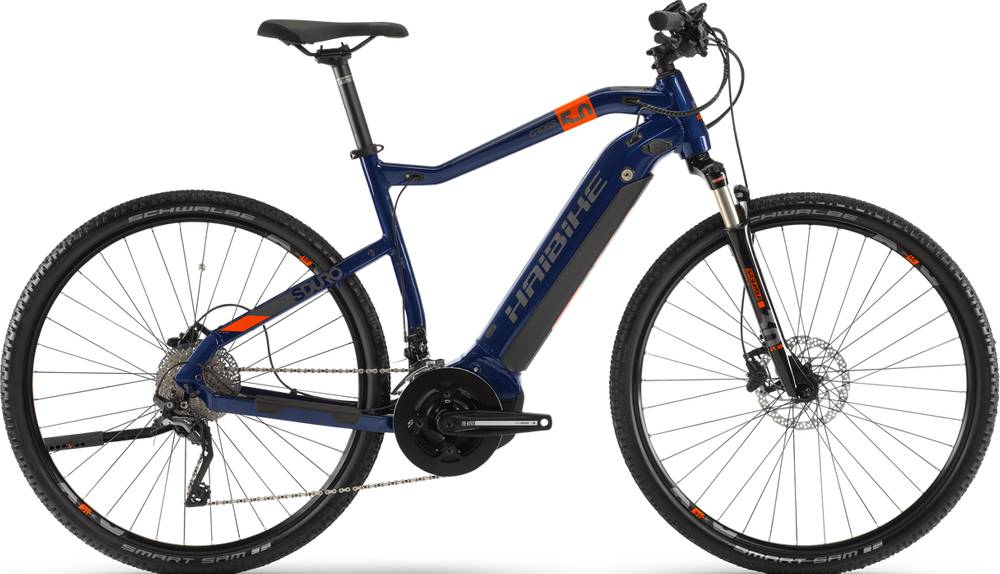

Haibike SDURO Cross 5.0 2020
2020 E-bike
Estimate price |
3,325$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, InTube, 500 Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO Cross/Trekking, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, NCX D-LO, Lockout, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Deore XT T8000
Shift Levers
Shimano, Deore M6000, Rapidfire, 20 speed
Cassette
Shimano, HG50, 11 - 36 teeth
Crank
Aluminium, 48 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Smart Sam, 47-622, 28" x 1.75"
Brakes
Brake Levers
Shimano, MT401, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 6°
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Alloy 1 1/8", cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 500 Wh
Remote
Yamaha, Multi Switch, 2.8" TFT, 16 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.572 mm | 1.584 mm | 1.595 mm | 1.602 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 643 mm | 659 mm | 675 mm | 690 mm | 706 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 92 mm | 91 mm | 91 mm | 91 mm | 92 mm |
| Stack | 623 mm | 632 mm | 651 mm | 670 mm | 689 mm |
| Reach | 390 mm | 402 mm | 411 mm | 420 mm | 430 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1106 mm | 1122 mm | 1138 mm | 1154 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 810 mm | 830 mm | 860 mm | 890 mm | 920 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
SDURO Cross 5.0 is part of the Haibike E Sduro model. 62 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Sduro e-bikes models from 2020, here.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the most economical model, with a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand costs 5839$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 3078$. In conclusion, this e-bike price is 25.48% more expensive than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.1 kg (50.93 lbs), the SDURO Cross 5.0 model is slightly lighter than average. To sum up, it’s 0.48% lighter than the average weight of Crosscountry e-bikes.
Overview of components
Fork
Haibike SDURO Cross 5.0 2020 e-bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
SDURO Cross 5.0 has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
The wheels on SDURO Cross 5.0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
