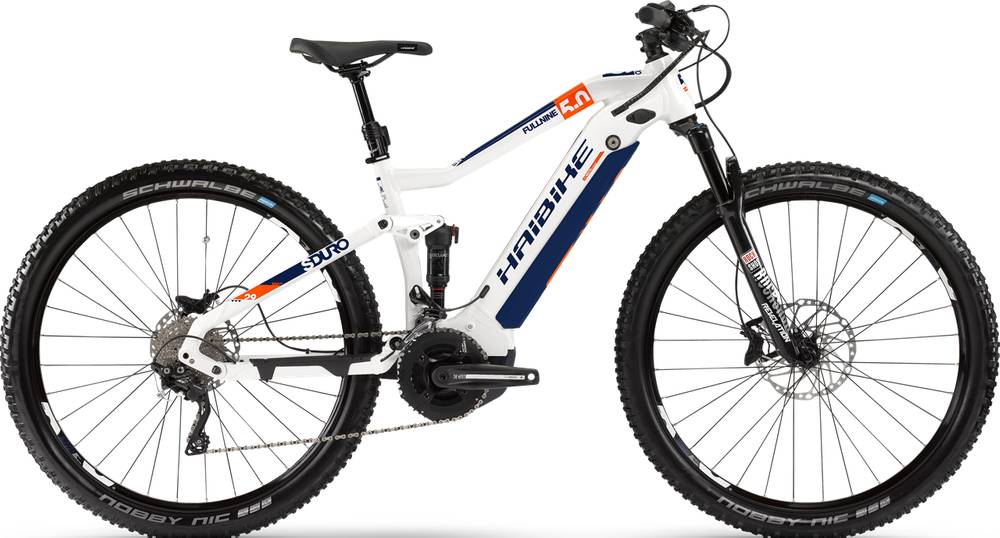

Haibike SDURO FullNine 5.0 2020
2020 E-bike
Estimate price |
4,587$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork RockShox Revelation RC
-
Groupset XT, Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, InTube, 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO FullNine, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount, Travel= 100 mm
Suspension Fork
RockShox, Revelation RC, Air, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore XT M786
Shift Levers
Shimano, Deore M6000, Rapidfire, 20 speed
Cassette
Shimano, HG50, 11 - 36 teeth
Crank
Aluminium, 44 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Nobby Nic Evo SnakeSkin, 65-622, 29" x 2.60"
Brakes
Brake Levers
Shimano, MT500, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 6°
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
XLC, AllMtn, Remote, Telescope, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.532 mm | 1.482 mm | 1.426 mm | 1.38 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 705 mm | 714 mm | 735 mm | 755 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 616 mm | 612 mm | 616 mm | 621 mm |
| Reach | 402 mm | 413 mm | 432 mm | 450 mm |
| Top Tube Length | 590 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1198 mm | 1207 mm | 1228 mm | 1248 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 780 mm | 810 mm | 840 mm | 870 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SDURO FullNine 5.0 belongs to the Haibike E Sduro model. 62 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Haibike SDURO HardSeven 1.0 2020 has a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand is the most expensive at 5839$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 4246$. In conclusion, this e-bike price is 73.09% higher than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.6 kg (54.23 lbs), the SDURO FullNine 5.0 model is a bit heavier than average. In conclusion, the average Crosscountry e-bike weighs 5.99% less than SDURO FullNine 5.0.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
SDURO FullNine 5.0 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The SDURO FullNine 5.0 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike SDURO FullNine 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Haibike SDURO FullNine 5.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Haibike SDURO FullNine 5.0 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
