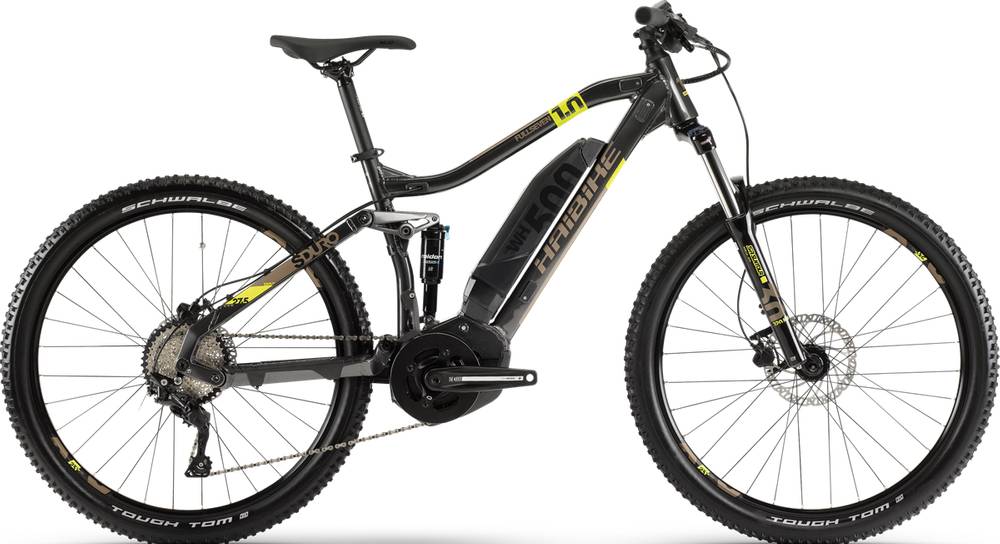

Haibike SDURO FullSeven 1.0 2020
2020 E-bike
Estimate price |
3,210$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO FullSeven, Aluminium 6061, Thru-axle M12 (1.75) x 142mm, Disc brake Post Mount, Travel= 120 mm
Suspension Fork
SR Suntour, XCM32 LO, Steel spring, Travel= 120 mm, Aluminium steerer tube 1 1/8", 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M6000
Shift Levers
Shimano, Deore M6000, Rapidfire, 10 speed
Cassette
Shimano, HG500, 11 - 42 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 23, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Tough Tom, 60-584, 27.5" x 2.35"
Brakes
Brake Levers
Tektro, M275, Aluminium
Cockpit
Stem
Haibike Components, TheStem +, A-head, Bar bore: 31.8 mm, 7°
Handlebar
Haibike Components, TheBar+, 740 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.418 mm | 1.368 mm | 1.322 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 688 mm | 708 mm | 729 mm | 749 mm |
| Rake | 42 mm | 41 mm | 42 mm | 41 mm |
| Trail | 105 mm | 106 mm | 105 mm | 106 mm |
| Stack | 589 mm | 594 mm | 598 mm | 603 mm |
| Reach | 400 mm | 419 mm | 437 mm | 456 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1157 mm | 1177 mm | 1198 mm | 1218 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 760 mm | 770 mm | 790 mm | 810 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SDURO FullSeven 1.0 is a Haibike E Sduro model. Haibike launched 62 e-bikes of this model so far. Take a sneak peek at all Haibike E Sduro e-bikes models from 2020, by clicking here.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the most economical model, with a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand costs 5839$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Haibike SDURO FullSeven 1.0 price was 2972$. In conclusion, this e-bike price is 13.22% lower than the price of the average Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 23.8 kg (52.47 lbs), Haibike e-bike is slightly heavier than average. In conclusion, the average Trail e-bike weighs 0.42% less than SDURO FullSeven 1.0.
SDURO FullSeven 1.0 components
Fork
The SDURO FullSeven 1.0 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the SDURO FullSeven 1.0 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Haibike SDURO FullSeven 1.0 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
