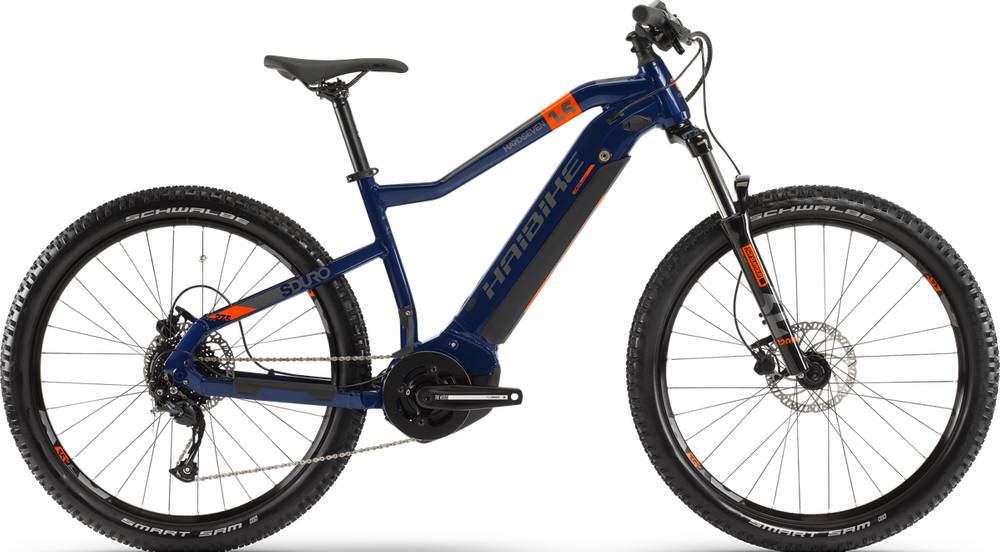

Haibike SDURO HardSeven 1.5 2020
2020 E-bike
Estimate price |
2,637$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm hub-drive -
Battery Yamaha, InTube, 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardSeven, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount
Suspension Fork
SR Suntour, XCM34 LOR, Lockout, Steel spring, Travel= 120 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Altus M2010, Rapidfire, 9 speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, X9
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Smart Sam Active, 65-584, 27.5" x 2.60"
Brakes
Brake Levers
Tektro, M275, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar+, 740 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 400 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.444 mm | 1.398 mm | 1.35 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 708 mm | 728 mm | 749 mm | 769 mm |
| Rake | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 101 mm | 102 mm | 102 mm | 102 mm |
| Stack | 619 mm | 624 mm | 629 mm | 633 mm |
| Reach | 413 mm | 432 mm | 450 mm | 469 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1164 mm | 1184 mm | 1205 mm | 1225 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 760 mm | 780 mm | 810 mm | 830 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SDURO HardSeven 1.5 belongs to the Haibike E Sduro model. Haibike launched 62 e-bikes of this model so far. You can easily view all of the Haibike E Sduro e-bikes models from 2020, here.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the most affordable e-bike of this model and has a price of 2123$. On the other hand, Haibike SDURO FullNine 8.0 2020, is the most expensive and costs 5839$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2020, its price was 2441$. Comparing the average cost of a Trail e-bike to this one, you will see that SDURO HardSeven 1.5 price is 37.85% lower.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, SDURO HardSeven 1.5 has a weight of 24.2 kg (53.35 lbs). In other words, this model is 2.11% heavier than the average Trail e-bike.
SDURO HardSeven 1.5 components
Fork
The SDURO HardSeven 1.5 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on SDURO HardSeven 1.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
