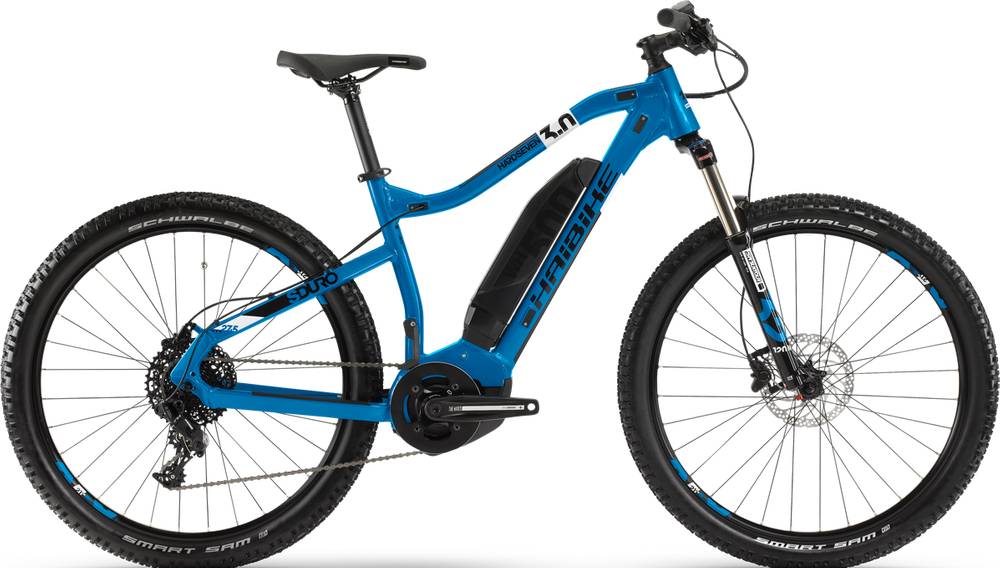

Haibike SDURO HardSeven 3.0 2020
2020 E-bike
Estimate price |
2,791$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR Air
-
Groupset NX -
Suspension Hardtail -
Motor Yamaha 250W 70Nm hub-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardSeven, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, XCR Air LO-R, Lockout, Air, Travel= 120 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
SRAM, NX
Shift Levers
SRAM, NX, Trigger switch, 11 speed
Cassette
SRAM, PG1130, 11 - 42 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
SRAM, PC1110
Chain Guide
Nylon directmount
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Smart Sam, 57-584, 27.5" x 2.25"
Brakes
Brake Levers
Shimano, MT401, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar + Topflat, 720 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.632 mm | 1.566 mm | 1.504 mm | 1.452 mm | 1.402 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 653 mm | 674 mm | 694 mm | 715 mm | 735 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 97 mm | 98 mm |
| Stack | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm |
| Reach | 375 mm | 394 mm | 413 mm | 431 mm | 450 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1110 mm | 1131 mm | 1151 mm | 1172 mm | 1192 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 720 mm | 740 mm | 770 mm | 790 mm | 820 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SDURO HardSeven 3.0 belongs to the Haibike E Sduro model. 62 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Sduro e-bikes models from 2020, here.
Model range prices
The most economical model, the Haibike SDURO HardSeven 1.0 2020 has a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand is the most expensive at 5839$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 2547$. Comparing the average cost of a Trail e-bike to this one, you will see that SDURO HardSeven 3.0 price is 32.12% smaller.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 21.9 kg (48.28 lbs), Haibike e-bike is a bit lighter than average. In conclusion, the average Trail e-bike weighs 8.22% more than SDURO HardSeven 3.0.
SDURO HardSeven 3.0 components
Fork
The fork installed on this bike is the SunTour XCR Air model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The SDURO HardSeven 3.0 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SDURO HardSeven 3.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Haibike SDURO HardSeven 3.0 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
