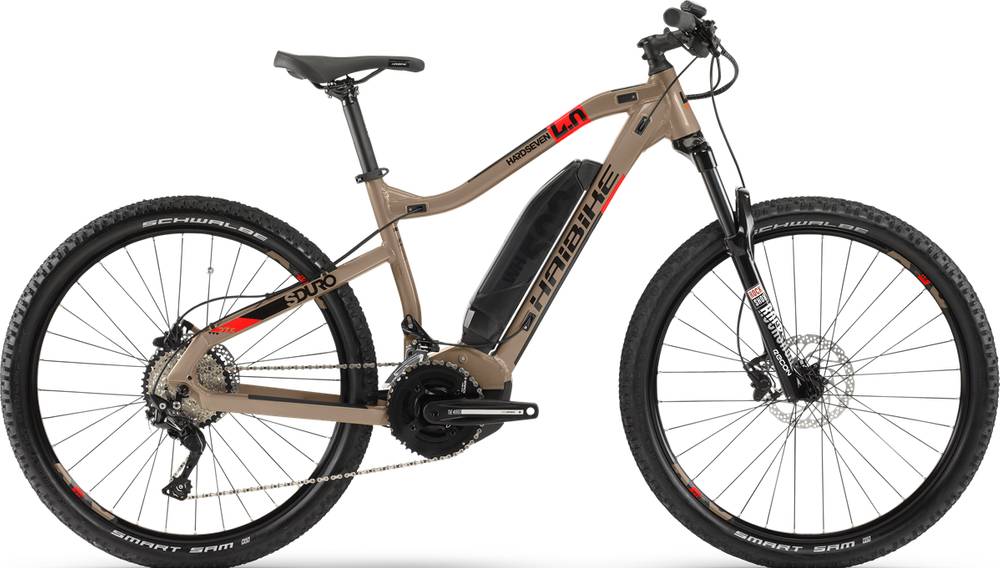

Haibike SDURO HardSeven 4.0 2020
2020 E-bike
Estimate price |
2,907$
Weight | 22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, Lithium Ion, 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO HardSeven, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
RockShox, Recon TK, Steel spring/oil, Travel= 120 mm, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore M6000
Shift Levers
Shimano, Deore M6000, Rapidfire, 20 speed
Cassette
Shimano, HG500, 11 - 42 teeth
Crank
Aluminium, 44 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e10S
Pedals
Freeridepedal, Aluminium, with Reflector
Wheels
Rims
Rodi, Black Rock 21, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Smart Sam, 57-584, 27.5" x 2.25"
Brakes
Brake Levers
Shimano, MT401, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar + Topflat, 720 mm
Grips
Haibike, MTB grips
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, Lithium Ion, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.632 mm | 1.566 mm | 1.504 mm | 1.452 mm | 1.402 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 653 mm | 674 mm | 694 mm | 715 mm | 735 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 97 mm | 98 mm |
| Stack | 612 mm | 617 mm | 621 mm | 626 mm | 631 mm |
| Reach | 375 mm | 394 mm | 413 mm | 431 mm | 450 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1110 mm | 1131 mm | 1151 mm | 1172 mm | 1192 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 720 mm | 740 mm | 770 mm | 790 mm | 820 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
SDURO HardSeven 4.0 completes the Haibike E Sduro model. 62 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Sduro e-bikes models from 2020, here.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the most affordable e-bike of this model and has a price of 2123$. On the other hand, Haibike SDURO FullNine 8.0 2020, is the most expensive and costs 5839$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 2653$. If we compare this with the average Trail e-bike cost we notice that the price is 26.84% lower.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
SDURO HardSeven 4.0 weighs 22 kg (48.5 lbs) and is a bit lighter than the average. In conclusion, the average Trail e-bike weighs 7.73% more than SDURO HardSeven 4.0.
SDURO HardSeven 4.0 components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels size
When leaving the production line, the SDURO HardSeven 4.0 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike SDURO HardSeven 4.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
