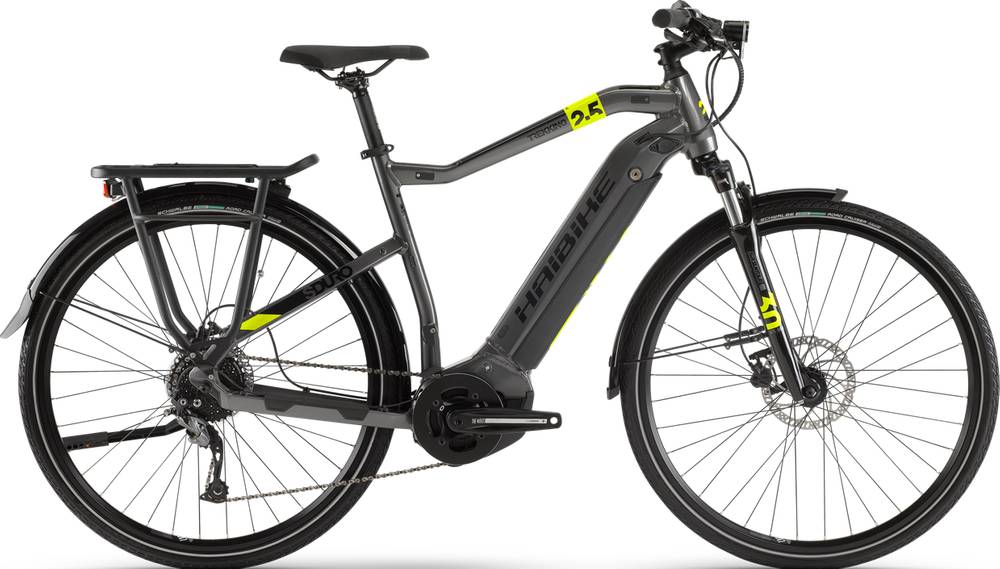

Haibike SDURO Trekking 2.5 2020
2020 E-bike
Estimate price |
2,907$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, InTube, 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO Cross/Trekking, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, NEX E25-LO, Lockout, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Alivio M4000
Shift Levers
Shimano, Alivio M4000, Rapidfire, 9 speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Ryde, Zac421, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Road Cruiser, 42-622, 28" x 1.60"
Brakes
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar +, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-SE System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 400 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.572 mm | 1.584 mm | 1.595 mm | 1.602 mm |
| Front Center | 643 mm | 659 mm | 675 mm | 690 mm | 706 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 82 mm | 81 mm | 81 mm | 81 mm | 82 mm |
| Stack | 623 mm | 632 mm | 651 mm | 670 mm | 689 mm |
| Reach | 390 mm | 402 mm | 411 mm | 420 mm | 430 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1106 mm | 1122 mm | 1138 mm | 1154 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 810 mm | 830 mm | 860 mm | 890 mm | 920 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
SDURO Trekking 2.5 belongs to the Haibike E Sduro model. 62 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Haibike SDURO HardSeven 1.0 2020 has a starting price of 2123$. Haibike SDURO FullNine 8.0 2020 on the other hand is the most expensive at 5839$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 2653$. In conclusion, this e-bike price is 6.98% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.9 kg (54.9 lbs), Haibike e-bike is slightly heavier than average. In other words, this model is 4.67% heavier than the average Hybrid e-bike.
Overview of components
Fork
Haibike SDURO Trekking 2.5 2020 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
The SDURO Trekking 2.5 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
