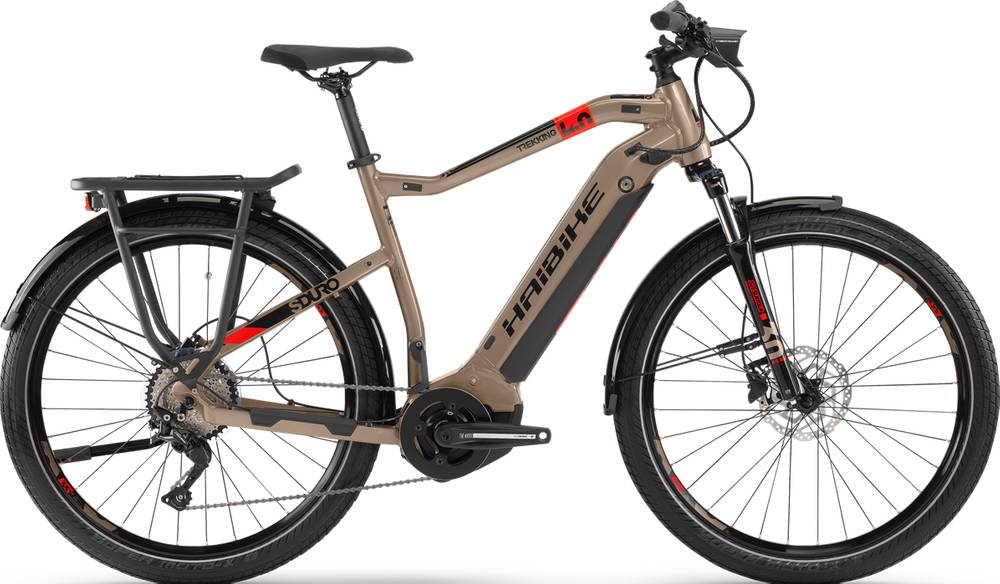

Haibike SDURO Trekking 4.0 2020
2020 E-bike
Estimate price |
3,210$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 65mm -
Fork SunTour XCM HLO
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha, InTube, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO Cross/Trekking, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Suspension Fork
SR Suntour, XCM ATB HLO, Lockout, Steel spring, Travel= 65 mm, Steel steerer tube 1 1/8", Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Deore M6000
Shift Levers
Shimano, Deore M6000, Rapidfire, 10 speed
Cassette
Shimano, HG500, 11 - 42 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, X10
Chain Guide
Nylon directmount
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.40"
Brakes
Brake Levers
Shimano, MT200
Cockpit
Stem
Haibike Components, The Stem +, A-head
Handlebar
Haibike Components, TheBar +, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, ball bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, The Seatpost +, Patent, 31.6 mm, Aluminium
Motor & Battery
Motor
Yamaha, PW-ST System, 250 W, 70 Nm, 25 km/h
Battery
Yamaha, InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.597 mm | 1.572 mm | 1.584 mm | 1.595 mm | 1.602 mm |
| Front Center | 643 mm | 659 mm | 675 mm | 690 mm | 706 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 75 mm | 74 mm | 74 mm | 74 mm | 75 mm |
| Stack | 623 mm | 632 mm | 651 mm | 670 mm | 689 mm |
| Reach | 390 mm | 402 mm | 411 mm | 420 mm | 430 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1106 mm | 1122 mm | 1138 mm | 1154 mm | 1170 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 810 mm | 830 mm | 860 mm | 890 mm | 920 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
SDURO Trekking 4.0 completes the Haibike E Sduro model. Haibike launched 62 e-bikes of this model so far. Take a sneak peek at all Haibike E Sduro e-bikes models from 2020, by clicking here.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the cheapest e-bike model and costs 2123$. Haibike SDURO FullNine 8.0 2020 is the most expensive one and costs 5839$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 2972$. Comparing this to the average Hybrid e-bike price, we see that the price is 19.84% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 26.4 kg (58.2 lbs), Haibike e-bike is considerably heavier than average. In conclusion, the average Hybrid e-bike weighs 10.97% less than SDURO Trekking 4.0.
SDURO Trekking 4.0 components
Fork
The SDURO Trekking 4.0 comes factory-installed with the SunTour XCM HLO fork. This has a travel range of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
SDURO Trekking 4.0 has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Haibike SDURO Trekking 4.0 2020, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SDURO Trekking 4.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
